PROFI-5045
~ NEW ~
PROFIBUS Remote I/O Module

The PROFI-5045 is specially designed for the slave device of PROFIBUS DP protocol. It supports up to 24-channel isolated digital output with 3750Vrms field to logic isolation. Users can easily to choose and configure it by using the GSD file in any PROFIBUS Configurator.

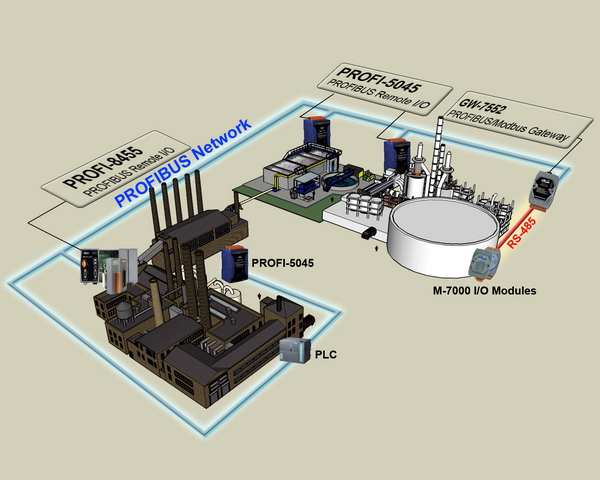

Industrial Automation
Factory Automation
Process Automation
Etc…

back

Protocol & Hierarchy	DP-V0 Slave
Supports Transmission Rate (kbps)	9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, 6000, 12000
Transmission Rate Setting	detected automatically
Address Setting	0~99 set by rotary switches
Indicators	PWR and RUN LEDs
I/O modules Configuration	Configured by GSD file
Network Isolation Protection	High Speed iCoupler
DC Isolation Protection	3000 VDC on PROFIBUS side
4KV ESD Protection	Contact for each terminal

back

Hardware
ESD Protection	4 kV class A
PROFIBUS Interface
Controller	Profichip VPCLS2
Transceiver	ADI ADM2486
Connector	9-pin female D-Sub
Baud Rate (bps)	9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M
Transmission Distance (m)	Depend on baud rate (for example, max. 1200 m at 9.6 kbps )
Isolation	3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic
Protocol	DP-V0
LED
Round LED	PWR LED, RUN LED
Power
Power supply	Unregulated +10 ~ +40 VDC
Protection	Reverse polarity protection, Over-voltage brown-out protection
Power Consumption	1 W
I/O
Digital Output	24 Channels (Sink), Isolated with common ground Load Voltage: +10 ~ +40V Maximum Load Current: 650mA w/ Short-Circuit Protection Isolation Voltage: 3750Vrms
Mechanism
Installation	DIN-Rail
Dimensions	91 mm x 128 mm x 52 mm (W x L x H)
Environment
Operating Temp.	-25 ~ 75℃
Storage Temp.	-30 ~ 85℃
Humidity	5 ~ 95% RH, non-condensing

back

PROFI-5045 CR

PROFIBUS Remote I/O Module (24-channel Isolated Digital Output)
