PROFI-5018
~ Available soon ~
PROFIBUS Remote I/O Module |
|
|
|
|
|
|
|
| |
|
|
| |
The PROFI-5018 is specially designed for the slave device of PROFIBUS DP protocol. It supports up to 10-channel Thermocouple Input Module with High Voltage Protection. Users can easily to choose and configure it by using the GSD file in any PROFIBUS Configurator.
|
|
|
|
| |
|
| |
|
| |
-

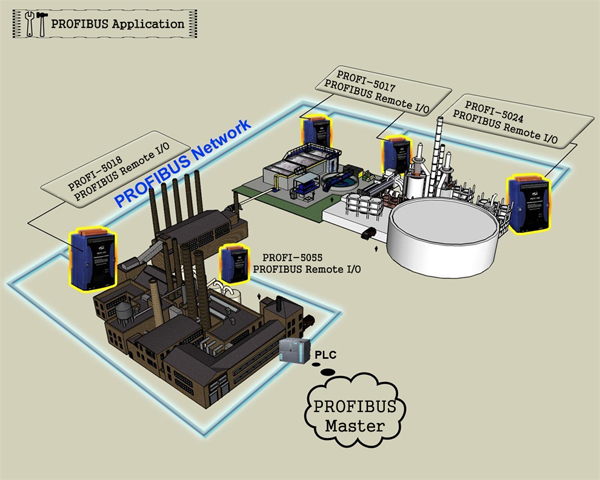

Industrial Automation
-
Factory Automation
-
Process Automation
-
Etc¡K
|
|
| |
|
|
|
| |
|
|
| |
|
|
| |
| Protocol & Hierarchy |
DP-V0 Slave |
| Supports PROFIBUS Transmission Rate (kbps) |
9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, 6000, 12000 |
| Transmission Rate Setting |
detected automatically |
| Address Setting |
Address 0~126 set by rotary switches or SSA Telegram |
| Indicators |
PWR LED, RUN LED, ERR LED |
| I/O modules Configuration |
Configured by GSD file |
| Network Isolation Protection |
High Speed iCoupler |
| 4KV ESD Protection |
Contact for each terminal |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
| Thermocouple Type |
Temperature Range ¢XC |
| TYPE J |
-210 ¢XC ~ +1200 ¢XC |
| TYPE K |
-270 ¢XC ~ 1372 ¢XC |
| TYPE T |
-270 ¢XC ~ 400 ¢XC |
| TYPE E |
-270 ¢XC ~ 1000 ¢XC |
| TYPE R |
-50 ¢XC ~ 1765 ¢XC |
| TYPE S |
-50 ¢XC ~ 1765 ¢XC |
| TYPE B |
0 ¢XC ~ 1820 ¢XC |
| TYPE N |
-270 ¢XC ~ 1300 ¢XC |
| TYPE C |
0 ¢XC ~ 2320 ¢XC |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
| Hardware |
| ESD Protection |
4 kV class B |
| PROFIBUS Interface |
| Controller |
Siemens SPC3 |
| Transceiver |
ADI ADM2486 |
| Connector |
9-pin female D-Sub |
| Baud Rate (bps) |
9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M |
| Transmission Distance (m) |
Depend on baud rate (for example, max. 1200 m at 9.6 kbps ) |
| Isolation |
3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic |
| Protocol |
DP-V0 |
| LED |
| Round LED |
PWR LED, RUN LED, ERR LED |
| POWER |
| Power supply |
Unregulated +10 ~ +40 VDC |
| Protection |
Reverse polarity protection, Over-voltage brown-out protection |
| Power Consumption |
3.5 W |
| Analog Input |
| Input Type |
¡Ó15 mV, ¡Ó50 mV, ¡Ó100 mV, ¡Ó500 mV, ¡Ó1 V, ¡Ó2.5 V, ¡Ó5 V, ¡Ó10 V
+/-20mA, 0~20mA, 4~20mA (Requires Optional External 125 Ohm Resistor)
Thermocouple (J, K, T, E, R, S, B, N, C) |
| Resolution |
16 bit |
| Accuracy |
±0.1% FSR |
| Sampling Rate |
10 Hz (Total) |
| Mechanism |
| Installation |
DIN-Rail |
| Dimensions |
91 mm x 130 mm x 52 mm (W x L x H) |
| Environment |
| Operating Temp. |
-25 ~ 75¢J |
| Storage Temp. |
-30 ~ 85¢J |
| Humidity |
5 ~ 95% RH, non-condensing |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
PROFI-5018/S CR
|
PROFIBUS Remote I/O Module (10-Channel Thermocouple input) (ROHS)
include PROFI-5018 module and a DB-1820 daughter board
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
| CA-252518D |
25pin Male-Female D-Sub 1.8m flat cable ( 180°) |
| CD-2518D |
25F-25M 1.8m cable with DIN-Rail Mount of DB-1820 |
|
|
| |
|
|
| |
|
|
|
|
