PROFINET I/O Module






The PFN-2042 is specially designed for PROFINET IO device. It has 16-channel isolated digital outputs, and is suited in various industrial applications. You can access and configure it by using the GSDML file in any PROFINET Engineering tool.






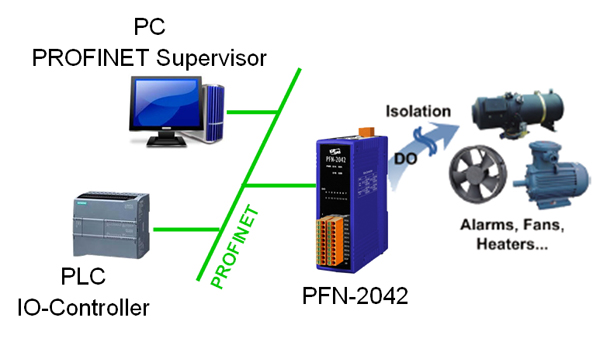

  • Industrial Automation
  • Factory Automation
  • Process Automation
  • Etc¡K





  • Protocol: PROFINET IO Device
  • PROFINET Conformance Class B and RT Class 1
  • Cyclic Time: 1ms (min)
  • Generic GSDML File Provided (Version 2.25)
  • Do load voltage: +3.5 ~ +50 VDC
  • Do load current: 700 mA/Channel (max.)
  • Provide short-circuit protection on DO channels
  • 4 kV Contact ESD protection for any terminal
  • Wide range of power input (+10 ~ +30 VDC) and operating temperature (-25 ~ +75°C)

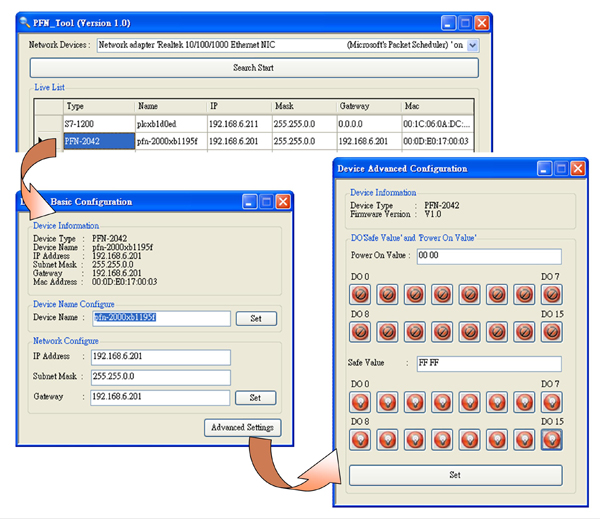

ICP DAS provides the PFN_Tool configuration utility to configure devices.

  • Provide device search function
  • Show firmware version
  • Support network parameters configuration
  • Settings for power-on value and safe value








Hardware
CPU 32-bit CPU Core
RAM/Flash/EEPROM 32 MB / 4 MB / 8 KB
Watchdog CPU built-in
ESD Protection 4 kV class B
PROFINET Interface
Protocol PROFINET IO Device
Conformance Classes Class B
Services RTC, RTA, CL-RPC, DCP, LLDP, I&M
Cycle Time 1 ms (min)
Ethernet Interface
Controller 10/100Base-TX Ethernet Controller (Auto-negotiating, Auto_MDIX)
Connector RJ-45 x 2 (LED indicators) , Integrated 2-Port Switch
Services ICMP, IGMP, ARP, DHCP, TELNET, TFTP, SNMP, VLAN Priority Tagging
Digital Output
Channels 16, Sink, NMOS
Load voltage +3.5 ~ +50 VDC
Load current 700 mA/Channel (max.)
LED
Round LED PWR LED, S1A LED, S1B LED, S2A LED, S2B LED
Power
Power supply Unregulated +10 ~ +30 VDC
Protection Power reverse polarity protection, Over-voltage brown-out protection
Power Consumption 4 W
Mechanism
Installation DIN-Rail
Dimensions 33 mm x 107 mm x 126 mm (W x L x H)
Environment
Operating Temp. -25 ~ 75 ¢J
Storage Temp. -30 ~ 80 ¢J
Humidity 10 ~ 90% RH, non-condensing







PFN-2042 CR
PROFINET I/O Module (Isolated 16-ch DO) (RoHS)
