PDS-742-IP67 Programmable Device Server is a special design for the toughest applications. It can be directly mounted to any machine or convenient flat surface. The rugged packaging and IP67 connectors are rated to protect against water, oil, dust, vibration, and much more.
BS EN 60529:1992 defines the degrees of protection provided by enclosures classified under the International Protection (IP) Code and the test conditions are required to meet these classifications. |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
- Networkable serial devices
- "Virtual COM" extend COM ports
- Supports Virtual COM on Windows NT 4.0, 2000/XP/2003 and Vista32
- Powerful programmable device server
- Watchdog timer suitable for use in harsh environments
- 10/100Base-TX Ethernet Controller (Auto-negotiating, auto MDI/MDI-X, LED indicator)
- Power reverse polarity protection
- Serial port +/-4 kV ESD protection circuit
- Self-tuner ASIC controller on RS-485 port
- Enables download of programs from PC
- RoHS compliant with No Halogen
- Built-in MiniOS7 of ICP DAS
- ODM Wanted
- Plastic casing with IP67
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
- Factory Automation
- Building Automation
- Home Automation
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
| CPU |
| CPU |
80186-80 MHz or compatible |
| SRAM |
512 K bytes |
| Flash Memory |
Flash ROM: 512 K Bytes ; Erase unit is one sector (64 K bytes) ;
100,000 erase/write cycles |
| EEPROM |
16 K byte;
Data retention: 40 years; 1,000,000 erase/write cycles. |
| Built-in Watchdog Timer |
Yes |

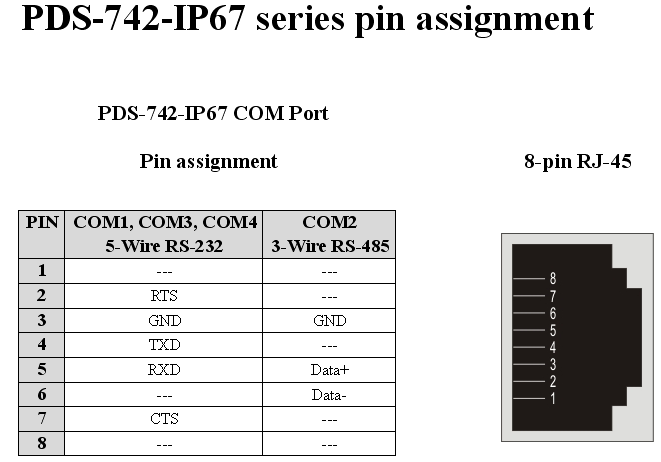

| Communication Interface |
| COM1 |
RS-232(TXD, RXD, RTS, CTS, GND); None-isolation |
| COM2 |
RS-485(D2+, D2-); 2500 Vrms Isolation |
| COM3 |
RS-232(TXD, RXD, RTS, CTS, GND); None-isolation |
| COM4 |
RS-232(TXD, RXD, RTS, CTS, GND); None-isolation |
| Ethernet Port |
10/100 M Base-Tx Ethernet Controller
(Auto-negotiating, auto MDI/MDI-X, LED indicator) |
| COM Port Formats |
| Data Bit |
7, 8: for COM1 and COM2
5, 6, 7, 8: for COM3 ~ COM4 |
| Parity |
None, Even, Odd, Mark, Space |
| Stop Bit |
1: for COM1, COM2
1, 2: for COM3 ~ COM4 |
| Baud Rate |
115200 bps Max. |
| Mounting |
| Din Rail Mount |
PDS-742-IP67 |
| Wall Mount |
PDS-742-IP67/DIN CR |
| LED Display |
| System LED Indicator |
Yes |
| Mechanical |
| Case |
Plastic |
| Flammability |
Fire Retardant Materials (UL94-V0 Level) |

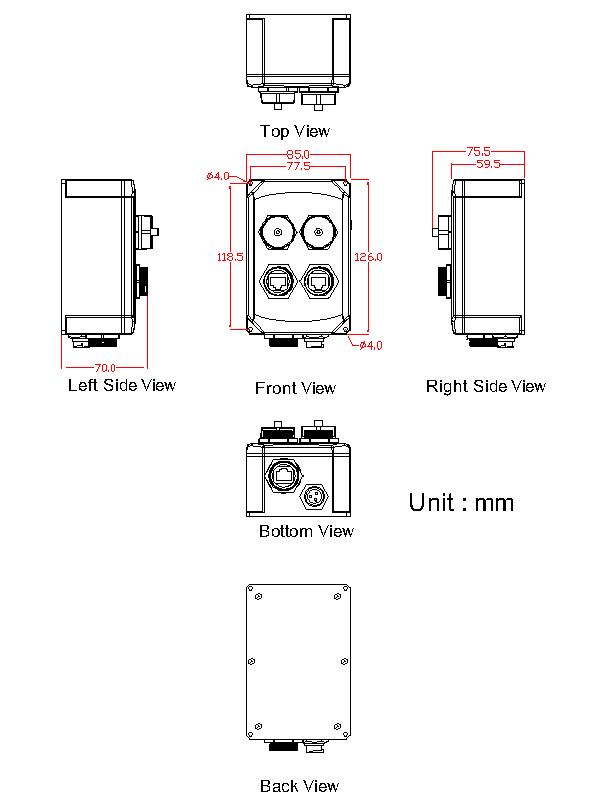

| Dimension ( W x L x H ) |
85 mm x 126 mm x 75.5 mm |
| Operating Environment |
| Operating Temperature |
-10 ~ +60 ¢XC (Protection rating IP67) |
| -40 ~ +80 ¢XC (Protection rating IP66) |
| Storage Temperature |
-10 ~ +60 ¢XC (Protection rating IP67) |
| -40 ~ +85 ¢XC (Protection rating IP66) |
| Ambient Relative Humidity |
100% RH for Operating Temperature -10 ¢XC ~ +60 ¢XC |
| 10% ~ 90% non-condensing for Operating Temperature -40 ~ +80 ¢XC |
| Power |
| Protection |
Power Reverse Polarity Protection |
| Required Supply Voltage |
+12 ~ +48 VDC (non-regulated) |
| Power Consumption |
2 W for PDS-742-IP67 |
|
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
| PDS-742-IP67 CR |
Programmable Device Server with three RS-232, one RS-485 ports and IP67 casing. (RoHS) |
| PDS-742-IP67/DIN CR |
Programmable Device Server with three RS-232, one RS-485 ports and IP67 casing. (RoHS)
(With DIN-Rail mounting) |
|
|
|
|
| |
|
|
| |
|
|
| |
| GPSU06U-6 |
24 V/0.25 A(Max) Power Supply(100 ~ 240 VAC Input) |
| MDR-20-24 CR |
24 V/1 A(Max) Industrial DIN Rail Power Supply(Universal AC Input, RoHS) |
| NS-205 CR |
Unmanaged 5-Port Industrial Ethernet Switch |
|
|
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
|
|
| |
|
|
|
|
|
|
