iVIEW-100-ISaGRAF

~Available soon~

iVIEW-100-ISaGRAF

iVIEW-100-ISaGRAF ISaGRAF Embedded Controller

128X64 Dot, Green STN LCD Display The iVIEW-100-ISaGRAF can be used with its LCD to display many useful message & pictures. And, we offer a lot of ISaGRAF function blocks to help you to display numbers, texts, lines.... We also offer function blocks to let you design multi-pages program. You can show your controllers message on several pages.
Full Numeric Keypad Keypad is designed to input characters and numbers for iVIEW-100-ISaGRAF. You can design input-parameters into you program. So your can change your process without restarting controllers.

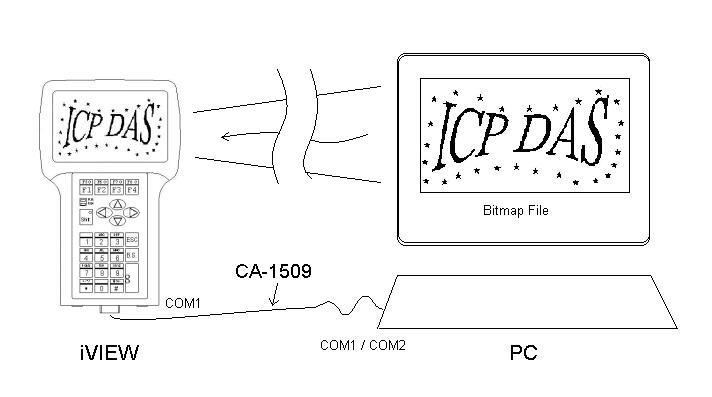

Bitmap Background You can set your bitmap files as background of the lcd display. You can use our “iVIEW Background Downloader” utility program to download your bitmap files to iVIEW. Then, you can use function block in ISaGRAF to set these pictures you just downloaded as the background in your iVIEW lcd.
Communication The iVIEW-100-ISaGRAF provides RS485 solutions. It contains 2 communication ports, COM1:RS232, COM2:RS232/RS485. These different communication ports can provide different kinds of usage include RS485 networking, remote I/O extension, linking with HMI / MMI, program download / upload , and debugging.
Modbus Master COM1 is the Modbus slave port. PC and HMI are the Modbus master and talk with the Modbus slave port of COM1 of the controllers. Moreover, iVIEW-100-ISaGRAF can also provide Modbus Master protocol on COM2 of the controllers, in order to talk to devices with Modbus slave protocol, such as PLC, RTU, power meter…
RS485 Network One PC or HMI can link to one I-7520 converter to talk to a maximun of 255 iVIEW-100-ISaGRAF controllers on a RS485 network. The iVIEW-100-ISaGRAF uses COM2:RS485 as its RS485 network port. Each controller on the same RS485 network should set its unique NET-ID to make networking smooth and error-free. The max. distance can be up to 1200 meters with the terminal resistors.
I/O Expansion Bus and Expansion board The iViEW-100-ISaGRAF supports an I/O expansion bus. The I/O expansion bus can be used to implement various I/O functions such as D/I, D/O, A/D, D/A, Timer/Counter, UART, flash memory, battery backup SRAM, AsicKey & other I/O functions. The integrated modular design of the expansion board line allows a fast, easy, and flexible way of upgrading our controller’s capabilities. Each I/O expansion bus supports one expansion board only. The user can choose our I/O expansion board or design their own I/O expansion boards.
Remote IO Extension Remote IO modules are useful for some distributed applications. The iViEW-100-ISaGRAF can integrate with the I-7000 and I-87xx modules by linking its COM2:RS485 ports to each remote I/O module. A max. number of 64 remote I/O modules can be linked to one controller and max. number of 16 I/O channels for some remote I/O modules.
One Programmable Buzzer You can make alarm noise and change it's period and frequency. With different alarm noises, you can notice the user what the situation it is and do some corresponsive responses.

back

Embedded CPU, 80188, 40M Hz

512K SRAM & 512K Flash ROM

Built-in RTC & NVSRAM & EEPROM

Built-in 2 channels of COM port

COM driver support interrupt & 1K QUEUE input buffer

Built-in watchdog timer for harsh environment

Built-in power protection circuit

Built-in RS-485 network protection circuit

Program download from PC

MiniOS7 inside

Year 2000-compliance

RTC leap year compensation from 1980 to 2079

BIOS support RTC time & date

MiniOS7 support RTC time & date

64-bit Hardware Unique Serial Number

Built-in LCD display

LED type yellow-green backlight

Full numeric membrane keypad

4 digital input channels and 2 relay output cahnnels (Can be jumper selected to 4 open collector output channels)

One buzzer inside

back

System

Module: Iview100 Handheld Controler

CPU:80188,40M Hz

SRAM:512K bytes

FLASH:512K bytes

COM port:COM 1,2

Built-in EEPROM

Support I/O, Expansion Bus

Program download with COM 1

Software

Supports IEC61131-3: ISaGRAF

Programming languages: LD, FBD, SFC, ST, IL & FC

Real Time Clock

Year-2000 compliance

Seconds, minutes, hours, date of the month

Month, year, valid up form 1980 to 2079

NVSRAM : 31bytes, data valid up to 10years

Lithium battery for RTC & NVSRAM

EEPROM

2048 bytes

Data retension >100years

1000000 erase/write cycles

Flash Memory

512K bytes

64K bytes are used by MiniOS7

At least 64K bytes are used by MiniOS7

Others can be use to store data.(128K bytes max.)

Erase unit is one sector(64K bytes)

100,000 erase/write cycles

COM1

RS-232

MaxSpeed:115200

COM2

RS-232orRS-485

RS-485 : self-tuner

MaxSpeed:115200

Display

LCD

128*64 dots

VA:72*40mm

STN,YellowGreen

Backlight:LEDYellowGreen

back

One iViEW-100-ISaGRAF handheld Embedded Controller

One download cable(CA-1509) and one Mini-DIN 9-pin cable(CA-M910)

One piece of companion CD for software

One iVIEW-100-ISaGRAF Embedded Controller User’s Manual

back

iVIEW-100-ISaGRAF	ISaGRAF Handheld Controller with 512k flash ,512k SRAM

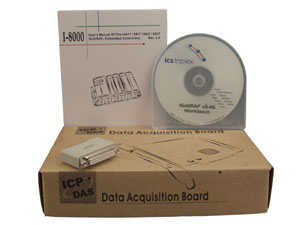

ISaGRAF-256-E	ISaGRAF Ver.3 Workbench Software, Up to 256 I/O Tags + one ISaGRAF Book-E

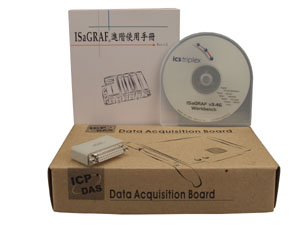

ISaGRAF-256-C	ISaGRAF Ver.3 Workbench Software, Up to 256 I/O Tags + one ISaGRAF Book-C
ISaGRAF Book-E	ISaGRAF Application Book (English)
ISaGRAF Book-C	ISaGRAF Application Book (Chinese)
ISaGRAF-32	ISaGRAF Ver. 3 Workbench Software, Up to 32 I/O Tags . ReadMe Note: ISaGRAF-32 can not upgrade to become ISaGRAF-256
ISaGRAF-32-E	ISaGRAF Ver. 3 Workbench Software, Up to 32 I/O Tags + one ISaGRAF Book-E (book is about 0.7 Kg weight) ReadMe Note: ISaGRAF-32 can not upgrade to become ISaGRAF-256
ISaGRAF-32-C	ISaGRAF Ver. 3 Workbench Software, Up to 32 I/O Tags + one ISaGRAF Book-C (book is about 1 Kg weight) ReadMe Note: ISaGRAF-32 can not upgrade to become ISaGRAF-256
