ZB-2570P Hardware

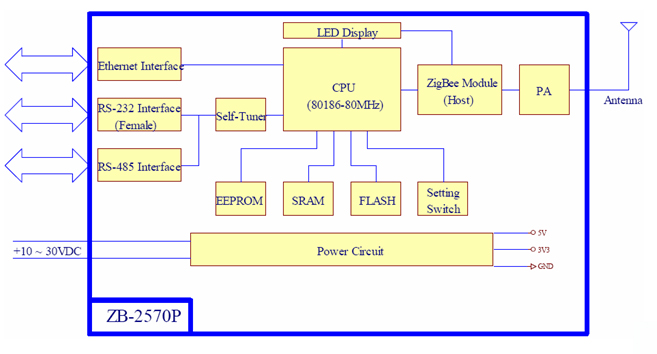

Internal I/O Structure

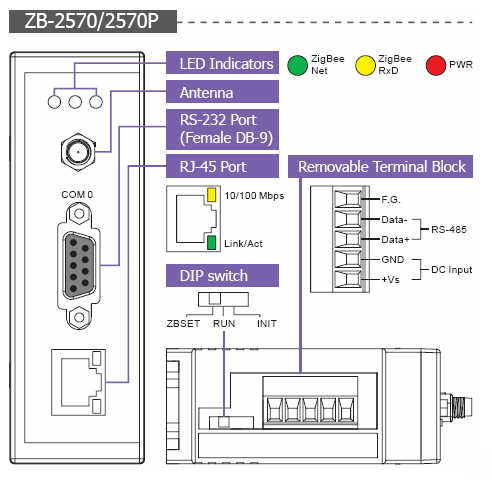

PIN Assignment

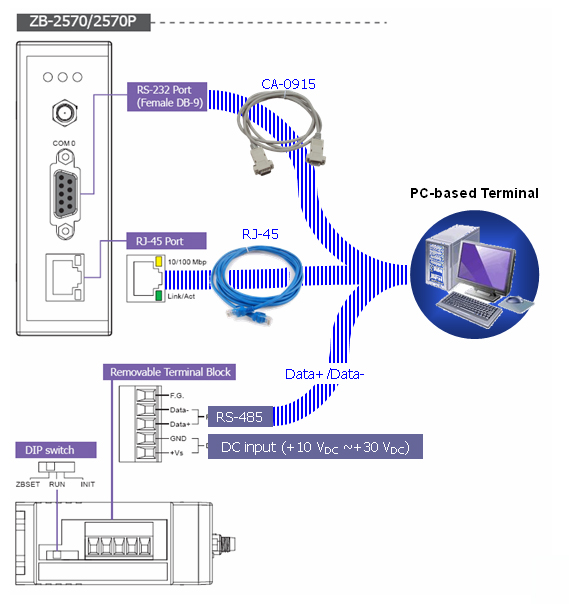

Wire Connection

1. Configuring the serial port and ethernet hardware

2. Installing the Hardware

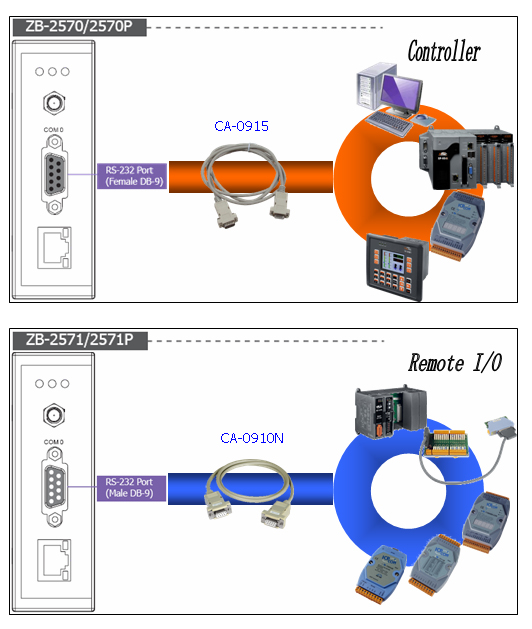

    RS-232:

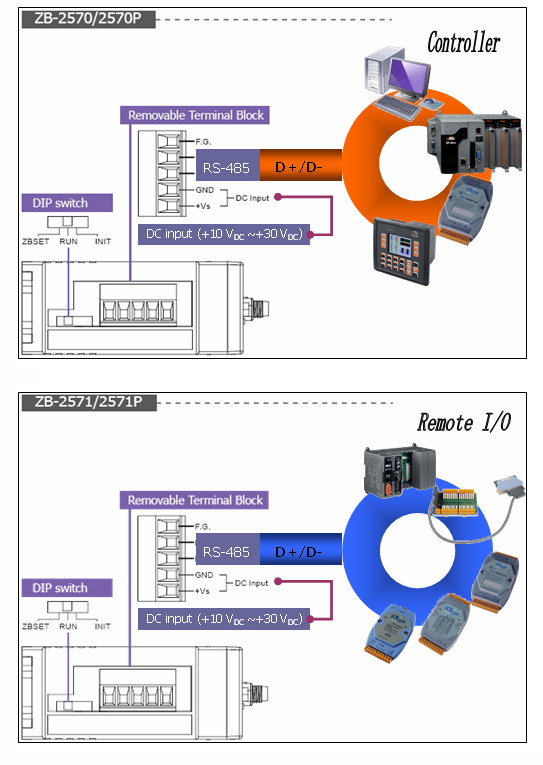

RS-485:

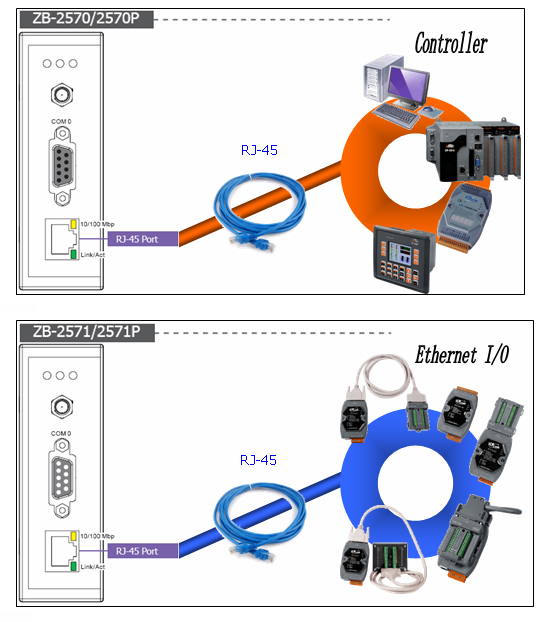

RJ-45:
