The P-380 Outdoor Access Point & Router is ideal for rough environments and outdoor applications. It can be configured as an inter-building wireless bridge or router as well as an access point for wireless clients.

Rounting

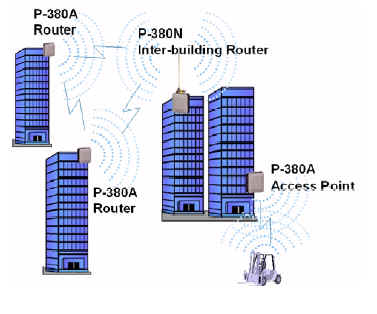

Connecting two buildings via a wireless link is the job of a wireless router. A router can connect different networks (subnets) and minimizes the data transfer over the wireless link. One P-380 can connect up to eight different networks in a point-to-multipoint configuration.

Bridging
When protocols other than TCP/IP need to be transmitted, the P-380 can be configured as a layer 2 bridge. With no license required for wireless bridges in the 2.4 GHz band, in almost every part of the world, the P-380 can be a cost effective alternative to leased-lines for line-of-sight connections.

Access Point
The P-380 can also be a Wi-Fi access point for environmentally challenged locations like industrial plants, or when an outdoor installation can better serve the application. The weatherproof housing has a NEMA classification of IP66, and incorporates a temperature control system to support operation from -20o to +65oC.

Install and forget
A bright LED display of signal strength enables simple installation optimization. A Power over Ethernet client, the P-380 is supplied data and power over one cable, allowing remote power resets, thereby eliminating the need for any on-site-maintenance.

Long range
The P-380 can be ordered with an integrated high-gain antenna (P-380A), or with a connector (reverse N) for an external antenna (P-380N). With the integrated 10dBi directional antenna (40o beam width) two P-380A routers can connect at a distance of up to five kilometers.

Remote Management
The P-380 supports many different network management interfaces, such as SNMP, Telenet or HTTPS. It has an integrated site survey feature, provides performance measurement data and firmware upgrades can be done remotely.

IEEE 802.11b and Wi-Fi compliant WLAN Access Point Mode, Bridge Mode or Station Mode (configurable) Weather proof and rugged housing Operating temperature range from –20°C to +65°C Integrated or external antennas WEP 64/128-bit support, Layer 2 isolation Remote management Remote software upgrades Power-over-Ethernet support Wall or mast mount .

• Features：
  IEEE 802.11b Access Point, Router, Bridge
  Wi-Fi compliant
  40/128-bit WEP security
  Layer 2 isolation for security
  802.1x/EAPoLAN/with MD-5/TLS/TTLS/SIM support(in preparation)
  IAPP roaming (in preparation)
  RADIUS AAA client with EAP support (in preparation)
  Remote management via HTTPs, Telnet, SNMP (MIB II, Ethernet MIB, Bridge MIB, private MIB
  IP routing with NAT, port forwarding and firewall filters
  Remote software upgrade via HTTP
  Integrated Site Survey, Loop-back test
  DHCP server, DHCP client
  Access Control List (MAC address filter)
  Programmable output power
• Interface：
  10/100 Base-T, RJ-45 Power-over-Ethernet port for connection to Power-Switch
• Wireless：
  Standard: IEEE 802.11b DSSS (2.4GHz ISM radio banc)
  Data Rate: 11Mbps, 5.5Mbps, 1Mbps (Auto scaling)
  Transmit Power: 29 dBm (typical)
  Sensitivity

  Data Rate Sensitivity	Sensitivity	Modulation
  11Mbps	-82dBm	CCK
  5.5Mbps	-84dBm	CCK
  1Mbps	-90dBm	DBPSK


  Integrated Antenna: integrated 10dBi directional antenna, 45° beam width vertical and horizontal, vertical polarization
• Physical Specification：
  Dimension: 180 x 160 x 58mm (7.1 x 6.3 x 2.3in)
  Weight: 1100g (includes mounting kit)
• Environment Specification：
  Temperature: -20°C to 65°C
  Humidity: up to 95%
• Power Supply：
  Type: external AC/DC converter 100/230V to 5V DC/1.5A, 3W max.
  Power-over-Ethernet: IIEEE 802.3af compliant
• Mechanical Specification：
  Ruggedized and flame-resistant plastic housing, wall or mast mount
• LEDS：
  3 + 10 LEDS: RF activity, LAN activity, Power, 10 LED link quality display
• Management：
  Interfaces: HTTPs, Telnet, SSH, SNMP (MIB II, Ethernet MIB, Bridge MIB, private MIB), Terminal
  Software Update: Remote Software Update via HTTPs
  Test: Integrated site survey, Loop-back test
  Reset: Remote reset / Manufacturing reset
• Warranty：
  2 year (limited)
• Package Content：
  P-380A Outdoor Access Point & Router
  Power supply and cables (single-port PoE Host)
  CD-ROM with software and documentation
  Mounting kit
