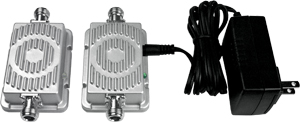

ANF-2401
ANF-2401
1 W amplifier







    Designed for extending the range of 2.4 GHz wireless radio devices, the Smart-Amp is particularly effective when used with Direct Sequence or Frequency Hopping Spread Spectrum radio modems. The unit provides transmit power amplification and receives signal gain. Full output power of 1W is achieved with only 4mW input to the amplifier. Above 4 mW input, the smartamp attenuates the input signal power and maintains the output power typically at 1W. Substantial discounts available for OEMs and large volume purchases.







 Operating Range:  2400-2500 MHz
 Operating Mode:  TDD
 Lightning Protection:  Direct DC ground at antenna
 DC Surge Protection:  600 Watts TVS @ 9 VDC






 Operating Temperature:  -40 to +70 degree C
 Power:  1.2 A @ 9 VDC
 Dimensions
 Amplifier:  4.7¡¨ L X 3.5¡¨ W X 1.5¡¨H
 DC Injector:  3.5¡¨ L X 3¡¨ W X 1.18¡¨ H
 Weight
 Amplifier:  0.9 lb
 DC injector:  0.4 lb
 RF Connector:  N, Female
 Smart Function:  Yes






 Transmit Gain:  up to 24 dB
 Transmit input power:  1 mW min
   200 mW max






 Receive Gain:  15 dB typical
 Frequency Response:  +/- 1 dB
 Noise Figure:  3.5 dB






 ANF-2401  1 W amplifier
