Signal Conditioning Selection Guide
Signal Conditioning Modules Contents
Model
SG-3011
SG-3013
SG-3016
SG-3071
SG-3081
Input Mode
Thermocouple
RTD (Pt-100)
RTD (Pt-1000
Strain Gauge
DC Voltage
DC Current
Input Type
J, K, T, E, R, S, B,N, C, L, M
0~200¢XC
£\=0.00392
2 or 3 Wires
¡Ó10mV, ¡Ó20mV,
¡Ó30mV, 50mV,
¡Ó100mV
Bipolar: ¡Ó5V, ¡Ó10V
Unipolar: 0~10V
0~20 mA
4~20 mA
Voltage output (Bipolar)
-
¡Ó5V, ¡Ó10V
¡Ó5V, ¡Ó10V
¡Ó5V, ¡Ó10V
-
Voltage output (Unipolar)
0~10V
0~10V
0~10V, 0~5V
0~10V
0~10V
Excitation voltage output
-
-
1~10Vdc
(20 mA max.)
-
-
Current Output
0~20 mA
0~20 mA
4~20 mA
0~20 mA
0~20 mA
4~20 mA
0~20 mA
4~20 mA
Isolation
3000Vdc
3000Vdc
3000Vdc
3000Vdc
3000Vdc
Power Supply
10~30Vdc
10~30Vdc
10~30Vdc
10~30Vdc
10~30Vdc
Dimensions (mm)
113 x 70.5 x 24.5
113 x 70.5 x 24.5
113 x 70.5 x 24.5
113 x 70.5 x 24.5
113 x 70.5 x 24.5
Weight (g)
-
97
103
94
96
DIN-rail mounting
Yes
Yes
Yes
Yes
Yes
back

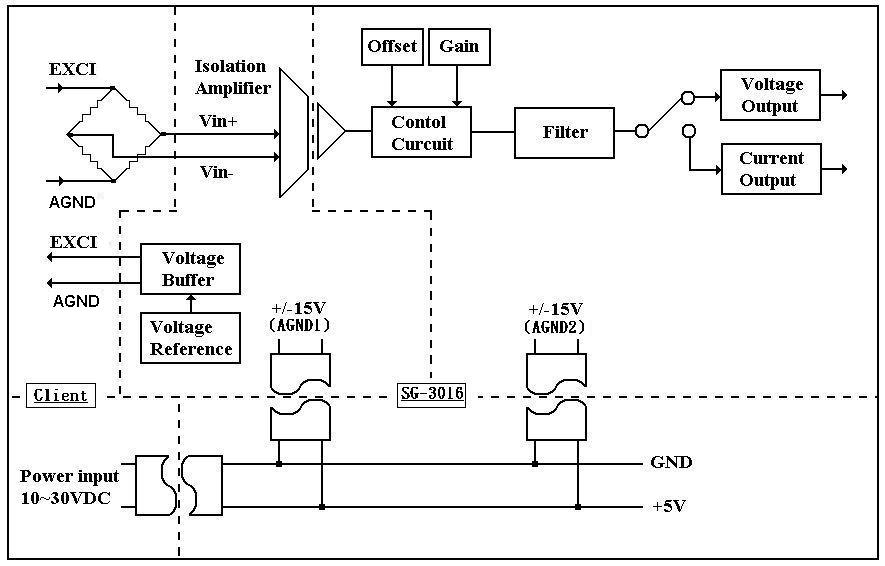

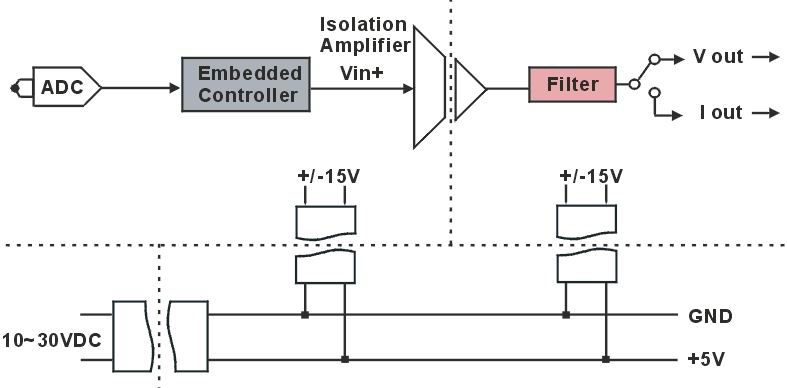

Block Diagram
SG-3011
SG-3013
SG-3016
SG-3071
SG-3081
PW-3090
