DB-12SSR
12-channel Solid State Relay Output Board |
|
|
|
|
|
| |
|
|
| |
|
|
| |
The DB-12SSR has 12channels of optically isolated SSR(Solid
State Relay) , and OPTO-22 compatible connector. |
|
|
| |
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
- 12 SSR (AC)
- One OPTO-22 Compatible Connector and one 37-pin D-sub connector and one 20-pin connector
- Connects directly to OPTO-22 compatible board or any 722,724 series board
- 8-channel max. load 4A/250V AC (per channel)
- LED¡¦s indicated relay status
- Screw terminals for easy field wiring
|
|
|
| |
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
- Solid State Relay (SSR)
- Load voltage : 50~250VAC
- Repetitive Peake OFF voltage : 600V Surge current : 50A
- Max. Load current : 4A
- Max. "Off-state" leakge current : 50mA
- Operate time, max.: 1/2 cycle of voltage sine wave: 1ms
- Power Consumption : +5V @0.4A max
- Dimension : 223.5mm X 135.5mm
- Operating Temperature : 0 -60¢XC
- Storage Temperature : -20-70¢XC
- Humidity : 5% to 90 % noncondensing
|
|
|
| |
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
- On/off control
- Energy management
- Test Automation
- Process Control
|
|
|
| |
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
| DB-12SSR |
12-channel OPTO-22 compatible Solid-State Relay Output Board
Include : CA-5015 (50-pin Flat Cable 1.5m) |
| DB-12SSR/D |
12-channel Solid-State Relay Output Board
Include : CA-3710 (37-pin D-sub Cable 1m) |
| DB-12SSR/DIN |

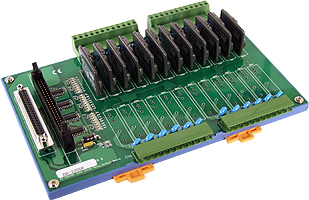

DB-12SSR with DIN-Rail Mounting |
| DB-12SSR/D/DIN |
DB-12SSR/D with DIN-Rail Mounting |
|
|
| |
|
|
|
| |
|
|
| |
|
|
| |
|
|
| |
| CA-5015 |
50-pin Flat Cable 1.5m |
| CA-3710 |
37-pin D-sub connector cable 1.0m |
| CA-3720 |
37-pin D-sub connector cable 2.0m |
|
|
| |
|
|
| |
