PISO-P8R8
Isolated 8 Digital Input and 8 Relay Output Board


Model: PISO-P8R8






The PISO-P8R8 is an 8-channel optically isolated DI and an 8-channel electromechanical relay output board. These DI channels provide 3750 Vrms isolation protection that allows the input signals to be completely floated so as to prevent ground loops and isolate the host computer from damaging voltages. Relays are used where necessary to control a circuit using a low-power signal (with complete electrical isolation between the control and controlled circuits), or where several circuits must be controlled using one signal. The PISO-P8R8 can be used in varous applications, such as controlling the ON/OFF state of external devices, driving external relays or small power switches, activating alarms, contact closure, sensing external voltages or switches, etc. This card supports the 5 V PCI bus with true "Plug & Play" functionality, and contains a single DB-37 connector for easy wiring.

The PISO-P8R8 supports various OS versions, such as Linux, DOS, Windows 98/NT/2000 and 32/64-bit Windows 7/Vista/XP. DLL and Active X control together with various language sample programs based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users quickly and easily develop their own applications.

  back




  • 8 relay output channels
  • 8 optically isolated digital input channels
  • Selectable DC signal input filter
  • AC Signal input with filter
  • Onboard relay output status LED indicators
  • Supports Plug & Play to obtain I/O resources
  • No more manually settings of I/O address and IRQ

  back




  • Factory automation
  • Product test
  • Laboratory automation

  back




  • DOS Lib and TC/BC/MSC sample program (with source codes)
  • DLL and OCX SDK for Windows 95/98/NT/2K.
  • DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/Vista/7.
  • VB/VC/Delphi/BCB/VB.NET/C#.NET sample programs with source codes are included.
  • LabVIEW toolkit for Windows.
  • Driver for Linux.

  back




Model Name PISO-P8R8
Digital Input
Isolation Voltage 5000 Vrms (Photo-couple)
Channels 8
Input Voltage Logic 1:AC/DC 5 ~ 24 V(AC 50 ~ 1 kHz)
Logic 0: AC/DC 0 ~ 1 V
Input Impedance 1.2 K[, 0.5 W
Response Speed Without Filter: 50 kHz (Typical)
With Filter: 0.455 kHz(Typical)
Relay Output
Channels 8
Relay Type SPST N.O.(Form A)
Contact Rating AC: 250 V@1.6 A
DC: 30 V@5 A
Operate Time 6 ms (typical)
Release Time 3 ms (typical)
Insulation Resistance 1000 M[
Life Mechanical: 2,000,000 ops.
Electrical: 100,000 ops.
General
Bus Type 5 V PCI, 32-bit, 33 MHz
Data Bus 8-bit
Card ID No

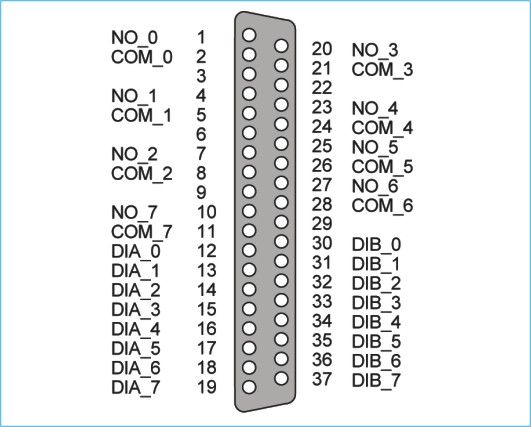

I/O Connector Female DB37 x 1
40-pin box header x 1
Dimensions (L x W x D) 149 mm x 105 mm x 22 mm
Power Consumption 300 mA @ +5 V
Operating Temperature 0 ~ 60 XC
Storage Temperature -20 ~ 70 XC
Humidity 5 ~ 85% RH, non-condensing

  back




PISO-P8R8 8- channel Relay Output with isolated digital input Board.
Includes one CA-4002 D-Sub connector.
PISO-P8R8 CR 8- channel Relay Output with isolated digital input Board (RoHS)
Includes one CA-4002 D-Sub connector.

  back




CA-3710 DB-37 Male-Male D-sub cable 1 M (Cable for Daughter Board(45X))
CA-3710D DB-37 Male-Male D-sub cable 1M (Cable for Daughter Board(180X))
CA-3710DM DB-37 Male-Male Cable, 1.0 M, 180X. (RoHS)
CA-3730DM DB-37 Male-Male Cable, 3.0 M, 180X. (RoHS)
CA-3750DM DB-37 Male-Male Cable, 5.0 M, 180X. (RoHS)
CA-4002 37-pin Male D-sub connector with plastic cover.
DB-37 Directly connect signal to D-sub 37-pin connector
DN-37 DIN Rail Mounting 37-pin Connector
