PISO-A64
64-channel Optically Isolated Open-Collector Digital Output Board (Current Sourcing) |
|
|
|
|
|
|
|
| |
|
|
| |
|
|
| |

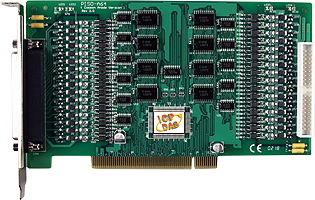

TThe PISO-A64 is designed for use in PCI-Bus computers. The PISO-A64 has 64 channels of optically isolated digital outputs, arranged into four isolated banks. Each digital output offers a PNP transistor and integral suppression diode for inductive load. All isolated output channels are designed into group A, B, C and group D. The power supply for the output port should use the external power. The board interface to field logic signals, eliminating ground-loop problems and isolating the host computer from damaging voltages. The PISO-A64 has one 37-pin D-Sub connector and one 40-pin male header. The 40-pin to DB-37 flat-cable is used to fix with the case. The user can connect the digital signal through the second D-Sub connector. Each D-Sub connector contains 32 output channels. |
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
- 64-channel optically isolated digital output /open collector
- Four isolated bank.
- 3750VDC isolation voltage
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
- Factory automation
- Product test
- Laboratory automation
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
- Toolkit for DOS
- Toolkit for Windows 95/98
- Toolkit for Windows NT
- Toolkit for Windows 2000/XP
- LabVIEW toolkit for Windows
|
- Toolkit for OCX 95/98
- Toolkit for OCX NT
- Toolkit for OCX 2000/XP
- Driver for LINUX
- Driver for DasyLab
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
| Isolation Output |
|
|
|
|
|
60% for PISO-A64 Total Current Output
|
|
|
|
|
| Power |
|
|
| Environmental |
Operating temperature |
0~60¢XC |
Storage temperature |
-20¢XC~70¢XC |
Humidity |
0 to 90% non-condensing |
| Dimensions |
Dimensions |
180mm x 105mm |
|
|
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
| PISO-A64 |
64-channel Optically Isolated Open-Collector Digital Output Board (Current Sourcing)
Includes one CA-4037B cable and two CA-4002 D-Sub connectors. |
|
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
| CA-4002 |
37-pin Male D-sub connector with plastic cover. |
| CA-4737B |
40-pin flat & D-sub 37-pin Female cable 24cm. |
| DB-37 |
Directly connect signal to D-sub 37-pin connector |
DN-37 |
DIN Rail Mounting 37-pin Connector |
|
|
|
|
| |
|
|
|
|
|
| |
