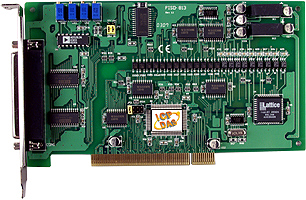

PISO-813
32-Channel Single-Ended Isolated Analog Input Board |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
The PISO-813 is a bus-type isolated 12-bit A/D board for the PCI bus for IBM or compatible PC. It features a 10 kHz data acquisition under DOS and Windows. The PISO-813 provides 32 single-ended analog input. The isolation range of PISO-813 is increased to 3000 V. It is the most cost effective isolated A/D board for the PCI Bus in the world. The PISO-813 has one 37-pin D-sub connector. It can be installed in a 5V PCI slot and can support truly ¡§ Plug & Play ¡§. |
|
|
|
back |
|
|
|
|
|
|
|
|
|
|
|
- PCI bus
- 32 single-ended analog input channels
- 12-bit A/D converter ( ADS 774 or equivalent)
- 3000 Vrms photo-isolation protection
- Analog input range
- Bipolar: +/-10 V,+/-5 V, +/-2.5 V, +/-1.25 V, +/-0.625 V
- Unipolar: 0 ~ 10 V, 0 ~ 5 V, 0 ~ 2.5 V, 0 ~ 1.25 V
- Programmable gain control
- Built-in DC/DC converter with 3000 VDC isolation
- A/D trigger mode: Software Trigger
- A/D data transfer mode : polling
|
|
|
|
back |
|
|
|
|
|
|
|
|
|
|
|
- High speed data acquisition system
- Harsh environment operation
- Signal isolation
|
|
|
|
back |
|
|
|
|
|
|
|
|
|
|
|
- DOS Lib and TC/BC/MSC sample program (source codes included)
- DLL and OCX SDK for Windows 98/NT/2000
- DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/Vista/7
- VB/VC/Delphi/BCB/VB.NET/C#.NET sample programs with source codes
- LabVIEW toolkit for Windows
- Driver for Linux
|
|
|
|
back |
|
|
|
|
|
|
|
|
|
|
|
Analog Input |
Isolation Voltage |
3750 Vrms (Bus Type) |
Channels |
32 single-ended |
A/D Converter |
12-bit, 8 £gs Conversion time |
Sampling Rate |
10 kS/s. max. |
FIFO Size |
N/A |
Over voltage Protection |
Continuous +/-35 Vp-p |
Input Impedance |
10 M£[/6 pF |
Trigger Modes |
Software |
Data Transfer |
Polling |
Accuracy |
0.01 % of FSR ¡Ó1 LSB @ 25 ¢XC, ¡Ó 10 V |
Zero Drift |
+/- 25 ppm/¢XC of FSR |
General |
Bus Type |
5 V PCI, 32-bit, 33 MHz |
Data Bus |
8-bit |
Card ID |
No |
I/O Connector |
Female DB37 x 1 |
Dimensions (L x W x D) |
180 mm x 105 mm x 22 mm |
Power Consumption |
850 mA @ +5 V |
Operating Temperature |
0 ~ 60 ¢XC |
Storage Temperature |
-20 ~ 70 ¢XC |
Humidity |
5 ~ 85% RH, non-condensing |
|
Analog Input Range |
Model |
PISO-813 |
Gain |
1 |
2 |
4 |
8 |
16 |
Bipolar |
+/-10 V
+/-5 V |
+/-5 V
+/- 2.5 V |
+/-2.5 V
+/-1.25 V |
+/-1.25 V
+/-0.625 V |
+/- 0.625 V |
Unipolar |
0 ~ 10 V |
0 ~ 5 V |
0 ~ 2.5 V |
0 ~ 1.25 V |
0 ~ 0.625 V |
Sampling Rate Max. |
10 kS/s. max. |
10 kS/s. max. |
10 kS/s. max. |
10 kS/s. max. |
10 kS/s. max. |
|
|
|
|
|
|
back |
|
|
|
|
|
|
|
|
|
|
|
PISO-813 |
32 channel isolated analog input board.
Includes one CA-4002 D-Sub connector. |
PISO-813 CR |
32 channel isolated analog input board. (RoHS)
Includes one CA-4002 D-Sub connector. |
|
|
|
|
|
back |
|
|
|
|
|
|
|
|
|
|
|
CA-3710 |
DB-37 Male-Male D-sub cable 1 M (Cable for Daughter Board(45¢X)) |
CA-3710D |
DB-37 Male-Male D-sub cable 1M (Cable for Daughter Board(180¢X)) |
CA-3710DM |
DB-37 Male-Male Cable, 1.0 M, 180¢X. (RoHS) |
CA-3730DM |
DB-37 Male-Male Cable, 3.0 M, 180¢X. (RoHS) |
CA-3750DM |
DB-37 Male-Male Cable, 5.0 M, 180¢X. (RoHS) |
CA-4002 |
37-pin Male D-sub connector with plastic cover. |
DB-8325 |
Daughter board with signal conditioning circuitry |
DB-37 |
Directly connect
signals to the back of PISO-813 |
DN-37 |
I/O connector block with DIN rail mounting and 37-PIN D-SUB connector on it |
|
|
|
|
|
|
|
|
|
|
|
