PISO-725
8-channel Relay Output & 8-channel Isolated Digital Input Board |
|
|
|
|
|
|
|
| |
|
|
| |
|
|
| |
The PISO-725 is a 16-channels of digital input/output interface board for the PCI bus computers. The PISO-725 provides 8-channel of electromechanical relay outputs and 8-channel of isolated/non-isolated digital inputs. The digital input channels can be isolated or non-isolated selected by hardware jumper. All digital inputs can generate an interrupt if a state change occurs at any one or more of the inputs. This is very useful when monitoring for contact closures/openings because it is not necessary to continuously poll the inputs. All relays are de-energized at power-on. On/Off status of the relays can be read back. The PISO-725 can be used in various applications including contact closure, external voltage sensing, and loading sensing and designed for control and sensing applications. The PISO-725 has one 37-pin D-Type connector. It can be installed in a 5V PCI slot and can support truly ¡§Plug & Play¡¨. |
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- State-changed interrupt for all digital inputs
- 8-channel of digital inputs
- Digital input can be isolated or non-isolated selected by hardware jumper
- 8-channel of electromechanical relays
- Two Form-C relay
- One Form-C for user¡¦s external device: COM, NC, NO
- The other Form-C for relay status read back
- LED indicates Output state

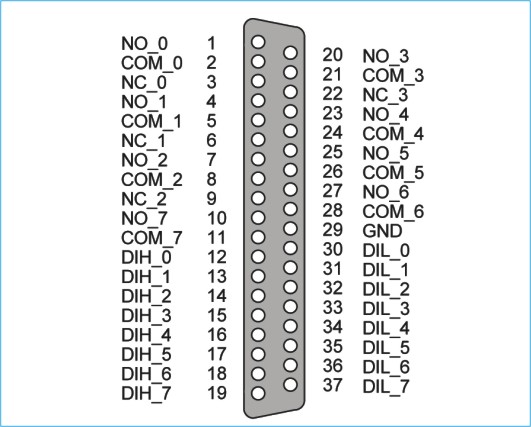

- One 37-pin D-type connector for input and output
- Automatically detected by Windows 95/98/2000/NT
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- Factory automation
- Product test
- Laboratory automation
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- Toolkit for DOS
- Toolkit for Windows 95/98
- Toolkit for Windows NT
- Toolkit for Windows 2000/XP
- LabVIEW toolkit for Windows
|
- Toolkit for OCX 95/98
- Toolkit for OCX NT
- Toolkit for OCX 2000/XP
- Driver for LINUX
- Driver for DasyLab
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| Input |
|
|
Isolated /non-isolated input selected by jumper JA & JB
|
Photo-coupler for isolated input
|
|
|
3K (DC 24V, 7.67mA) for each channel )
|
Input_high voltage for isolated input
|
|
Input_low voltage for isolated input
|
|
Input impedance for isolated input
|
|
Isolation voltage for isolated input
|
|
Response time for isolated input
|
|
|
|
| Output |
|
|
|
COM, NC & NO(the other Form-C for read back)
|
|
AC ( 0.3A/120VAC) / DC ( 1A/30VDC)
|
|
|
|
|
|
100,000 times (at 30V/1A)
|
| Power |
|
|
| Environmental |
Operating temperature |
0~60¢XC |
Storage temperature |
-20¢XC~70¢XC |
Humidity |
0 to 90% non-condensing |
| Dimensions |
Dimensions |
150mm x 110mm |
|
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| PISO-725 |
8-channel Relay Output & 8-channel Isolated Digital Input Board
Includes one CA-4002 D-Sub connector. |
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| CA-4002 |
37-pin Male D-sub connector with plastic cover. |
| DB-37 |
Directly connect signal to D-sub 37-pin connector |
| DN-37 |
DIN Rail Mounting 37-pin Connector |
|
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
