PIO-821H/PIO-821L
PIO-821H:45 kS/s High gain 12-bit,16-channel input, 1-channel D/A, Digital I/O board
PIO-821L:45 kS/s Low gain 12-bit,16-channel input, 1-channel D/A, Digital I/O board |
|
|
|
|
|
|
|
| |
|
|
| |
|
|
| |
The PIO-821L/H is a high performance multifunction board for PC/AT compatible computers. The PIO-821L provides for low gain (1, 2, 4, 8); and the PIO-821H supports high gain (1, 10, 100, 1000). The PIO-821L/H contains a 12-bit ADC with up to 16 single-ended or 8 differential analog input channels. It also has a 12-bit DAC voltage output and 16 TTL-compatible digital input and digital output channels, respectively. The maximum sampling rate of the A/D converter reaches up to about 45K samples/sec. |
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- The maximum sampling rate of the A/D converter is about 45K samples/sec.
- Software selectable input ranges.
- PC/AT compatible PCI bus.
- A/D trigger mode: software trigger, pacer trigger, external trigger.
- 16 single-ended or 8 differential analog input channels.
- Programmable high gain: 1, 10, 100, 1000 (PIO-821H).
- Programmable low gain: 1,2,4,8 (PIO-821L).
- Input range: ¡Ó5V,¡Ó0.5V, ¡Ó0.05V,¡Ó0.005V(PIO-821H).
- Input range: ¡Ó5V,¡Ó2.5V,¡Ó1.25V,¡Ó0.625V (PIO-821L).
- 1 channel 12-bit D/A voltage output.
- 16 digital inputs/16 digital outputs (TTL compatible).
- Interrupt handling.
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- High speed data acquisition system
- Process monitor and control.
- Vibration analysis.
- Digital pattern generator from digital I/O port
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- DOS Lib and TC/BC/MSC sample program (source codes included)
- DLL and OCX SDK for Windows 98/NT/2000
- DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/Vista/7
- VB/VC/Delphi/BCB/VB.NET/C#.NET sample programs with source codes
- LabVIEW toolkit for Windows
- Driver for Linux
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| Model Name |
PIO-821L |
PIO-821H |
| Analog Input |
| Channels |
16 single-ended/8 differential |
| A/D Converter |
12-bit, 8 £gs Conversion time |
| Sampling Rate |
45 kS/s. max. |
| FIFO Size |
N/A |
| Over voltage Protection |
Continuous +/-35 Vp-p |
| Input Impedance |
10 M£[/6 pF |
| Trigger Modes |
Software, Internal programmable pacer |
| Data Transfer |
Polling, Interrupt |
| Accuracy |
0.01 % of FSR ¡Ó1 LSB @ 25 ¢XC, ¡Ó 10 V |
| Zero Drift |
+/- 4 ppm/¢XC of FSR |
| Analog Output |
| Channels |
1 |
| Resolution |
12-bit |
| Accuracy |
0.01% of FSR ¡Ó 1/2 LSB @ 25 ¢XC, ¡Ó 10 V |
| Output Range |
Unipolar:0 ~ 5 V, 0 ~ 10 V, 0 ~ Ext Ref |
| Output Driving |
+/- 5 mA |
| Slew Rate |
0.3 V/£gs |
| Output Impedance |
0.1 £[ max. |
| Operating Mode |
Software |
| Digital Input |
| Channels |
16 |
| Compatibility |
5 V/TTL |
| Input Voltage |
Logic 0: 0.8 V max.
Logic 1: 2.0 V min. |
| Response Speed |
1.2 MHz (Typical) |
| Digital Output |
| Channels |
16 |
| Compatibility |
5 V/TTL |
| Output Voltage |
Logic 0: 0.4 V max.
Logic 1: 2.4 V min. |
| Output Capability |
Sink: 2.4 mA @ 0.8 V
Source: 0.8 mA @ 2.0 V |
| Response Speed |
1.2 MHz (Typical) |
| Timer/Counter |
| Channels |
3(Internal pacer x 1/Independent x 2) |
| Resolution |
16-bit |
| Compatibility |
5 V/TTL |
| Input Frequency |
10 MHz max. |
| Reference Clock |
Internal: 2 MHz |
| General |
| Bus Type |
5 V PCI, 32-bit, 33 MHz |
| Data Bus |
8-bit |
| Card ID |
No |

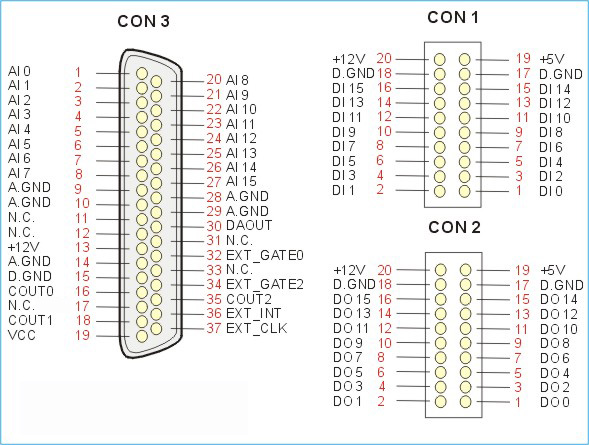

| I/O Connector |
Female DB37 x 1
20-pin box header x 2 |
| Dimensions (L x W x D) |
183 mm x 105 mm x 22 mm |
| Power Consumption |
960 mA @ +5 V |
| Operating Temperature |
0 ~ 60 ¢XC |
| Storage Temperature |
-20 ~ 70 ¢XC |
| Humidity |
5 ~ 85% RH, non-condensing |
|
| |
| Analog Input Range |
| Model |
PIO-821L (Low-Gain) |
| Gain |
1 |
2 |
4 |
8 |
| Bipolar |
+/- 5 |
+/- 2.5 |
+/- 1.25 |
+/- 0.625 |
| Sampling Rate Max. |
45 kS/s |
45 kS/s |
45 kS/s |
45 kS/s |
|
| Model |
PIO-821H (High-Gain) |
| Gain |
1 |
10 |
100 |
1000 |
| Bipolar |
+/- 5 |
+/- 0.5 |
+/- 0.05 |
+/- 0.005 |
| Sampling Rate Max. |
45 kS/s |
45 kS/s |
10 kS/s |
1 kS/s |
|
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| PIO-821H |
45 kS/s High gain 12-bit,16-channel input, 1-channel D/A, Digital I/O board |
| PIO-821L |
45 kS/s Low gain 12-bit,16-channel input, 1-channel D/A, Digital I/O board |
| PIO-821H/S |
PIO-821H + Daughter Board DB-8225 |
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| CA-2010 |
20-pin flat cable,1 M |
| CA-2020 |
20-pin flat cable 2 M. |
| CA-3710 |
DB-37 Male-Male D-sub cable 1 M (Cable for Daughter Board(45¢X)) |
| CA-3710D |
DB-37 Male-Male D-sub cable 1M (Cable for Daughter Board(180¢X)) |
| CA-3710DM |
DB-37 Male-Male Cable, 1.0 M, 180¢X. (RoHS) |
| CA-3730DM |
DB-37 Male-Male Cable, 3.0 M, 180¢X. (RoHS) |
| CA-3750DM |
DB-37 Male-Male Cable, 5.0 M, 180¢X. (RoHS) |
| CA-4002 |
37-pin Male D-sub connector with plastic cover. |
| DB-8225 |
Screw Terminal Board For Analog I/O |
| DB-37 |
Directly connect signal to D-sub 37-pin connector |
| DN-37 |
DIN Rail Mounting 37-pin Connector |
| DB-889D |
16-channel Analog Input Multiplexer Board |
| DB-16P |
16-channel Isolated Digital Input Daughter Board |
| DB-16R |
16-channel Relay Output Daughter Board |
| DB-24C |
24-channel Open Collector Output Daughter Board |
| DB-24OD |
24-channel Open-Drain Output Board |
| DB-24SSR |
24-channel SSR Output Board |
|
|
|
|
| |
