PCI-P16C16
16-channel isolated digital input & 16-channel open-collector output Board (Current Sinking, NPN type) |
|
|
|
|
|
|
|
| |
|
|
| |
|
|
| |

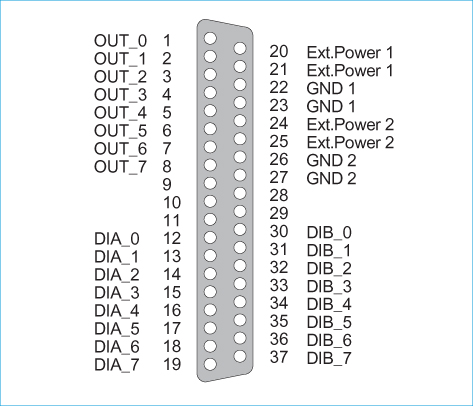

The PCI-P16C16 is a 5 V PCI card that support ¡§Plug & Play¡¨ functionality to automatically obtain I/O resources from the BIOS. This card contains 16 optically isolated digital input channels and 16 open collector (sink, NPN) digital output channels. The DI channels provide 5000 Vrms isolation protection that allows the input signals to be completely floated so as to prevent ground loops and isolate the host computer from damaging voltages. The open collector output (DO) channels are typically used for alarm and warning notification, control of signal output, control of external circuits that require a higher voltage level, and signal transmission applications, etc. The PCI-P16C16 contains a single DB-37 connector and a single 40-pin box header and includes a 40-pin to DB-37 flat cable for easy wiring.
The PCI-P16C16 supports various OS versions, such as Linux, DOS, Windows 98/NT/2000 and 32/64-bit Windows 7/Vista/XP. DLL and Active X control together with various language sample programs based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users quickly and easily develop their own applications. |
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- 16 open collector digital output channels
- 16 optically isolated digital input channels
- Selectable DC signal input filter
- AC Signal input with filter
- External power status LED indicator
- Supports Plug & Play to obtain I/O resources
- No more manually settings of I/O address and IRQ
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- DOS Lib and TC/BC/MSC sample program (with source codes)
- DLL and OCX SDK for Windows 95/98/NT/2K.
- DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/Vista/7.
- VB/VC/Delphi/BCB/VB.NET/C#.NET sample programs with source codes are included.
- LabVIEW toolkit for Windows.
- Driver for Linux.
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| Model Name |
PCI-P16C16 |
| Digital Input |
| Isolation Voltage |
5000 Vrms(Photo-couple) |
| Channels |
16 |
| Input Voltage |
Logic 1:AC/DC 5 ~ 24 V(AC 50 ~ 1 kHz)
Logic 0: AC/DC 0 ~ 1 V |
| Response Speed |
Without Filter: 50 kHz (Typical)
With Filter: 0.455 kHz (Typical) |
| Digital Output |
| Isolation Voltage |
5000 Vrms |
| Channels |
16 |
| Compatibility |
Transistor (Sink, Open Collector) |
| Output Capability |
DC:600 mA/+30 V for one channel @ 100% duty |
| Response Speed |
1 kHz (Typical) |
| General |
| Bus Type |
5 V PCI, 32-bit, 33 MHz |
| Data Bus |
16-bit |
| Card ID |
No |
| I/O Connector |
Female DB37 x 1
40-pin box header x 1 |
| Dimensions (L x W x D) |
183 mm x 105 mm x 22 mm |
| Power Consumption |
800 mA @ +5 V |
| Operating Temperature |
0 ~ 60 ¢XC |
| Storage Temperature |
-20 ~ 70 ¢XC |
| Humidity |
5 ~ 85% RH, non-condensing |
|
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| PCI-P16C16 |
16-channel isolated digital input.16-channel open-collector output (Sink, NPN).
Includes one CA-4037W cable and two CA-4002 D-Sub connectors. |
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| CA-3710 |
DB-37 Male-Male D-sub cable 1 M (Cable for Daughter Board(45¢X)) |
| CA-3710D |
DB-37 Male-Male D-sub cable 1M (Cable for Daughter Board(180¢X)) |
| CA-3710DM |
DB-37 Male-Male Cable, 1.0 M, 180¢X. (RoHS) |
| CA-3730DM |
DB-37 Male-Male Cable, 3.0 M, 180¢X. (RoHS) |
| CA-3750DM |
DB-37 Male-Male Cable, 5.0 M, 180¢X. (RoHS) |
| CA-4002 |
37-pin Male D-sub connector with plastic cover. |
| CA-4037W |
40-pin flat & D-sub 37-pin Female cable 24 cm. |
| DB-37 |
Directly connect signal to D-sub 37-pin connector |
| DN-37 |
DIN Rail Mounting 37-pin Connector |
|
|
|
|
| |
|
|
|
|
|
| |
