P16R16DIO
Isolated 16 Digital Input & 16 Relay Output Board |
|
|
|
|
|
|
|
| |
|
|
| |
|
|
| |
The P16R16 DIO is a 16 isolated digital input and 16 relay output interface board designed for control and sensing applications. This interface board is easily installed in any PC/AT/XT.The P8R8 DIO Provides 16 electromechanical relay outputs and 16 optically isolated inputs. The P16R16 DIO has two 37-pin D-Sub Connector and the function is equal to two P8R8DIO.
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- Relay output Channel
- optically isolated digital input channels
- AC/DC signal Input ; AC signal input with filter

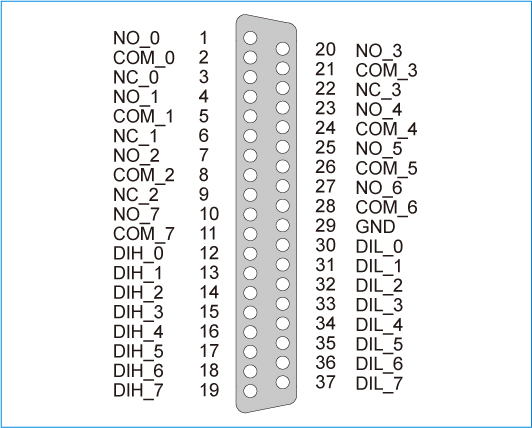

- Connector pin assignment is compatible to 725 series
- Power Requirements : +5V 200mA(max.) ; +12V 260 mA (max.)
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- Factory Automation
- Product Test
- Laboratory Automation
- Security Control
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- Toolkit for DOS
- Toolkit for Windows 95/98
- Toolkit for Windows NT
- Toolkit for Windows 2000/XP
- Toolkit for Labview 95/98
- Toolkit for Labview NT
|
- Toolkit for Labview 2000/XP
- ActiveX Control (OCX) 95/98
- ActiveX Control (OCX) NT
- ActiveX Control (OCX) 2000/XP
- Toolkit for LINUX
- Toolkit for DasyLab
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| Relays |
Relay output Channels |
16 |
Contact Rating |
0.3 A ;120V AC/DC / 1A ; 30Vdc |
Contact arrangement |
Output channel 0-3 are Form C |
Output channel 4-7 are Form A |
Operating time |
5 m Sec |
Release time |
10m Sec |
Expected life > 100,000 times (Electrical at 30V/1A) |
Inputs |
Channels |
16 |
Type |
Non-polarized OPTO-isolated, (PC-814) |
Input Voltage |
AC/DC 5-24V ( Vac Feq:50~1Khz) |
Input Impedance |
1.2 KW |
Response Time |
20mS ( Without filter)22mS ( With filter) |
Isolation |
500V channel-channel & channel-ground |
Environmental |
Operating temperature |
0~60¢XC |
Storage temperature |
-20~70¢XC |
Humidity |
0 to 90% non-condensing |
Dimensions |
Dimensions |
175 mm x 121 mm |
|
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| P16R16DIO |
16-channel Isolated D/I and Relay Output
Includes one CA-4037B cable and two CA-4002 D-Sub connectors. |
| P16R16DIO CR |
16-channel Isolated D/I and Relay Output (RoHS)
Includes one CA-4037B cable and two CA-4002 D-Sub connectors. |
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| DB-37 |
Directly connect signal to D-sub 37-pin connector |
| DN-37 |
DIN Rail Mounting 37-pin Connector |
| CA-4002 |
37-pin Male D-sub connector with plastic cover |
| CA-4037B |
40-pin flat & D-sub 37-pin Female cable 24cm. |
|
|
|
|
| |
|
|
|
|
|
| |
