ISO-DA8
14-bit of 8-channel Isolated Analog Output Board |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
The ISO-DA8 is bus-type isolated 14-bit D/A card for PC/AT compatible computers. The optical isolation of the ISO-DA8 can operate with up to 2500 VDC of common-mode voltage.
The ISO-DA8 offers 8-channel double-buffered analog output. The output range may be configured from these ranges : +/-10 V, +/-5 V, 0~10 V, 0~ 5 V voltages output or 4 ~ 20 mA or 0 ~ 20 mA current loops sink.
The board*s innovative design improve several drawbacks of the conventional isolated D/A card . For example :
1. Jumperless,Trimless
2. The power-on value of analog output can be pre-defined by the user and stored in the on board EEPROM
3. High channel count output can be designed implemented in half size.
4. The calibration is performed under software control, thus eliminating manual trimpot adjustments. The calibration data is stored in EEPROM. Easy recalibration ensures the accuracy of the board. |
|
|
|
back |
|
|
|
|
|
|
|
|
|
|
|
- Built-in DC/DC converter with 3000 VDC isolation
- ISA bus
- 2500 VDC photo-isolation protection
- 8-channel, 14-bit analog output
- Voltage/current outputs from each converter
- Output Type ( Unipolar or Bipolar ) and output range ( 0 ~ 5 V,+/-5 V,0 ~ 10 V,+/-10 V) can be software programmable
- 4 ~ 20 mA current sink to ground from each converter
- Double-buffered D/A latch
- Command set programming
- Software Calibration
|
|
|
|
back |
|
|
|
|
|
|
|
|
|
|
|
- Programmable voltage source
- Programmable current sink
- Harsh environment operation
- Process control
|
|
|
|
back |
|
|
|
|
|
|
|
|
|
|
|
- DOS sample program(with source codes)
- DLL and OCX SDK for Windows 98/NT/2000
- DLL and OCX SDK for 32-bit Windows XP/2003/Vista/7
- VB/VC/Delphi/BCB sample programs with source codes are included
- LabVIEW toolkit for Windows
- Driver for DasyLab
|
|
|
|
back |
|
|
|
|
|
|
|
|
|
|
|
Analog Outputs |
Isolation Voltage |
2500 VDC (Double-buffered, multiplying) |
Channels |
8 independent |
Resolution |
14-bit |
Accuracy |
0.1% of FSR ¡Ó 1 LSB @ 25 ¢XC, ¡Ó 10 V |
Slew Rate |
0.6 V/£gs |
Output Impedance |
0.1 £[ max. |
Operating Mode |
Software |
Voltage Output Range |
Output Range |
+10 V ~ -10 V |
Current drive |
+/- 5 mA |
Absolute accuracy |
0.01% of FSR +/-2 LSB |
Current Output Range |
Current output |
0 ~ 20 mA |
Absolute Accuracy |
0.1% of FSR +/-2 LSB |
Excitation voltage range |
+7 V ~ +40 V |
Stability |
Offset temperature coefficient |
+/-50 £gV/deg C |
Gain temperature coefficient |
+/-10 ppm (C) |
General |
Bus Type |
ISA |
I/O Connector |

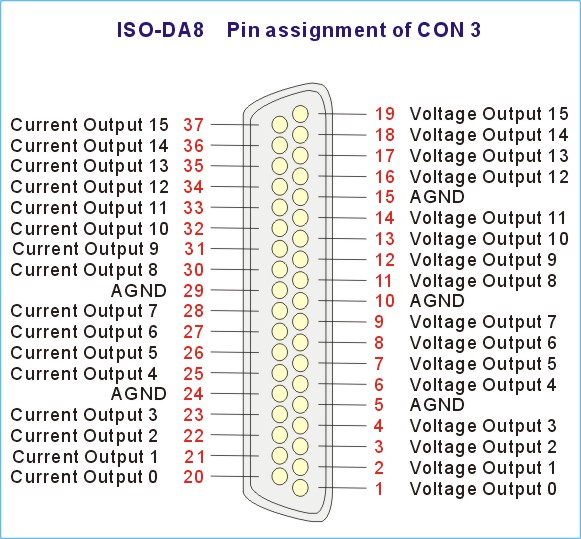

Female DB37 x 1 20-pin box header x 2 |
Dimensions (L x W x D) |
182 mm x 122 mm x 22 mm |
Power Consumption |
800 mA @ +5 V (max.) |
Operating Temperature |
0 ~ 60 ¢XC |
Storage Temperature |
-20 ~ 70 ¢XC |
Humidity |
5 ~ 85% RH, non-condensing |
|
|
|
|
|
|
back |
|
|
|
|
|
|
|
|
|
|
|
ISO-DA8 CR |
8-channel Bus Isolated analog Output Board (RoHS) Includes one CA-4002 D-Sub connector. |
ISO-DA8/S CR |
ISO-DA8 + DN-37 (RoHS)
Includes one CA-3710 D-Sub cable. |
|
|
|
|
|
back |
|
|
|
|
|
|
|
|
|
|
|
CA-2010 |
20-pin flat cable,1 M |
CA-2020 |
20-pin flat cable 2 M. |
CA-3710 |
DB-37 Male-Male D-sub cable 1 M (Cable for Daughter Board(45¢X)) |
CA-3710D |
DB-37 Male-Male D-sub cable 1M (Cable for Daughter Board(180¢X)) |
CA-3715DM-H |
DB-37 Male-Male Cable, 1.5 M, 180¢X. (RoHS) |
CA-3730DM-H |
DB-37 Male-Male Cable, 3.0 M, 180¢X. (RoHS) |
CA-3750DM |
DB-37 Male-Male Cable, 5.0 M, 180¢X. (RoHS) |
CA-3750DM-H |
DB-37 Male-Male Cable, 5.0 M, 180¢X. (RoHS) |
CA-4002 |
37-pin Male D-sub connector with plastic cover. |
DB-37 |
Directly connect signal to D-sub 37-pin connector |
DN-37 |
DIN Rail Mounting 37-pin Connector |
|
|
|
|
|
|
|
|
|
|
|
