ISO-DA16
14-bit of 16-channel Isolated Analog Output Board |
|
|
|
|
|
|
|
| |
|
|
| |
|
|
| |
The ISO-DA16 is bus-type isolated 14-bit D/A card for PC/AT compatible computers. The optical isolation of the ISO-DA16 can operate with up to 2500Vrms of common-mode voltage.
The ISO-DA16 offers 16-channel double-buffered analog output. The output range may be configured from these range : +/-10V, +/-5V, 0~10V, 0~5V voltage output or 4 to 20mA or 0 to 20mA current loop sink.
The board*s innovative design improve several drawbacks of the conventional isolated D/A card . For example :
1. Jumperless,Trimless
2. The power-on value of analog output can be pre-defined by the user and stored in the on board EEPROM
3. High channel count output can be designed implemented in half size.
4. The calibration is performed under software control, thus eliminating manual trimpot adjustments. The calibration data is stored in EEPROM. Easy recalibration ensures the accuracy of the board. |
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |

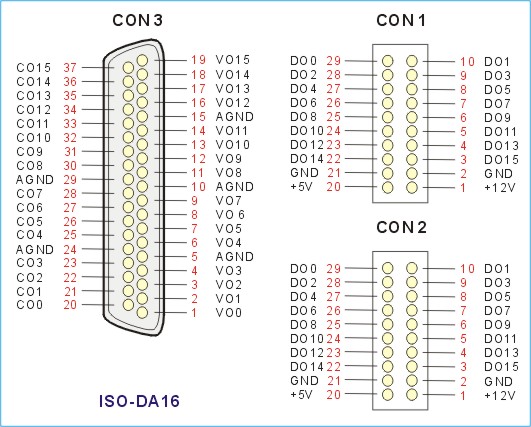

- ISA bus
- 2500Vdc photo-isolation protection
- 16-channel, 14-bit analog output
- Voltage/ current outputs from each converter
- Output Type ( Unipolar or Bipolar ) and output range ( 0~5v,+/- 5V,0~10V,+/- 10V) can be software programmble
- 4-20mA current sink to ground from each converter
- Double-buffered D/A latches
- Command set programming
- Software Calibration
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- Programmable voltage source
- Programmable current sink
- Harsh environment operation
- Process control
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
- Toolkit for DOS
- Toolkit for Windows 95/98
- Toolkit for Windows NT
- Toolkit for Windows 2000/XP
- Toolkit for Labview 95/98
- Toolkit for Labview NT
|
- Toolkit for Labview 2000/XP
- Toolkit for OCX 95/98
- Toolkit for OCX NT
- Toolkit for OCX 2000/XP
- Driver for LINUX
- Driver for DasyLab
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| Analog Outputs |
|
|
|
|
|
|
|
double-buffered, multiplying
|
|
|
|
|
| Voltage Output Range |
|
|
|
|
|
|
|
|
|
|
| Current Output Range |
|
|
|
|
|
|
|
|
| Stability |
Offset temperature coefficient
|
|
Gain temperature coefficient
|
|
| Power |
|
|
| Environmental |
Operating temperature |
0~50¢XC |
Storage temperature |
-20¢XC~70¢XC |
Humidity |
0 to 90% non-condensing |
| Dimensions |
Dimensions |
182mm x 122mm |
|
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| ISO-DA16 |
16-channel Bus Isolated analog Output Board
Includes one CA-4002 D-Sub connector. |
| ISO-DA16/S |
ISO-DA16 + DN-37
Includes one CA-3710 D-Sub cable. |
|
|
|
|
| |
back |
|
|
|
|
| |
|
|
| |
|
|
| |
| CA-4002 |
37-pin Male D-sub connector with plastic cover. |
| CA-3710 |
DB-37 Male-Male D-sub cable 1M (Cable for Daughter Board(45¢X)) |
| DB-37 |
Directly connect signal to D-sub 37-pin connector |
| DN-37 |
DIN Rail Mounting 37-pin Connector |
|
|
|
|
| |
|
|
|
|
|
| |
back |
|
| |
|
|
| |
|
|
| |
|
|
| |
|
|
|
|
|
| |
