ISO-AD32H/ISO-AD32L
200 kS/s 12-bit ; 32-channel Islated Analog Input Board |
|
Model: ISO-AD32H / ISO-AD32L |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
The ISO-AD32H/L ( H for high gain / L for low gain ) is a bus-type isolated 12-bit A/D board for PC/AT compatible computers. The isolation inputs can operate with up to 500 Vrms of common-mode voltage.
The ISO-AD32H/L features a 200 kHz 12-bit analog-to-digital converter ,on board 1 KB FIFO buffer ,32 singled-ended or 16 differential analog input channels .The analog input allows auto-channel /gain scan . This board support gap-free A/D conversion at 200 kHz sampling rates for single channel or 100 kHz sampling rates for channel scan .
The "Hands-Off" design permits all board parameters (channel selection, gain, input type, and operating mode ) to be performed in software . Once installed , you will never have to take care it again.
The board's innovative design improves several drawbacks of the conventional isolated A/D card . Such as :
1.The speed is faster ; up to 200 kHz
2. The sampling rate can be programmable
3. On board FIFO buffer support gap-free A/D conversion and work well under NT and 95 environment.
4. High channel count input can be implemented in half size .
|
|
|
|
back |
|
|
|
|
|
|
|
|
|
|
|
- Built-in DC/DC converter with 1000 VDC isolation
- 32 single-ended or 16 differential input channels, 5000 Vrms photo-isolation protections
- Maximum 200 k 12-bit sampling rate
- Built-in 1 KB FIFO
- Auto-channel / gain scan
- Command set programming
- Gap-free A/D conversion
|
|
|
|
back |
|
|
|
|
|
|
|
|
|
|
|
- Data acquisition
- Waveform analysis
- Harsh environment operation
- Signal isolation
|
|
|
|
back |
|
|
|
|
|
|
|
|
|
|
|
- DOS sample program(with source codes)
- DLL and OCX SDK for Windows 98/NT/2000
- DLL and OCX SDK for 32-bit Windows XP/2003/Vista/7
- VB/VC/Delphi/BCB sample programs with source codes are included
- LabVIEW toolkit for Windows
- Driver for Linux and DasyLab
|
|
|
|
back |
|
|
|
|
|
|
|
|
|
|
|
Analog Input |
Isolation Voltage |
500 Vrms (Photo-coupler) |
Channels |
32 single-ended / 16 differential |
A/D Converter |
12-bit, 5 £gs conversion time |
Sampling Rate |
200 kS/s. (max.) |
FIFO Size |
1 KB |
Over voltage Protection |
Continuous +/- 35 Vp-p |
Input Impedance |
10 M£[ / 6 pf |
Trigger Modes |
Software, Internal programmable pacer, External |
Accuracy |
0.01 % of FSR ¡Ó1 LSB @ 25 ¢XC, ¡Ó 10 V |
Zero Drift |
+/-25 ppm/¢XC of FSR |
|
Analog Input Range |
Model |
ISO-AD32L (Lw-Gain) |
Gain |
0.5 |
1 |
2 |
4 |
8 |
Unipolar (V) |
|
0 ~ 10 |
0 ~ 5 |
0 ~ 2.5 |
0 ~ 1.25 |
Bipolar (V) |
+/- 10 |
+/- 5 |
+/- 2.5 |
+/- 1.25 |
+/- 0.625 |
Sampling Rate Max. |
200 kS/s |
200 kS/s |
200 kS/s |
200 kS/s |
200 kS/s |
|
Model |
ISO-AD32H (High-Gain) |
Gain |
0.5 |
1 |
5 |
10 |
50 |
100 |
500 |
1000 |
Bipolar(V) |
|
0 ~ 10.0 |
|
0 ~ 1.0 |
|
0 ~ 0.1 |
|
0 ~ 0.01 |
Unipolar(V) |
+/- 10 |
+/- 5 |
+/- 1 |
+/- 0.5 |
+/- 0.1 |
+/- 0.05 |
+/- 0.01 |
+/- 0.005 |
Sampling Rate Max. |
125 kS/s |
125 kS/s |
80 kS/s |
80 kS/s |
10 kS/s |
10 kS/s |
1 kS/s |
1 kS/s |
|
General |
Bus Type |
ISA |

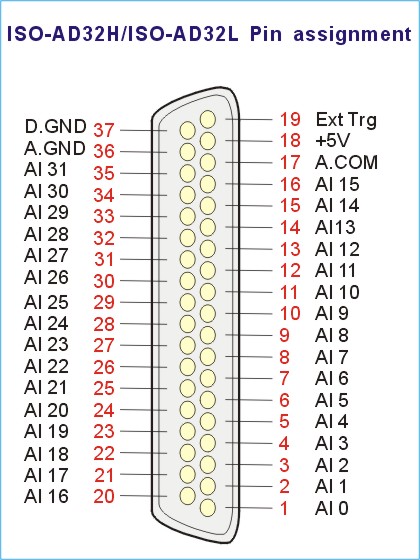

I/O Connector |
Female DB37 x 1 |
Dimensions (L x W x D) |
173 mm x 122 mm x 22 mm |
Power Consumption |
850 mA @ +5 V (max.) |
Operating Temperature |
0 ~ 50 ¢XC |
Storage Temperature |
-20 ~ 70 ¢XC |
Humidity |
5 ~ 85% RH, non-condensing |
|
|
|
|
|
|
back |
|
|
|
|
|
|
|
|
|
|
|
ISO-AD32H |
32-channel/ 12-bit/ High Gain/ Bus Isolated Analog Input Board
Includes one CA-4002 D-Sub connector. |
ISO-AD32H/S |
ISO-AD32H + DN-37
Includes one CA-3710 D-Sub cable. |
ISO-AD32L |
32-channel/ 12-bit/ Low Gain/ Bus Isolated Analog Input Board
Includes one CA-4002 D-Sub connector. |
ISO-AD32L/S |
ISO-AD32L + DN-37
Includes one CA-3710 D-Sub cable. |
|
|
|
|
|
back |
|
|
|
|
|
|
|
|
|
|
|
CA-3710 |
DB-37 Male-Male D-sub cable 1 M (Cable for Daughter Board(45¢X)) |
CA-3710D |
DB-37 Male-Male D-sub cable 1M (Cable for Daughter Board(180¢X)) |
CA-3715DM-H |
DB-37 Male-Male Cable, 1.5 M, 180¢X. (RoHS) |
CA-3730DM-H |
DB-37 Male-Male Cable, 3.0 M, 180¢X. (RoHS) |
CA-3750DM |
DB-37 Male-Male Cable, 5.0 M, 180¢X. (RoHS) |
CA-3750DM-H |
DB-37 Male-Male Cable, 5.0 M, 180¢X. (RoHS) |
CA-4002 |
37-pin Male D-sub connector with plastic cover. |
DB-37 |
Directly connect signal to D-sub 37-pin connector |
DN-37 |
DIN Rail Mounting 37-pin Connector |
125£[, 0.1% DIP Resistors |
125 £[ External Resistor for use with Current Input |
|
|
|
|
|
|
|
|
|
|
|
