A-626/A-628
6 & 8-channel 12-bit Analog Output Board |
|
|
Model: A-626 |
Model: A-628 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
The A-626,A-628 are 12-bit analog output boards with 16 channel digital input and 16 channel digital output .The A-626,A-628 boards support both current and voltage range .The output channel can be jumper selectable for different voltage range ;+/-10 V, +/-5 V, 0 ~ 5 V, 0 ~ 10 V and can sink 4 ~ 20 mA current when connected to an external voltage source. On board reference chip BB Ref-01 is used for solving the thermo-drifting problem of the reference voltage Therefore A-626 is much better than 726 families for long period operation. Lattice FPGA on board can increase the stability of the board.
|
|
|
|
back |
|
|
|
|
|
|
|
|
|
|
|
- Backward compatible to 726 series
- 6 or 8 analog output channels
- 12-bit resolution
- 0 ~ 5 V,0 ~ 10 V,*5 V,*10 V output range
- 4 ~ 20 mA current loop capability ,sink to ground
- On board reference -5 V, -10 V
- External reference *10 V (max.) AC or DC
- External Interrupt request signals, IRQ level from IRQ 3 ~ IRQ 15
- 16-channel digital input and 16 channel digital output Connects directly to DB-16P,DB-16R DN-20,DN-37, 782 and 785 families
|
|
|
|
back |
|
|
|
|
|
|
|
|
|
|
|
- Signal analysis
- Industrial automation
- Laboratory automation
- Sensor interface
|
- FFT & frequency analysis
- Transient analysis
- Production test
- Process control
|
|
|
|
back |
|
|
|
|
|
|
|
|
|
|
|
- DOS sample program(with source codes)
- DLL and OCX SDK for Windows 98/NT/2000
- DLL and OCX SDK for 32-bit Windows XP/2003/Vista/7
- VB/VC/Delphi/BCB sample programs with source codes are included
- LabVIEW toolkit for Windows
- Driver for Linux and DasyLab
|
|
|
|
back |
|
|
|
|
|
|
|
|
|
|
|
Model Name |
A-626 |
A-628 |
Analog Output |
Channels |
6 |
8 |
Resolution |
12-bit |
Accuracy |
0.01% of FSR ¡Ó 1 LSB @ 25 ¢XC, ¡Ó 10 V |
Output Range |
Unipolar: 0 ~ 5 V, 0 ~ 10 V
Bipolar:+/- 5 V, +/- 10 V |
Output Driving |
+/- 5 mA |
Slew Rate |
0.6 V/£gs |
Output Impedance |
0.1 £[ max. |
Operating Mode |
Software |
Digital Input |
Channels |
16 |
Compatibility |
5 V/TTL |
Input Voltage |
Logic 0: 0.8 V max.
Logic 1: 2.0 V min. |
Response Speed |
1.0 MHz (Typical) |
Digital Output |
Channels |
16 |
Compatibility |
5 V/TTL |
Output Voltage |
Logic 0: 0.4 V max.
Logic 1: 2.4 V min. |
Output Capability |
Sink: 0.8 mA @ 0.8 V
Source: -2.4 mA @ 2.0 V |
Response Speed |
1.0 MHz (Typical) |
General |
Bus Type |
ISA |

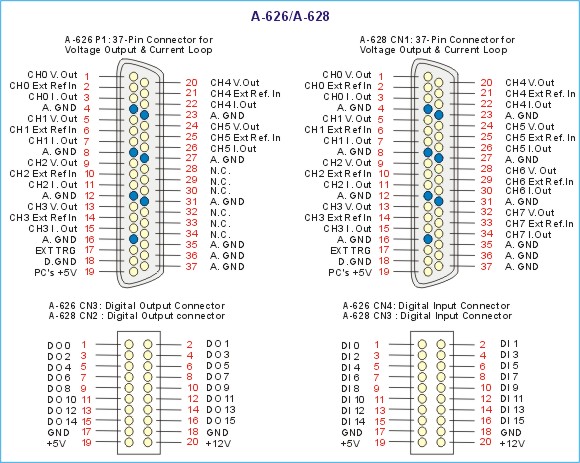

I/O Connector |
Female DB37 x 1
20-pin box header x 2 |
Dimensions (L x W x D) |
157 mm x 106 mm x 22 mm |
Power Consumption |
0.9 A @ +5 V (Max.)
110 mA @ +12 V (Max.)
90 mA @ -12 V (Max.) |
1.1 A @ +5 V (Max.)
130 mA @ +12 V (Max.)
105 mA @ -12 V (Max.) |
Operating Temperature |
0 ~ 60 ¢XC |
Storage Temperature |
-20 ~ 70 ¢XC |
Humidity |
5 ~ 85% RH, non-condensing |
|
|
|
|
|
|
back |
|
|
|
|
|
|
|
|
|
|
|
A-626 CR |
6-channel 12-bit Analog Output and Digital I/O Board (RoHS)
Includes one CA-4002 D-Sub connector. |
A-626/S |
A-626 + DB-37 |
A-628 |
8-channel 12-bit Analog Output and Digital I/O Board
Includes one CA-4002 D-Sub connector. |
A-628/S |
A-628 + DB-37 |
|
|
|
|
|
back |
|
|
|
|
|
|
|
|
|
|
|
CA-2010 |
20-pin flat cable,1 M |
CA-2020 |
20-pin flat cable 2 M. |
CA-3710 |
DB-37 Male-Male D-sub cable 1 M (Cable for Daughter Board(45¢X)) |
CA-3710D |
DB-37 Male-Male D-sub cable 1M (Cable for Daughter Board(180¢X)) |
CA-3710DM |
DB-37 Male-Male Cable, 1.0 M, 180¢X. (RoHS) |
CA-3730DM |
DB-37 Male-Male Cable, 3.0 M, 180¢X. (RoHS) |
CA-3750DM |
DB-37 Male-Male Cable, 5.0 M, 180¢X. (RoHS) |
CA-4002 |
37-pin Male D-sub connector with plastic cover. |
DB-37 |
Directly connect signal to D-sub 37-pin connector |
DN-37 |
DIN Rail Mounting 37-pin Connector |
DB-16P |
16-channel Isolated Digital Input Daughter Board |
DB-16R |
16-channel Relay Output Daughter Board |
DN-20 |
I/O Connector Block with DIN Rail Mounting and 20 -PIN Header |
|
|
|
|
|
|
|
|
|
|
|
