What Web HMI can do ?

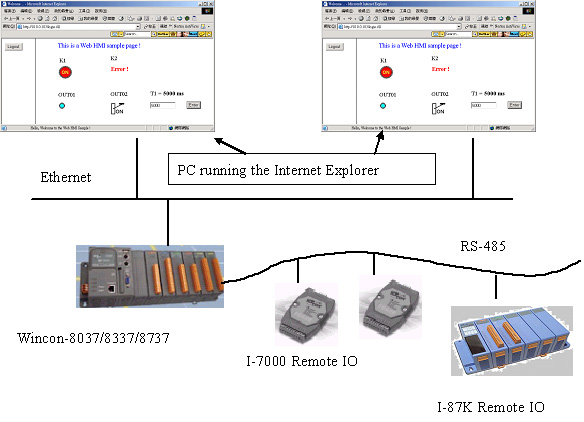

Monitoring and control on the local network
Many automation application need HMI to view the automation process or need HMI to enter the process parameter to controllers. Web HMI is a free and good choice to do this job on your local network.

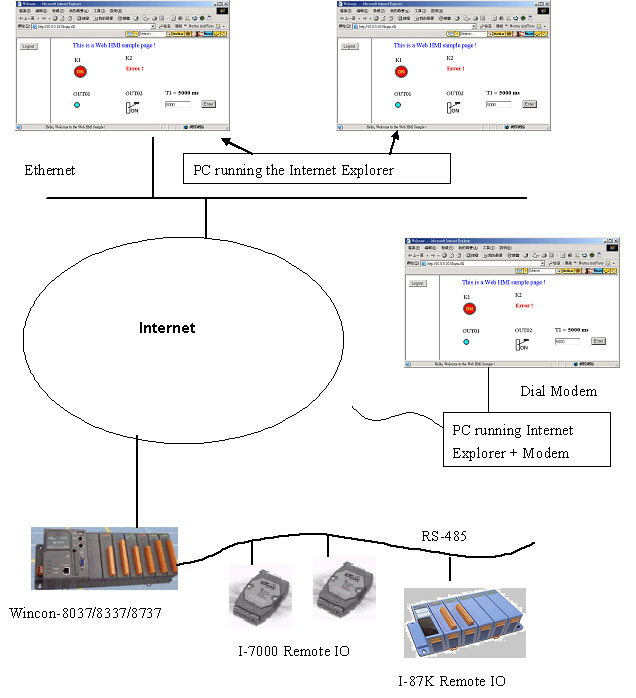

Monitoring and control on the Internet
Image that you are faraway from your application field, you can still monitor your application and give instruction to the controller on the Internet. ICP DASˇ¦s Web HMI has embedded three level password protection to prevent hackerˇ¦s attack.
Click to see figure2 here.

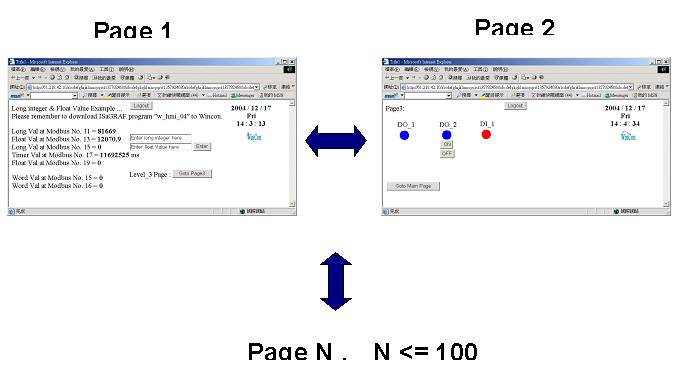

Priority page and multi-page
ICP DASˇ¦s Web HMI supports multi-page switching. It supports up to 100 HTML pages depends on which controller model is used. Each page has a priority setting, it can be low, middle or high. Only higher level user can get accessed to higher priority pages.
Click to see figure3 here.

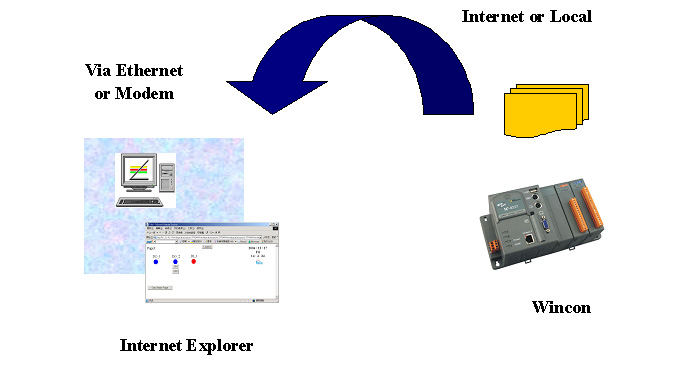

Download data file
Some application may record history data or analog data or others. The ICP DAS Web HMI can be used for download these data file from the controller to your PC via local network or Internet.
Click to see figure4 here.

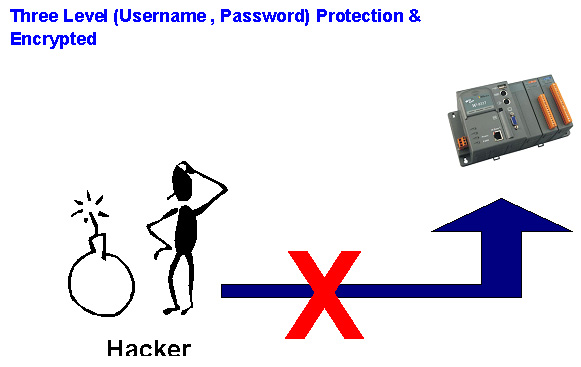

Three level password protection
User may enable or disable the password protection. If enabled, there are three level password low, middle and high can be set. Only the user with correct username and password can get accessed to the Web HMI.
Click to see figure5 here.
Web HMI data format
The data in the controller can be open for Web HMI to Read and write. The following data format are available.
