PISO-CAN200E
~ Available soon ~
PCI Express CAN Communication Card

PISO-CAN200E can represents an economic solution of an active CAN board with express PCI bus. It has 2 independent CAN bus communication ports with 5-pin screw terminal connector or 9-pin D-sub connector, and has the ability to cover a wide range of CAN applications. Besides, PISO-CAN200E uses the new CAN controller Phillips SJA1000T and transceiver 82C250, which provide bus arbitration, error detection with auto correction and re-transmission function.

back

Applications

• Control System• Building Automation• Factory Automation• Distributed data acquisition

back

Features

PCI Express Interface
Compatible with CAN 2.0 parts A and B
Fully compatible with ISO 11898-2 standard
Support CAN bard from 10K to 1M bps
2500 Vrms photo couple isolation on the CAN bus
Universal PCI supports both 5V and 3.3V PCI bus
Build-in jumper to select 120 ohm terminal resister
3KV galvanic isolation
2 independent CAN channels
Direct memory mapping to the CAN controller
Provide VB, VC++, Delphi, BC++ demos
LabView/DASYLab driver
Driver support Windows 98/ME/NT/2K/XP

back

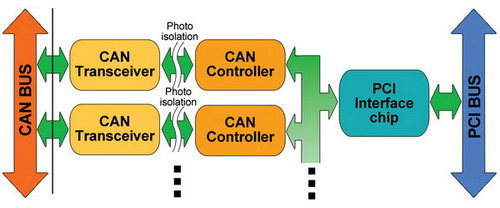

Hardware architecture

back

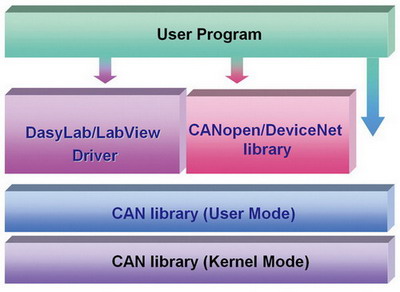

Software architecture

back

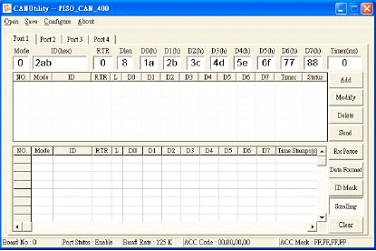

Utility

Can be a CAN system monitor tool with CAN cards
It is a good tool to test CAN system
Send/Receive/Record CAN messages.
Provide cyclic transmission function
Record the CAN messages with filtered ID and time stamp

back

Specifications

Item	PISO-CAN200E-D	PISO-CAN200E-T
CAN connector	9-pin D-sub connector	5-pin Screw Terminal Connector
PCI Express bus	32 bit, 33MHz, X1 PCI Express bus
CAN port	2 independent CAN ports
CAN Controller	NXP SJA1000 CAN Controller with 16MHz
CAN Transceiver	NXP 82C250 CAN Transceiver
CAN Interface	ISO/IS 11898-2, 5-pin screw terminal connector or 9-pin D-sub connector
Signal Support	CAN_H: CAN high bus line, CAN_L: CAN low bus line
CAN specific	Compatible with CAN specification 2.0 parts A and B.
Transfer Rate	Programmable transfer rate up to 1 Mbps
Terminal Resister	120Ω terminal resister selected by jumper
Driver Support	Windows 98/ME/NT/2K/XP
Isolated	2500Vrms on CAN side
Power Supply	33MHz 32bit 5V PCI bus (V2.1) plug and play.
Operation Temp.	0℃ to 60℃
Storage Temp.	-20℃ to 80℃
Humidity	0~90% non-condensing
Dimensions	130mm x 110mm

back

Ordering Information

PISO-CAN200E-D CR	2-Port Isolated Protection CAN Communication Board with 9-pin D-sub connector (RoHS)
PISO-CAN200E-T CR	2-Port Isolated Protection CAN Communication Board with 5-pin Screw Terminal Connector (RoHS)
