PROFIBUS (PROCESS FIELD BUS) which is anchored in the international standards IEC 61158 and IEC 61784 is an open, digital communication system with a wide range of applications, particularly in the fields of factory and process automation. It is suitable for both fast, time-critical applications and complex communication tasks.

To let user can use this powerful communication system more easily, ICP DAS provides kinds of PROFIBUS DP products. We have been developing and studying PROFIBUS DP for years. ICP DAS will always secure user¡¦s industrial safety and stable automation system as our mission



 PROFIBUS DP Features


  • Baudrate up to 12Mbit/s.
  • Maximum 244 bytes input and 244 bytes output per slave.
  • Slave configuration and parameters are set from the master side by GSD file.
  • Allow Multi-master system.
  • Fast Cyclic data communication between master and slave.
  • 124 slaves can be put in Data Exchange.
  • 32 stations on one segment.

Baudrate
(Kbit/s)

9.6

19.2

45.45

93.75

187.5

500

1500

3000

6000

12000

Segment Length
(m)

1200

1200

1200

1200

1000

400

200

100

100

100

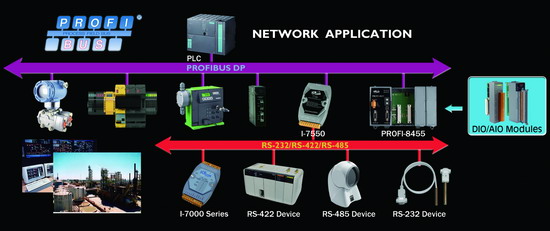

 Application Solution
