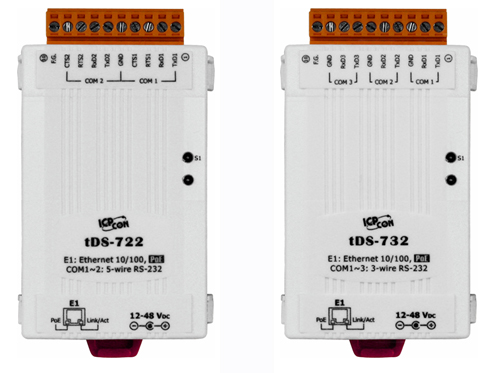

ICP DAS New Product: tDS-722/732
Tiny Device Server with PoE and 2 or 3 RS-232 Ports

Introduction:
The tDS-722/732 are Serial-to-Ethernet device servers designed to add Ethernet and Internet connectivity to any RS-232 device, and to eliminate the cable length limitation of legacy serial communication. It can be easily used for remote controlling of your serial devices through Ethernet network.

By using the VxComm Driver/Utility, the built-in COM port of the tDS-722/732 can be virtualized to a standard PC COM port in Windows. Because of most serial devices don't have network ports; tDS-722/732 turns those devices to become connected to the network. Therefore, users can transparently access or monitor serial devices over the Internet/Ethernet without software modification.

Features:
  • Incorporates Serial Devices in an Ethernet network
  • 10/100 Base-TX Ethernet, RJ-45 Port
    (Auto-negotiating, auto MDI/MDI-X, LED indicator)
  • Contains a 32-bit MCU that efficiently handles network traffic



  • Includes a Virtual COM driver for Windows NT4/2000/XP/2003/2008/Vista and Windows 7 (32/64-bit)



  • Tiny form-factor and low power consumption
  • Cost-effective Device Servers



  • Watchdog Timer Suitable for Use in Harsh Environments



  • Serial Port +/-4 kV ESD Protection Circuit



  • RoHS compliant with No Halogen
  • Made from fire retardant materials (UL94-V0 Level)



  • "Virtual COM" Extends the COM Port number on PC.
  • Includes redundant power inputs: PoE and DC jack
  • Supports TCP, UDP, HTTP, DHCP, BOOTP and TFTP protocol
  • Supports UDP responder for device discovery
  • Allows easy firmware updates via the Ethernet
  • Contains a tiny Built-in Web server for configuration



  • ODM Service Is Available
