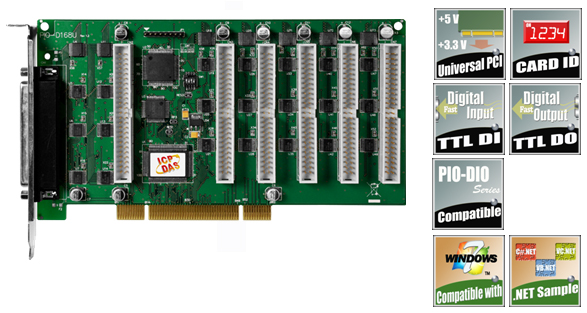

ICP DAS New Product Release: PIO-D168U
Universal PCI, 168–channel Digital I/O Boards


Introduction:
The PIO-D168U card is the new generation product with RoHS compliance and designed completely compatible with PIO-D168. Therefore, there is no any software modification needed while users upgrade the systems from PIO-D168 to PIO-D168U.

The PIO-D168U supports 3.3 V/5 V PCI Bus and provides 168 TTL digital I/O lines. The PIO-D168/D168U consists of twenty-one 8-bit bi-direction ports. All ports are configured as inputs upon power-up or reset.

The PIO-D168U also adds a Card ID switch on board. Users can set Card ID by the switch and recognize the board by the ID via software when using two or more PIO-D168U cards in one computer.

The PIO-D168U supports various OS such as Linux, DOS, Windows 98, Windows 2000, Windows NT, Windows XP 32/64-Bit, Vista 32/64-Bit and Windows 7 32/64-Bit. It also provides the DLL and Active X control, and various language sample programs in Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW to help users to quickly and easily develop their applications.

Feature & Special:
  • Universal PCI interface, supports both +5V and +3.3V PCI bus.



  • Card ID function, users can set Card ID respectively and recognize one card from the others when users have two or more I/O cards in the same model.



  • Up to 168 channels of digital I/O
  • Bi-direction programmable I/O ports under software control
  • All I/O lines buffered on the board
  • Twenty-one 8-bit bi-direction I/O ports
  • DIO response time is about 0.77 μs (1.3 MHz max.)



  • Software compatible with the PIO-D168
  • Fully compatible with the PIO-DIO series product.



  • Support .NET program
  • Provide Microsoft Visual C#.NET 2005 sample programs
  • Provide Microsoft Visual Basic.NET 2005 sample programs
  • Provide Turbo C++, Borland C++, Microsoft C++ sample programs
  • Provide Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic and LabVIEW sample programs



  • Support Microsoft Windows 7 32/64-bit version OS
  • Support Microsoft Windows XP/2003/Vista 32/64-bit version OS
  • Support Windows 98/NT/2000 OS


  • Connect directly to DB-24PR, DB-24PD, DB-24RD, DB-24PRD, DB-16P8R, DB-24POR, DB-24SSR, DB-24C or any OPTO-22 compatible daughter boards
  • Provide four interrupt sources


For more information, please refer to…
http://www.icpdas.com/products/DAQ/pc_based/pio_d168.htm
