ICP DAS New Product Release: Web-based Intelligent PAC Controller- WISE v1.1
Web Anywhere, Automation Anywhere !
As far as modern automation requirements are concerned, all industries are facing the challenge of how to bring automation to a higher level and enhance the performance of their systems. To achieve this goal, many factors must be involved, such as: programming tool selection, program coding, program debugging and performance tuning, etc.. Each one of them could be truly a real headache, and always takes tremendous resources and time during the whole system development. Now the PAC controller leader-ICP DAS unveils the Web-based intelligent PAC controller- WISE v1.1- a perfect automation solution that realizes features of easy-to-use, easy-to-maintain, affordable, foster development process, and comes with intuitive web-based tools. It takes only 4 steps to complete the logic rules design for the controller: Start Web Browser ˇ÷ Connect to WISEˇ¦s Web Server ˇ÷ Edit Logic Rule Setting ˇ÷ Download Logic Rule to WISE. By WISE, user can minimize the investment in time, labor and cost spent on automation system development.
WISE Controller Web Page

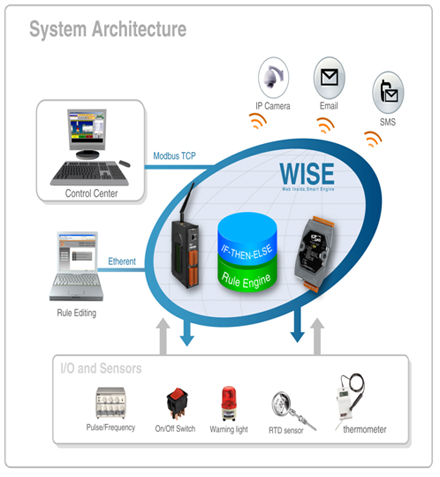

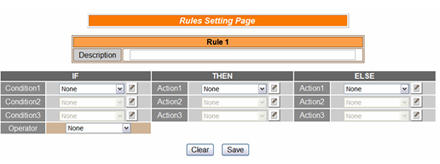

WISE System Architecture IF-THEN-ELSE Rule Editing Page
WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With its powerful and easy-to-use features, it will minimize the learning curve, shorten time to market and dramatically reduce the labor and cost spent on system development. Through Web browser, users connect the built-in Web Server on WISE controllers to perform tasks such as IF-THEN-ELSE logic rule edition and upload. Then the Rule Engine will be set up to manage and deploy logic rules for the controllers. From now on, it will do actions accordingly, for examples: setting up I/O channel values, performing the Schedule or Timer tasks, sending Email or SMS message under a specific condition. In addition, through the Modbus TCP protocol, SCADA package can be seamlessly integrated with WISE to perform real-time monitoring or control for I/O channel or system status.

In WISE v1.1, we provide more useful features such as: calendar interface for more convenient Schedule setting; CGI commands sending to interact with Surveillance Systems; Recipe provided for Group Actions function. Moreover, based on WISE Advanced P2P function, users can expand logic rule design from single WISE controller to multiple WISE controllers. Now all WISE controllers can freely share their status information such as DI/DO/AI/AO channel value, Counter value or Internal Register value to each others. The Advanced P2P function of WISE greatly increases the convenience and minimizes human error especially when performing complicated logic rule design involves communication between multiple controllers.

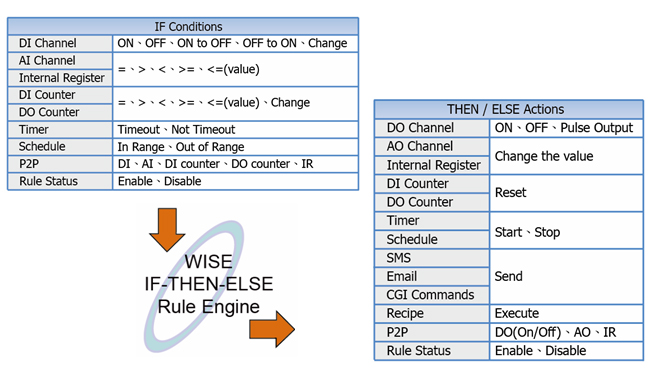

IF-THEN-ELSE Rule Engine Overview

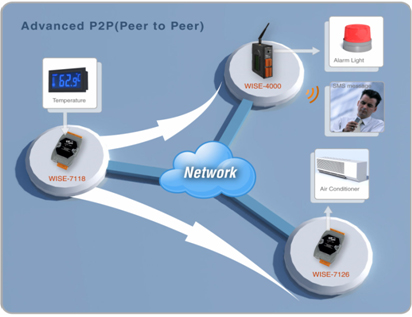

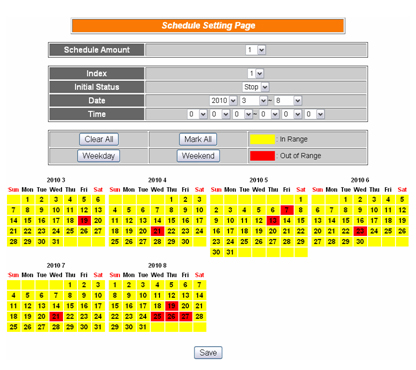

Calendar UI for WISE Schedule function WISE Advanced P2P function
Model WISE-7105
WISE-7115 WISE-7117 WISE-7118Z WISE-7119 WISE-7126 WISE-7144
Ethernet Port 10/100 Base-TX with PoE (Power over Ethernet)
I/O Channel DI - - - - - 2 8
DO 4 - 4 6 4 2 8
AI 8 7 8 10 8 6 -
AO - - - - - 2 -
Note * Support Thermistor * Support RTD - *Support Thermocouple - - -
Model WISE-7151 WISE-7160 WISE-7167 WISE-7901(D) WISE-7902(D)
Ethernet Port 10/100 Base-TX with PoE (Power over Ethernet) 10/100 Base-TX
I/O Channel DI 16 6 - With X-Board With FRnet (maximum 128DI & 128DO) 3
DO - 6 8 3
AI - - - 8
AO - - - -
Note   * Support Power Relay     * Support GPRS/GSM for SMS Message
WISE Controller Platform Specification
Model WISE-71xx WISE-790x(D) WISE-4000(D)
Rule Configuration Website Yes Yes Yes
I/O Function Supported Yes Yes (7901 With X-Board
7902 With FRnet)
Modbus TCP Protocol Supported Yes Yes Yes
36 IF-THEN-ELSE Logic Rule Supported Yes Yes Yes
48 Internal Register Supported Yes Yes Yes
12 Timer Supported Yes Yes Yes
12 Email Supported Yes Yes Yes
12 CGI Commands Supported (New!) Yes Yes Yes
12 Recipe Supported (New!) Yes Yes Yes
8 P2P Supported (New!) Yes Yes Yes
12 Schedule(with Calendar UI) Supported (New!) - Yes Yes
12 SMS Supported - - Yes
WISE Controller Software Function
Why WISE ?
  • Just a few clicks on the mouse to deploy the logic rules, no programming is required. Dramatically reduce the labor and cost spent on system development.
  • No extra software tool is required; all operations can be done through the Web browsers.
  • IF-THEN-ELSE logic rules execution ability.
  • In addition to IO control and monitoring, Timer and Schedule functions are supported for periodic operation.
  • Real Time message sending via SMS and Email.
  • CGI command sending for interaction with Surveillance system.
  • Recipe for Group Actions operation provided.
  • Advanced P2P function provided; all WISE controllers can freely share I/O status information to each others; enables real-time interactions between the controllers.
  • Support Modbus TCP Protocol that enables seamless integration with SCADA software.
  • Wide range of I/O function modules provided that allows users to find best solutions to meet their specific requirements.
  • PoE(Power over Ethernet) for simplifying system design, reducing wiring cost and saving space.
WISE features Easy-to-Use Web Interface, provides wide range I/O modules to choose from, offers full-functioned software tools and enables seamlessly integration with SCADA package, etc., WISE is your best choice in Building Automation, Factory Automation, Machine Automation, Equipment Remote Maintenance/Diagnosis/Monitoring, Facility management and Environment Monitoring applications. For more information about WISE product, please visit WISE WEB site (http://wise.icpdas.com) or ICP DAS Web site (http://www.icpdas.com).
