ICP DAS New Product: CAN-2057C- 16-ch open-collector isolated DO CANopen slave module

Introduction:
CANopen is one kind of the network protocols based on the CAN bus and mainly used for embedded control system, such as industrial machine control, vehicle control system, factory automation, medical equipments control, remote data acquisition, environmental monitoring, etc.

The CAN-2057C is an economic stand-along CANopen slave with 16-channel isolated sink digital output. It follows the CiA specification DS-301 version 4.02 and DSP-401 version 2.1, and has passed the validation of the CiA CANopen Conformance Test tool. Through the provided EDS file, the CAN-2057C can be easily applied by using standard CANopen master. Each open-collector DO channel allows 100mA load current so as to satisfy almost of industrial applications. The function of I/O pair-connection is a special design. You just need to get one CAN-2057C and pick one proper DI module of CAN-2000C series (such as CAN-2053C), adjust the rotary switch of these two modules, and connect them with each other. The digital output single of the CAN-2057C at right side (as the below illustration: Application 2) can be controlled by digital input channel of the remote DI module of CAN-2000C series.

By owing to the CANopen masters of ICP DAS, users can quickly build a CANopen network to approach user¡¦s requirements. We provide several kinds of CANopen master solutions, such as embedded system, PCI and PCIe cards, PCI 104 solutions, and USB modules. For more information about CANopen products of ICP DAS, please refer to the following web site. http://www.icpdas.com/products/Remote_IO/can_bus/can_list.htm#2...

Features:
  • 16-ch isolated open-collector sink digital output
  • CANopen Version: DS301 V4.02
  • Device Profile: DSP-401 v2.1
  • Provide I/O pair-connection function
  • Support polarity configuration for output channels.
  • Supporting CANopen transfer rate 10 kbps, 20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 800 kbps, 1000 kbps.
  • Rotary switch for CANopen Node ID (1~99).
  • Support NMT, PDO, SDO, EMCY, SYNC, Guarding, and Heartbeat protocol.
  • Pass the validation of CiA CANopen Conformance Test tool.
  • Provide default EDS file
  • ESD Protection ¡Ó4 kV Contact for each channel.
  • Intra-module Isolation 3750 Vrms
  • Provide Jumper for the 120 £[ terminator resistor
  • LED display for power, CANopen network status, the status of terminator resistor and the status of output channels
  • Operating temp -25 ~ +75 ¢J

Applications:

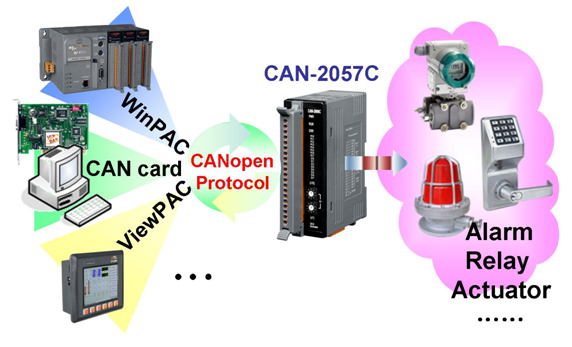

1. CAN-2057C can immediately react to the specific DO channel while receiving the command from CANopen master. Then, the relative actuator will be triggered.

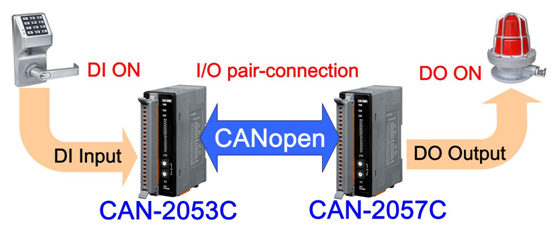

2. CAN-2057C and a DI module of CAN-2000C series (such as CAN-2053C) can form an I/O pair-connection network.

For more information, please visit the following website. http://www.icpdas.com/products/Remote_IO/can_bus/can-2057c.htm
