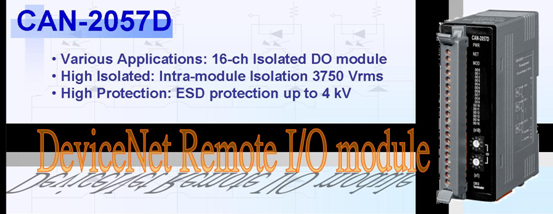

ICP DAS New Product: CAN-2057D- 16-ch Open Collector isolated DO DeviceNet slave module

Introduction:
DeviceNet is one kind of the network protocols based on the CAN bus and mainly used for embedded control system, such as industrial machine control, vehicle control system, factory automation, medical equipments control, remote data acquisition, environmental monitoring, etc.

The CAN-2057D is an economic stand-along DeviceNet slave with 16-channel isolated sink digital output. It follows the ODVA DeviceNet specification Volume I/II, Release 2.0. Through the provided EDS file, the CAN-2057D can be easily applied by using standard DeviceNet master. Each Open Collector DO channel allows 100mA load current so as to satisfy almost of industrial applications.

By owing to the DeviceNet masters of ICP DAS, users can quickly build a DeviceNet network to approach user”¦s requirements. We provide several kinds of DeviceNet master solutions, such as embedded system, PCI and PCIe cards, PCI 104 solutions, and USB modules. For more information about DeviceNet products of ICP DAS, please refer to the following web site. http://www.icpdas.com/products/Remote_IO/can_bus/can_list.htm#3...

Hardware Feature:
  • 16-ch isolated Open Collector sink digital output
  • ESD Protection 4 kV, Contact for each channel.
  • Intra-module Isolation 3750 Vrms
  • Provide DIP switch for the 120 £[ terminator resistor of CAN bus
  • Operating temperature -25 ~ +75 ¢J

DeviceNet Features:
  • Comply with DeviceNet specification Volume I/II, Release 2.0
  • "Group 2 Only Server" DeviceNet subscriber
  • Support DeviceNet heartbeat and shutdown messages
  • Connection support:
    1 connection for Explicit Messaging
    1 connection for Polled I/O
    1 connection for Bit-Strobe I/O
  • DeviceNet Node ID and baud rate setting by rotary switch
  • Provide EDS file for master interface.
  • LED display for power, DeviceNet network status, the status of terminator resistor and the status of output channels

Applications:
CAN-2057D can immediately react to the specific DO channel while receiving the command from DeviceNet master. Then, the relative actuator will be triggered.

For more detail information, please refer to the following website.
CAN-2057D web site http://www.icpdas.com/products/Remote_IO/can_bus/can-2057d.htm
Download CAN-2057D Data sheet http://www.icpdas.com/products/Remote_IO/can_bus/datasheet/can-2057d.pdf
DeviceNet series product web site http://www.icpdas.com/products/Remote_IO/can_bus/devicenet_series.htm
