ICP DAS New Product Release: PCI-D64HU
Universal PCI, 40 MB/s, 64 channels High speed Digital I/O Board


Introduction:

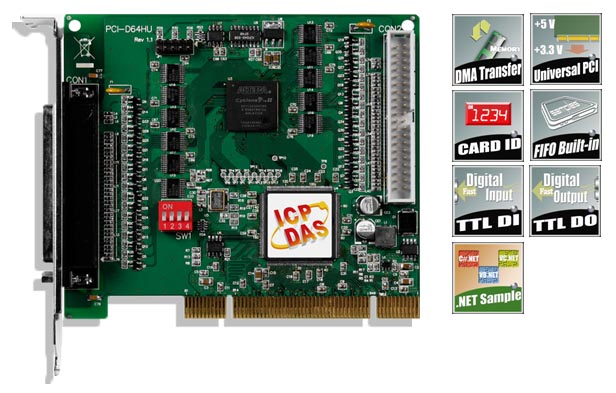

PCI-D64HU card is new generation product with RoHS compliance and supports 3.3 V/5 V PCI Bus and provides 32-CH TTL digital input, 32-CH TTL digital output.

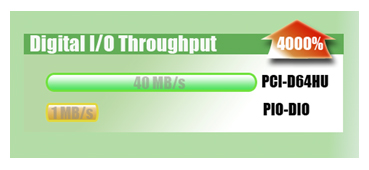

PCI-D64HU support the 2-CH bus-mastering DMA and built-in 1 k/2 k DWORD FIFO for DI/DO respectively, the maximum data transfer rate can be up to 40 MB per second. Four digital I/O control modes are supported:

  1. Direct programmed I/O control:
    Direct read/write the I/O port address to control Digital I/O.
  2. Timer pacer control:
    Digital I/O is triggered by pacer clock (on board) and transfer data by the bus mastering DMA automatically.

  3. External clock mode:
    Use the external signal (I_REQ) to trigger the Digital Input and transfer data by the bus mastering DMA automatically.

  4. Handshaking mode:
    Use the handshaking signal REQ and ACK to transfer the data.
PCI-D64HU has High-performance Scatter/Gather DMA function. It can process multiple memory regions at single DMA operation. PCI-D64HU also adds a Card ID switch for recognizing multiple cards in the same computer by reading the ID via software.

Feature & Special:
  • Universal PCI interface, supports both +5V and +3.3V PCI bus.



  • Card ID function, users can set Card ID to recognize multiple cards in the same computer by reading the ID via software.



  • 2 channels bus mastering scatter/gather DMA
  • Support 4 I/O control modes: Direct program control, Internal timer pacer, External clock (DI only) and Handshaking.



  • 32 channels TTL digital Input
  • 32 channels TTL digital output
  • DIO response speed is 10 MHz (max.)



  • Built-in 1 k DWORD FIFO for DI respectively
  • Built-in 2 k DWORD FIFO for DO respectively
  • DO support ring buffer mode



  • Support .NET program
  • Provide Microsoft Visual C#.NET 2005 sample programs
  • Provide Microsoft Visual Basic.NET 2005 sample programs
  • Provide Visual C++, Borland C++ Builder, Visual Basic sample programs



  • Support Windows 2000 and XP/2003 32-bit version OS
  • Programmable input digital filter for all input signals including handshaking and trigger signals
  • Double side SMD, short card.


For more information, please refer to¡K
http://www.icpdas.com/products/DAQ/pc_based/pci-d64hu.htm
