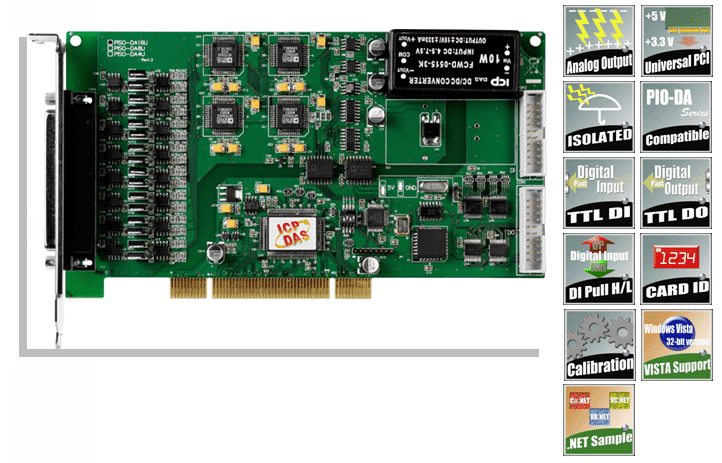

ICP DAS New Product Release: PISO-DA4U/8U/16U
Universal PCI, 14-bit 4/8/16ˇVChannel Isolated Analog Output Boards


Introduction:
ICP DAS gladly presents you with PISO-DA4U/8U/16U, analog output boards with both high-end protection and Universal PCI interface (3.3V/5V supported). PISO-DA4U/8U/16U respectively equips with 4/8/16 AO channels, and each of the channel features double buffers.

Most importantly, the isolation design has been added to these boards; so compared with their brothers, PIO-DA4/DA8/DA16U, the new PISO-DA series offer a durable ability to keep users' computers safe from unexpected surge. It is the built-in high-quality isolation components that make PISO-DA4U/8U/16U featuring 2500VDC bus-typed isolation! For these boards, their voltage output range is from -10V to +10V, and their current output range is from 0 to 20mA.
In addition, PISO-DA4U/8U/16U also features the following advantages by ICP DAS's innovation:
1. Accurate and easy-to-use calibration. ICP DAS provides the software calibration instead of the manual calibration so that no jumpers and trim-pots are required anymore. The calibration information can be saved in the EEPROM for long-term use.
2. Channel to channel configuration. In other words, every channel can be individually configured as voltage output or current output!
3. Card ID. ICP DAS provides the card ID function for PISO-DA series. Users can set a card ID for each card so that when more than two PISO-DA boards are used in a computer at the same moment, users can still instantly recognize them one by one.
PISO-DA series have the same software design with their brothers, PIO-DA series. Therefore, users can enjoy the 2500VDC isolation feature immediately by replacing PIO-DA series with PISO-DA series directly!

PISO-DA series support a wide range of operating systems like Linux, DOS, Windows 98, Windows 2000, Windows NT, Windows XP 32-Bit, and Vista 32-Bit. Moreover, ICP DAS provides all the DLL and Active X for users, and sample programs covering from Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabView are also provided for intuitive and fast learning!

Feature & Special:
  • Universal PCI interface, supports both +5V and +3.3V PCI bus.



  • 4/8/16 channels, 14-bit analog output
  • Voltage output range: +10 V ~ -10 V for each channel
  • Current output range:0~20 mA current sink to ground for each channel
  • Double-buffered D/A latches



  • Card ID function, user can set Card ID to recognize sequence of card when user has more I/O cards of the same model.



  • Digital input port can be set to pull-high or pull-low, when signal wiring happen off-line, the DI status will hold in high or low status(non-floating), so that can help to determine the off-line status.



  • 2500 VDC isolation protection



  • 16-channel Digital Input(TTL)
  • 16-channel Digital Output(TTL)


  • Compatible with software of PIO-DA4/DA8/DA16/DA4U/DA8U/DA16U
  • Direct compatible the PIO-DA series product.



  • Software calibration, the calibration is performed under software control eliminating manual trim-pot adjustments



  • Support the .NET program
  • Provide the Microsoft Visual C#.NET 2005 sample program
  • Provide the Microsoft Visual Basic.NET 2005 sample program
  • Provide Turbo C++, Borland c++, Microsoft C++ sample program
  • Provide Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic and LabView sample program



  • Support the Microsoft Windows Vista 32-bit version OS
  • Support Windows 98/NT/2000 and XP/2003 32-bit version OS



  • Connects directly to DB-16P, DB-16R, DB-24C, DB-24PR and DB-24POR
  • Two pacer timer interrupt source



More information, please refer toˇK
http://www.icpdas.com/products/DAQ/pc_based/pio_da16-8-4.htm
