	ICP DAS New Product: GW-7553 (PROFIBUS/Modbus TCP Gateway)

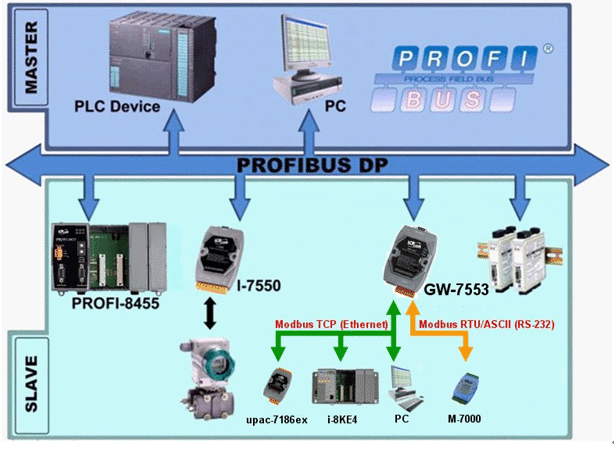

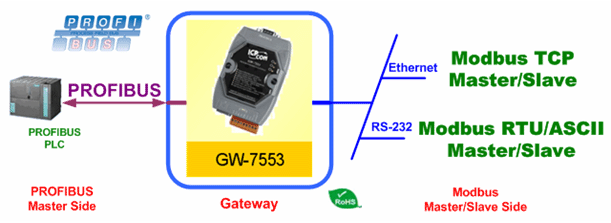

	GW-7553 is a new PROFIBUS Gateway which supports PROFIBUS DP Slave and Modbus protocols. It allows the PROFIBUS Master devices to access Modbus TCP Master/Slave devices. The Modbus TCP devices could be a PLC, a sensor, ICPDAS PACs, I-8KE4-MTCP or ET-7000 series, etc. By using GW-7553, users can add their Modbus TCP devices into PROFIBUS networks easily. Other than Modbus TCP protocol, GW-7553 also supports Modbus RTU and ASCII protocol. Moreover, with isolation design, GW-7553 can be applied in various harsh environments. To sum it up, GW-7553 is a powerful implement for transferring data between PROFIBUS and Modbus networks and is applicable to remote data acquisition, control system, process automation and factory automation, etc.





	Features:
	RoHS Design 16-bit Microprocessor inside with 80 MHz Profichip VPC3+C PROFIBUS controller Support PROFIBUS DP-V0 slave PROFIBUS transmission rate detected automatically Max transmission speed up to 12 Mbps for PROFIBUS and 115.2 kbps for COM Port Support Modbus RTU / ASCII / TCP format Support Modbus Master / Slave mode Support safe value setting COM Port with 1 Kbytes QUEUE input buffer & 512 bytes QUEUE output buffer Max length of in/output data is 128/131 Bytes Ethernet Port: 10/100 Base-TX 2500 Vrms High Speed iCoupler Isolation Protection for PROFIBUS network 3000 VDC Isolation Protection on the PROFIBUS side Provide LED indicators-PWD, ERR and RUN LEDs Built-in Watchdog Mountable on Rail DIN English/Chinese manuals included

	For more information, please visit the following website: http://www.icpdas.com/products/Industrial/profibus/gw-7553.htm About the user manual, please refer to the website: http://ftp.icpdas.com.tw/pub/cd/fieldbus_cd/profibus/gateway/gw-7553/manual/
