New Release: PISO-CM100U-D/T
The Standalone, Universal PCI-based CAN bus communication board


PISO-CM100U-D/T, a CAN bus communication card with a built-in CPU, enables PC users to embrace the advantages of ¡§Controller Area Network¡¨, and to access the CAN network right away!

PISO-CM100U-D/T provides a universal PCI bus and one CAN port. The CAN bus port uses NXP SJA1000 CAN controller with 82C250 transceiver, and follows the specification of ISO 11898-2; furthermore, this CAN port also supports CAN 2.0A and CAN 2.0B data format. Users can set CAN baud rate based on the 16MHz clock.

PISO-CM100U-D/T features a built-in CPU and a 8KB-DPRAM on-board. With the built-in CPU running at 80 MHz, PISO-CM100U-D/T can achieve better real-time performance when processing CAN messages, and effectively reduce the PC¡¦s loading. Besides, with the 8KB-DPRAM, users can download the user-defined firmware into the PISO-CM100U-D/T for their own applications. To sum up, PISO-CM100U-D/T can satisfy many complex CAN applications, such as mechanism control, building automation, medical systems, factory automation, CAN network analysis and CAN data logger, etc.

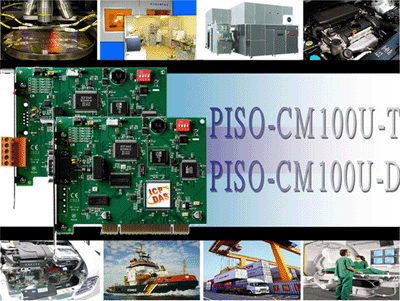

PISO-CM100U-D: The Standalone, Universal PCI-based CAN bus communication board with a 9-pin D-sub connector
PISO-CM100U-T: The Standalone, Universal PCI-based CAN bus communication board with a 5-pin screw terminal connector

Features:
  • Universal PCI card, supports both 5 V and 3.3 V PCI bus
  • 80186, 80MHz or compatible
  • 512 KB SRAM
  • 512 KB Flash memory (128 KB for system usage)
  • 8 KB DPRAM (1 KB for system usage)
  • 2 KB EEPROM (256 bytes for system usage)
  • Real time clock (RTC) inside
  • Build-in Watchdog Timer
  • Compatible with CAN 2.0 parts A and B.
  • Fully compatible with ISO 11898-2 standard.
  • 16 MHz clock for CAN controller.
  • Programmable transfer-rate up to 1 Mbps.
  • Provide DIP switch to configure board number.
  • Allow user-defined baud.
  • Provide default firmware and allow user-defined firmware
  • Jumper select 120£[ terminator resistor for each port.
  • 2500Vrms photo-couple isolation on CAN side.
  • Provide VB, VC++, Delphi, BC++ demos.
  • Driver support for Windows 2000/XP.

For more information about PISO-CM100U-D/T, please refer to the link below:
http://www.icpdas.com/products/Remote_IO/can_bus/piso-cm100.htm

Download its datasheet:
http://www.icpdas.com/products/Remote_IO/can_bus/datasheet/PISO-CM100U.pdf
