News Express: I-8088W
8-ch isolated PWM output and 8-ch isolated digital input module |
|
|
|
|
|
 |
|
|
|
|
|
Introduction
PWM (Pulse width modulation) is a powerful technique for controlling analog circuits. It uses digital outputs to generate a waveform with variant duty cycle and frequency to control analog circuits. I-8088W has 8 PWM output channels and 8 digital inputs. It can be used to develop powerful and cost-effective analog control systems.
|
|
|
|
|
|
Features:
- Automatic & software-independent PWM outputs by hardware
- PWM output frequency: 10Hz ~ 100KHz with 0.1%~99.9% duty cycle

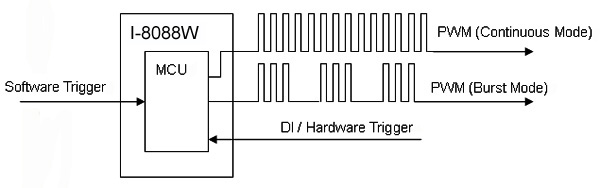

- Modes: software trigger / hardware trigger for PWM output
- Individual and synchronous PWM output
Using software trigger mode, you can configure all PWM channels, and then choose to trigger them one by one or all of them at the same time.
- Burst mode PWM operation can be used as the standby signal.
- DI channels can be used simply as digital input channels or interactive with PWM outputs as hardware trigger sources.
|
|
|
|
|
|
Applications:
- Position/speed control for motors
- Brightness control for lamps
- Speed control for fans
|
|
|
|
|
|
For more information, please visit the following website.
http://www.icpdas.com/products/Remote_IO/i-8ke/i-8088w.htm |
|
|
|
|
|
|
 |
