Release new functions of LSS for I-7232D CANopen/Modbus RTU Gateway |
|
|
|
|
|
 |
|
|
|
|
|

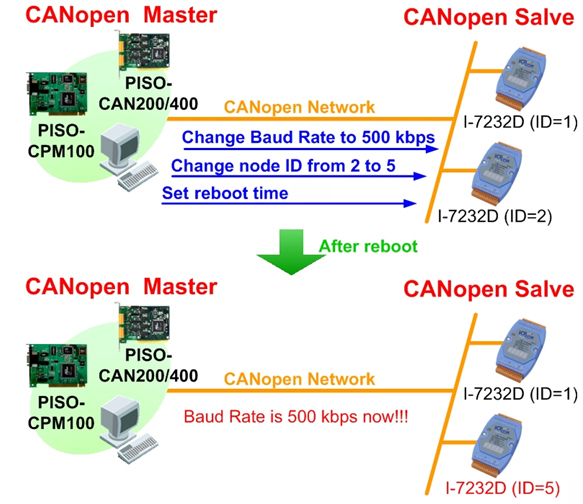

LSS protocol offers the possibility to inquire and change the settings of certain parameters of the local layer. A CANopen module with LSS Slave capabilities can be configured by a CANopen module with LSS Master Capabilities via the CANopen Network. By using LSS, I-7232D, a LSS Slave can be configured for a CANopen network without using Utility tool for setting the parameters in the local field. The LSS functions of I-7232D are shown as follows: |
|
|
กป Switch mode protocols
- Switch mode global
- Switch Mode Selective
กป Configuration protocols
- Configure Node-ID protocol
- Configure Bit Timing Parameters protocol
- Activate Bit Timing Parameters protocol
- Store Configuration protocol
กป Inquire protocols
- Inquire "Identify Vendor-ID protocol"
- Inquire "identify product- code protocol"
- Inquire "Identify revision-number protocol"
- Inquire "identity serial-number protocol"
- Inquire Node-ID protocol
กป Identification protocol
- LSS Identify Remote Slaves
- LSS Identify Slave
|
|
|
|
|
|
For more information, please refer to
http://www.icpdas.com/products/Remote_IO/can_bus/i-7232d.htm |
|
|
|
|
|
|
 |
