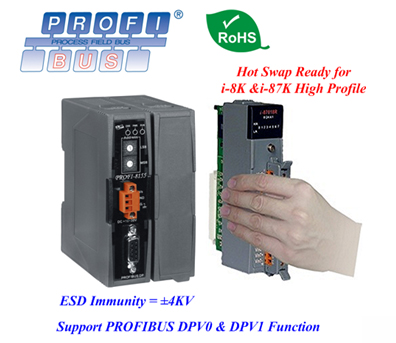

New Product: PROFI-8155 (PROFIBUS Remote I/O Unit with one Expansion Slot)


PROFIBUS is an open, digital communication system with a wide range of applications, particularly in the fields of factory automation and process automation. PROFIBUS DP is suitable for both fast, time-critical applications and complex communication tasks. The PROFI-8155 is one of PROFIBUS DP series products produced by ICP DAS. It provides DP-V0 protocol for fast data exchange cyclically and DP-V1 for immediate system monitor acyclically with DP-Masters, it plays the role of slave device with remote I/O functionality in PROFIBUS network. The PROFI-8155 not only provides 4KV ESD protection contacting for all terminals at front-panel but also reduces the volume efficiently. By applying the PROFI-8155, users can easily establish a PROFIBUS DP network with other DP-Masters. We provide many kinds of i-8K and i-87K modules that include Digital Input/Output, Analog Input/Output and Counter/Frequency. In addition, the PWM module will be included in the future. If users need hot-swap function, we also provide it with i-87K high profile series.

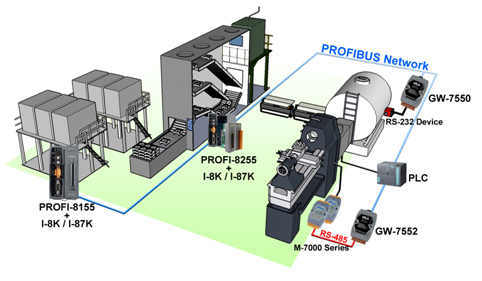

In advance, it can use in the application of building automation, remote data acquisition, environment control and monitoring, laboratory equipment & research, factory automation, etc.


Feature:
  • Support PROFIBUS Protocol of DP-V0 & DP-V1 Read/Write.
  • Up to 12Mbps transmission rate (Automatic Detection).
  • Support modules hot-swap (I-87K High Profile series)
  • Support diagnostic message report
  • Support maximum 32 channels of diagnosis
  • Built-in Host and Module dual watchdog timer (WDT)
  • Support all I/O modules and part of Counter/Frequency module from ICP DAS.
  • Support 1 I/O Expansion Slot
  • PWR, RUN and ERR LED indicators
  • 2500Vrms High Speed iCoupler isolation protection on PROFIBUS network
  • 3000VDC power isolation protection
  • 4KV ESD Protection contact for any terminals

For more information, please refer to
http://www.icpdas.com/products/Industrial/profibus/profi-8155.htm
http://www.icpdas.com/products/Industrial/profibus/datasheet/PROFI-8155.pdf
