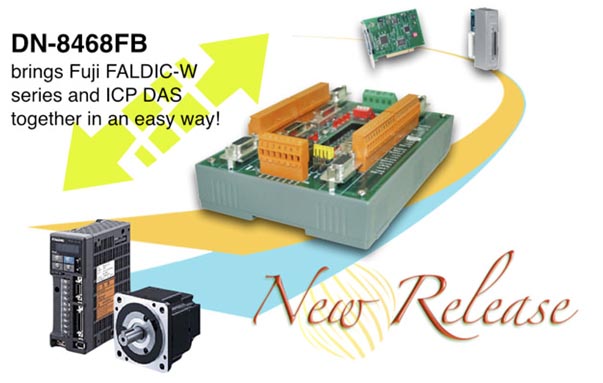

DN-8468FB brings Fuji FALDIC-W series and ICP DAS together in an easy way! |
|
|
|
|
|
 |
|
|
|
|
|
ICP DAS has just released the new daughter board ¡§DN-8468FB¡¨ which works as a bridge connecting ICP DAS and Fuji. Now, wiring between our 4-axis motion control products and FALDIC-W servo motors is in an easy way; with a ¡§DN-8468FB¡¨, the whole process could finish within minutes. DN-8468FB not only saves time for wiring but enhances whole performance in production. |
|
|
|
|
|
What¡¦s new in DN-8468FB:
- ICP DAS PISO-PS400¡BI-8094¡BI-8094F¡BI-8094A and I-8094H are supported.
- Full support for 26-pin connector of Fuji servo motor.
- Include 4 set of 12-pin pluggable screw terminal block (X¡GCN1¡BY¡GCN2¡BZ¡GCN3¡BU¡GCN4). Users can take them for I/O wiring while controlling the motor, such as Servo_ON¡BHOME¡BNRHOME¡B¡ÓLimit.
- Additionally add 4 set of 15-pin connectors (X¡GCN5¡BY¡GCN6¡BZ¡GCN7¡BU¡GCN8). Users can take them to work with other stepping motors and optical linear scales. Both X axis and Y axis are allowed to choose the source from Encoders, either from the servo motor or from the optical linear scale, by the jumper.
- Include a switch which determines Fuji servo axis, Count 3, to be an effective outer control point or not.
|
|
|
|
|
|
More information about DN-8468FB, please visit the following website.
http://www.icpdas.com/products/DAQ/screw_terminal/dn-8468.htm |
|
|
|
|
|
|
 |
