	ICP DAS NEW Products: PCM-CAN 200 PCI-104 CAN Communication module

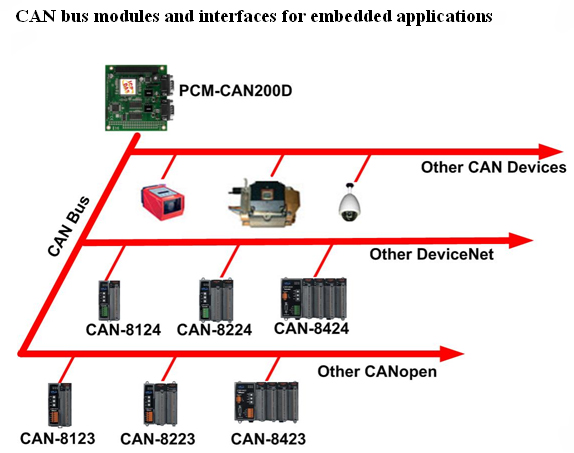

	PCM-CAN200 is a PCI-104 CAN card. It follows ISO 11898-2 CAN standard, and supports PCI-104/PC104+ compliant bus interface. It has 2 independent CAN bus communication ports with 9-pin D-sub connectors, and has the ability to cover a wide range of CAN applications. Besides, PCM-CAN200 uses the CAN controller Phillips SJA1000T and transceiver 82C250, which provides bus arbitration, error detection with auto correction and re-transmission functions. For various CAN applications, PCM-CAN200 is an economic and easy-to-use solution.



	Product Features: PCI-104/PC104+ compliant 2500Vrms photo-couple isolation on CAN side 1000VDC galvanic protection Two independent CAN communication ports Connector: 9-pin D-sub male connector. Compatible with CAN 2.0A and 2.0B Fully compatible with ISO 11898-2 standard On-board optical isolation protection Programmable transfer-rate up to 1 Mbps Jumper select 120Ω terminator resistor for each port Rotary switch for interrupt No. selection Direct memory mapping to the CAN controllers Provide VB, VC++, Delphi, BC++ demos LabVIEW/DASYLab driver Driver support for Windows 98/ME/NT4/2000/XP, Win CE(Available soon)



	For more information, please refer to the following location. Web site: http://www.icpdas.com/products/Remote_IO/can_bus/pcm-can200.htm Data sheet: http://www.icpdas.com/products/Remote_IO/can_bus/datasheet/PCM-CAN200.pdf
