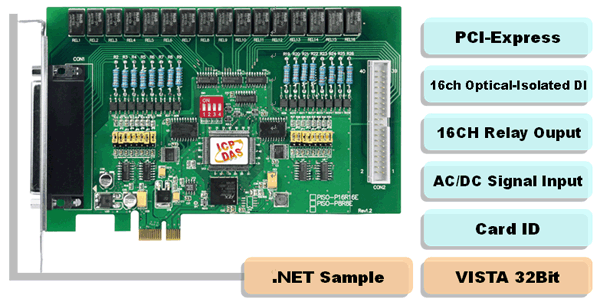

ICP DAS New Product:PISO-P16R16E
(PCI Express bus/16-CH Optical-Isolated Digital Input and 16-CH Relay Output Board)

Introduction:

PISO-P16R16E is the first PCI-Express interface product on ICP DAS.PISO-P16R16E has 16 channels of optical-isolated Digital Input and 16 channels of relay output board. Each input channel use a photo-coupler to isolate the card and computer from external signal. PISO-P16R16E supports Card ID (jumper) features for multi-board identification, and compatible with the PISO-P16R16U.

This interface board is easily installed in any PC which has PCI-Express bus. The board interface to field logic signals, eliminating ground-loop problems and isolating the host computer from damaging voltages. PISO-P16R16E has one 37-pin D-Sub connector and one 40-pin male header. The 40-pin to DB-37 flat cable is used to fix with the case. The user can connect the digital signal through the second D-Sub connector. Each D-Sub connector contains 8 input channels and 8 output channels.

PISO-P16R16E support the OS that include Linux, DOS, Windows 98, Windows 2000, Windows NT, Windows XP 32-Bit, Vista 32-Bit. And provide the DLL and Active X control to help user who implement the product. This sample program have Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabView to help user more fast to compose.

Features:

PCI Express Interface
16-CH optical-isolated digital input
16-CH Relay output
AC/DC signal input
Card ID: Jumper setting for multi-board identification
Support Windows 98/NT/2000/XP32 Bit/2003 32Bit Vista 32Bit OS
Provide Turbo C++、Borland c++、Microsoft C++、Visual C++、Borland Delphi、Borland C++ Builder、Visual Basic、Visual C#.NET、Visual Basic.NET and LabView sample program

Specifications:

ModelBus		PISO-P16R16E	PISO-P16R16U	PCI-P16R16
Bus Type		PCI-Express X 1 (+3.3V/+12V)	Universal PCI (+3.3V/+5V)	PCI Bus(+5V)
Relay Output	Contact Rating	0.5A/120Vac,1A/24Vdc		0.5A/120Vac,DC/1A 30Vdc
	Relay Type	8 SPDT 8 SPST
	Operating Time	Typical 1 ms		5 ms
	Release Time	Typical 7 ms		10 ms
	Expected life	Mechanical(5 millions); electrical (1 millions)		> 100,000 times (at 30V ,1A)d
Optical Isolated Digital Input	Type	None-polarized opto-isolated (PC-354)		None- polarized Optical Isolation (PC-814)
	Input voltage	AC/DC 5-24V or Vac(50- 1khz)
	Operating Temperature	0~60°C
	Input impedance	1.2 K ohm
	Response time	20u Sec (Without filter) / 2.2m Sec ( With filter)
	Isolated Voltage	3750V		5000V
Environmental	Operating temperature	0~60°C
	Storage temperature	-20 °C ~ 70 °C
	Humidity	0 to 90% non-condensing
Dimensions	Dimensions	205mm x 105mm		180mm x 105mm

More information, please refer to…
http://www.icpdas.com/products/DAQ/pc_based/piso_p16r16u.htm
