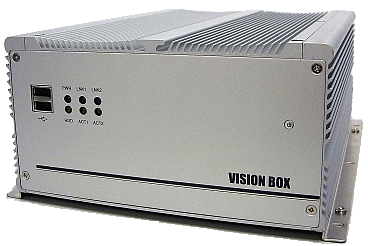

The Vision Box is a fan-less platform and ideal to work with MAVIS IEEE 1394 industrial camera for AOI (Automation Optical Inspection) applications.

The VB-115 offers Celeron M 1.5GHz CPU with 2GB DDR 266 memory and it is well-suited for being a general vision inspection equipment. The VB-216 offering 1.66GHz high-speed mobile Core Duo CPU with 2GB DDR2 533 memory is specially designed for advanced high-speed inspection applications.

The Windows XP embedded OS ran on Vision Box features the stable system and long-time operation. Each Vision Box has 2 built-in 1394a ports (400Mbps for each port) and 6 USB2.0 ports. Dual LAN ports are available in 10/100 BASE-T for VB-115; VB-216 even supports up to Gigabit Ethernet.

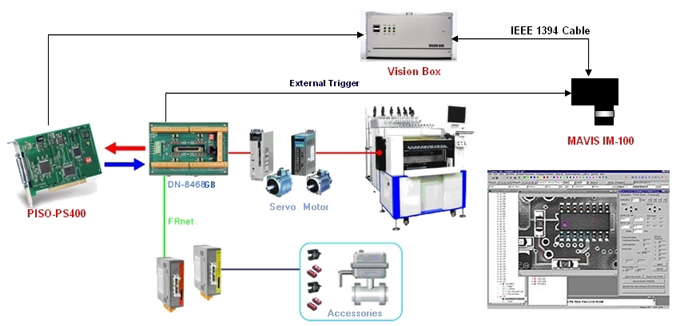

Meanwhile, Vision Box offers one standard PCI bus for extensional purposes, such as motion control, I/O control or encoding that ICP DAS’s PISO-PS200/ PISO-PS400, I/O card as well as encoder card are perfectly matched for each purpose respectively. Vision Box provides complete machine automation solutions for you!
