ICP DAS's New Product: I-8KCPS1/I-8KCPS2--- CANopen Slave device with one/two I/O expansion slots |
|
|
 |
 |
|
|

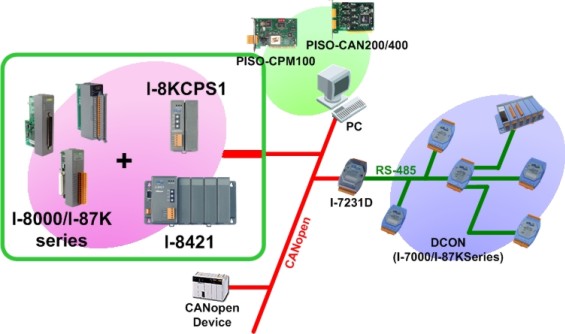

The I-8KCPS1/I-8KCPS2 is one of the CAN bus series products developed by ICP DAS. Its application protocol is CANopen protocol which is a kind of standard protocol, and is widely used all over the world. Therefore, I-8KCPS1/I-8KCPS2 provides not only the advantages and features of CAN bus but the CANopen slave mechanism. By applying the I-8KCPS1/ I-8KCPS2 with the various I-8000/I-87K series modules, it is more flexible and variable to satisfy the diversified applications. The I-8KCPS1/I-8KCPS2 can be used in the distributed monitor and control system, remote data acquisition, building automation, environment control and monitor, laboratory equipment & research, factory automation, ¡Ketc. |
|
|
Main Features
- NMT: Slave
- Error Control: Node Guarding
- No. of PDOs: 16 Rx, 16Tx
- PDO Modes: Event-triggered, remotely requested, cyclic and acyclic SYNC
- PDO Mapping: variable
- No of SDOs: 1 server, 0 client
- Emergency Message: Yes
- CANopen Version: DS-301 v4.01
- Device Profile: DSP-401 v2.0
- Produce EDS file dynamically
- Provide friendly Utility to configure
- Support Baud Rate: 10K, 20K, 50K, 125K, 250K, 500K, 800K and 1M bps
- Data rate and Node Address (Node ID) configured via rotary switches
- PWR, RUN and ERR LED indicators
- Support most I-87K / I-8K I/O modules
- Provide one/two slots
For more information, please refer to
http://www.icpdas.com/products/Remote_IO/can_bus/I-8kcps.htm |
|
|
|
|
|
 |
|
|
|
|
