ICP DAS's New Product : I-8420 -- DeviceNet Slave device with four I/O expansion slots

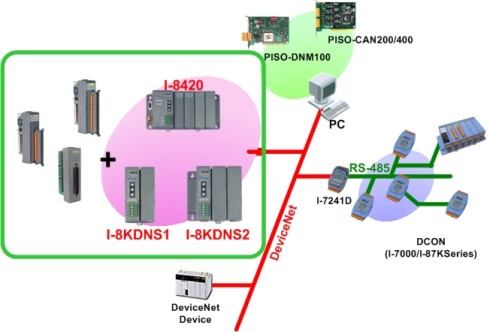

The I-8420 is one of the CAN series products produced by ICP DAS. It provides the DeviceNet communication protocol. By applying the I-8420, users can easily establish a DeviceNet network with other DeviceNet devices. The I-8420 provides four I/O slots. In addition, we also provide many kinds of I-8K and I-87K IO modules with the I-8420. It can be used in the application of building automation, remote data acquisition, environment control and monitoring, laboratory equipment & research, factory automation, etc. The application architecture is demonstrated as follows:

The I-8420 has following features:

  • Group 2 Only Slave (Non UCMM-capable)
  • Support of Predefined Master/slave Connection Sets
  • Dynamic Assembly Object Mapping by users.
  • Support of Device Heartbeat message and Device Shutdown message
  • Dynamic Product EDS File
  • I/O operating modes: Polling, Bit-Strobe, Change of State/Cyclic
  • Support I-8K/I-87K IO modules from ICP DAS
  • Baud Rate: 125Kbaud, 250Kbaud and 500Kbaud
  • Data rate and Node Address (MAC ID) configured via rotary switches
  • Provide with a friendly Utility for configuration
  • PWR, MOD and NET LED indicators

For more information, please refer to ¡K¡K
http://www.icpdas.com/products/Remote_IO/can_bus/I-8420.htm
