Q: How to wire a DO pin of  7188XC to a relay?

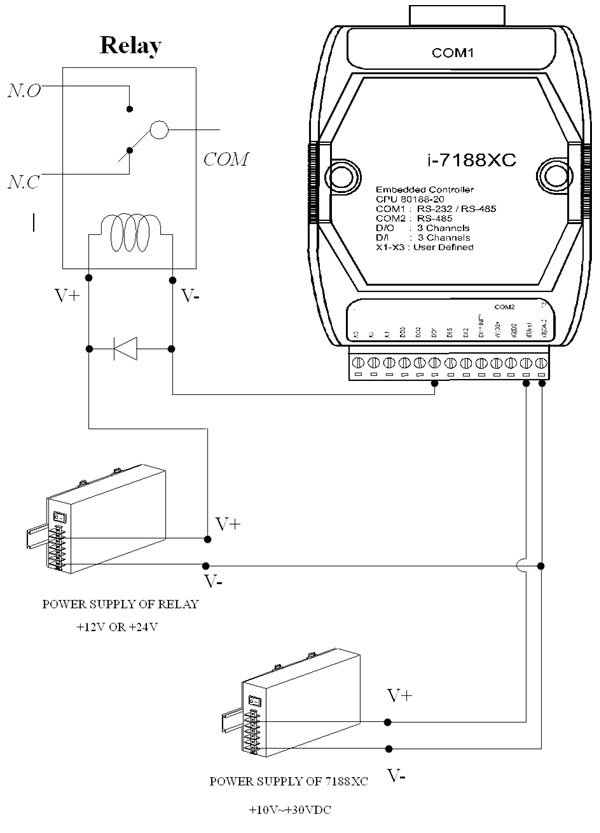

Ans: The pins of 7188xc are open collectors.To see the picture as follows for more details.

back

Written by Tony

Date:2002/2/25
