uPAC-7186EXD-FD-G

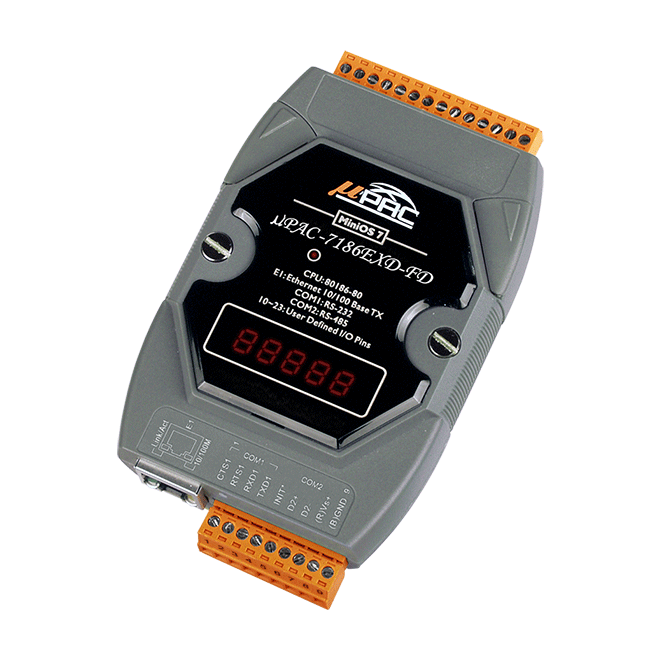

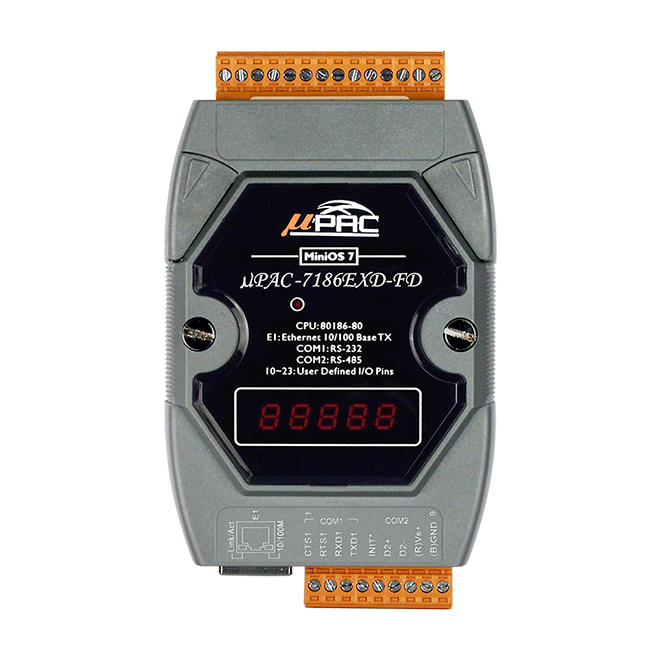

Ethernet PAC with 80186-80 CPU, MiniOS7, 64MB NAND Flash, 7-Segment LED Display (Gray Cover)
uPAC-7186EXD-FD-G
uPAC-7186EXD-FD-G
uPAC-7186EXD-FD-G
uPAC-7186EXD-FD-G
uPAC-7186EXD-FD-G
uPAC-7186EXD-FD-G

Features

  • Built-in High Performance MiniOS7 from ICP DAS
  • Easy-to-use Software Development Tool Kits (Using C language)
  • Various Storage Media
  • Various Communication Interfaces
    • 10/100 Base-TX Ethernet
    • RS-232/RS-485
  • 64-bit Hardware Serial Number
  • I/O Expansion Bus Interface
  • 5-Digital 7-SEG LED Display
  • Build-in Watchdog Timer
CE FCC RoHS WEEE

Introduction

The uPAC-7186EXD-FD is a palm-size programmable automation controller with RS-232/485 and Ethernet communication interfaces. ICP DAS provides easy-to-use software development tool kits (MiniOS7 framework, Modbus libraries). Users can use them to easily integrate serial devices to have Ethernet/Internet communication ability and through the standard Modbus protocol to communicate with SCADA software (Indusoft, ISaGARF, DasyLab, Trace Mode, Citect, iFix, etc.).

For hardware expansion, the uPAC-7186EXD-FD also supports an I/O expansion bus. A cost-effective I/O expansion board with A/D, D/A, D/I, D/O and serial ports is available. Nearly all kinds of I/O functions can be implemented by this bus. But the bus can support only one board. There are more than 50 boards available for uPAC-7186EXD-FD, you can choose one of them to expand hardware features.

Applications

Ordering Information

PRODUCT SERIES DESCRIPTION QNT. INQUIRY
PRODUCT SERIES uPAC-7186EXD-FD-G     CR DESCRIPTIONEthernet PAC with 80186-80 CPU, MiniOS7, 64MB NAND Flash and 7-Segment LED Display (Gray Cover) (RoHS)
This combination include other products.

Similar Products

Software
OS MiniOS7
Development C Language
CPU Module
CPU 80186 or compatible, 16-bit and 80 MHz
64-bit Hardware Serial Number Yes
EEPROM 16 KB
Flash 512 KB
NAND Flash 64 MB
NVRAM 31 Bytes
SRAM 512 KB
Real Time Clock Provide seconds, minutes, hours, day of week, month, year
Watchdog Timer Yes
Display
Type 5 x Digit 7 Segment LED Display
LED Indicators
Status 1 x System
1 x PoE
I/O Expansion
I/O Type X-board
Ethernet
Ports 1 x RJ-45, 10/100 Base-TX
COM Ports
Ports 1 x RS-232
1 x RS-485
Baud Rate 115200 bps Max.
Power
Input Range +10 ~ 30 VDC
Consumption 3.0 W
Mechanical
Dimensions (mm) 72 x 123 x 35 (W x H x D)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +80 °C
Humidity 5 ~ 90 % RH, Non-condensing
