ICP DAS provides various sensors for fumes, particulate matters (PM2.5), gas, air quality/pollution (CO, CO2, NH3, H2S, HCHO, TVOC) monitoring and illuminance, liquid leakage detection in smart manufacturing, smart building and IIoT applications. A free Utility is included to confi gurate and display data in a powerful chart for the CL-200. DL-300 and DL-1000 series. Various communication interfaces are supported, so that those devices can be to be easily integrated into existing HMI or SCADA systems.
| Product | DL-10 Series | DL-100 Series | iSN Series | CL-200 Series | DL-300 Series | DL-1000 Serie |
|---|---|---|---|---|---|---|
Sensor |
||||||
| PM2.5 |  |
|
||||
| PM1/PM10 | |
|||||
| CO/CO2 | |
|
|
|||
| NH3/H2S | |
|
|
|||
| HCHO/TVOC | |
|
|
|||
| Illuminance | |
|
||||
| Temperature | |
|
|
|
|
|
| Humidity | |
|
|
|
|
|
Interface |
||||||
| RS-485 | |
|
|
|
|
|
| Ethernet/PoE | |
|
|
|
|
|
| Wi-Fi | |
|
|
|
|
|
| ZigBee | |
|||||
| Product | DL-10 Series | DL-100 Series | iSN Series | CL-200 Series | DL-300 Series | DL-1000 Serie |
Protocol |
||||||
| DCON | |
|
|
|
|
|
| Modbus RTU | |
|
|
|
|
|
| Modbus TCP | |
|
|
|
||
| MQTT | |
|
|
|||
Function |
||||||
| LCD Display | |
|
||||
| Data Logger | |
|
|
|
||
|
|
||||||||||||||
|
DL-10/DL-100 Series: Temperature (T.)/Humidity (RH)/Illuminance (I.)
|
||||||||||||||
| Series | Model | Sensor | DO | Interface | Protocol | Cover Color | IP Code | Power Source | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T. | RH | Lux | ||||||||||||
DL-10 |
DL-10 | Yes | Accuracy 3% RH |
– | – | RS-485 | Modbus RTU | White | – | +10 ~ +30 VDC | ||||
| DL-10-BK | Black | |||||||||||||
| DL-11 | White | |||||||||||||
DL-100T(M)485S |
DL-100TM485S
|
Yes | Accuracy 3% RH |
– | – | Black | IP66 | |||||||
| DL-100TM485S-W | White | |||||||||||||
| DL-100TM485PS | Accuracy 1.8% RH |
Black | ||||||||||||
| DL-100TM485PS-W | White | |||||||||||||
| DL-100TMS-ZT | Accuracy 2% RH |
ZigBee | Black | |||||||||||
DL-100S-E |
DL-100S-E | Accuracy 3% RH |
Ethernet/PoE | Modbus TCP MQTT |
Black | PoE | ||||||||
| DL-100S-E-W | White | |||||||||||||
| DL-101S-WF | 2 DO | Wi-Fi | Modbus TCP HTTP |
Black | IP67 | +9 ~ +48 VDC | ||||||||
| DL-101S-E | Ethernet/PoE | Modbus TCP MQTT |
IP66 | PoE or +12 ~ +48 VDC |
||||||||||
| DL-101S-E-W | White | |||||||||||||
DL-110S-E |
DL-110S-E | Yes | – | RS485/Ethernet/PoE | Black | IP65 | PoE or +12 ~ +48 VDC |
|||||||
| DL-110S-E-W | White | |||||||||||||
| DL-111S-WF | 2 DO | Wi-Fi | Modbus TCP HTTP |
Black | IP67 | +9 ~ +48 VDC | ||||||||
DL-120-E |
DL-120-E | – | – | – | RS485/Ethernet/PoE | Modbus TCP MQTT |
Black | IP65 | PoE or +12 ~ +48 VDC |
|||||
| DL-120-E-W | White | |||||||||||||
|
|
|||||||||||
|
Industrial Sensor
|
|||||||||||
| Series | Model | Channel | Sensor | Interface | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
iSN-201 |
iSN-201-E | 1 |
Indoor Illuminance, Temperature and Humidity |
Ethernet, PoE, RS-485 | |||||||
| iSN-201-WF | Ethernet, PoE, RS-485, Wi-Fi | ||||||||||
|
|
||||||
|
Distance Measurement
|
||||||
| Series | Model | Channel | Range | Interface | Sensor Direction | Mounting |
|---|---|---|---|---|---|---|
iSN-301H |
iSN-301H | 1 | 5 cm~4 m | RS-485, Modbus RTU, DCON |
Horizontal | Wall Mounting |
| iSN-301H/DIN | DIN-Rail | |||||
iSN-301V |
iSN-301V | Vertical | Wall Mounting | |||
| iSN-301V/DIN | DIN-Rail | |||||
| Sensor | Range and Descriptions | Sensor | Range and Descriptions | |
|---|---|---|---|---|
| CO | 0 ~ 1000 ppm | H2S | 0 ~ 100 ppm | |
| CO2 | 0 ~ 9999 ppm (NDIR) | CH4 | 500 ~ 7000 PPM | |
| HCHO | 0 ~ 2000 ppb | PM2.5 | 0 ~ 400 μg/m3; Resolution: 1μg/m3 | |
| TVOC | 0 ~ 60000 ppb (MEMS) | Temperature | -10℃ ~ 50℃ / Accuracy: ±0.6℃ | |
| NH3 | 0 ~ 100 ppm | Humidity | 0 ~ 100 % RH / Accuracy: ±5% RH |
|
|
||||||||||
|
CO/CO2/HCHO/Temperature/Humidity
|
||||||||||
| Models | Accessory | Sensor Type | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| RS-485 | Ethernet/PoE | Wi-Fi | Filter | Particulate Matter |
Fumes | Humiture | ||||
| CL-201-E | CL-201-WF | - | - | CO | Temp RH | |||||
| CL-202-E | CL-202-WF | CO2 | ||||||||
| CL-203-E | CL-203-WF | CO + CO2 | ||||||||
| CL-204-E | CL-204-WF | HCHO + TVOC | ||||||||
| CL-205-E | CL-205-WF | NH3 | ||||||||
| CL-206-E | CL-206-WF | H2S | ||||||||
| CL-207-E | CL-207-WF | HCHO | ||||||||
| CL-208-E | CL-208-WF | TVOC | ||||||||
| CL-210-E | CL-210-WF | Replaceable Filter |
PM2.5 | - | Temp RH | |||||
| CL-211 | CL-211-E | CL-211-WF | CO | |||||||
| CL-212 | CL-212-E | CL-212-WF | CO2 | |||||||
| CL-213 | CL-213-E | CL-213-WF | CO + CO2 | |||||||
| CL-220-E | CL-220-WF | Replaceable Filter |
PM1 PM2.5 PM10 Particle (PM Sizes: 0.3μm, 0.5μm, 1μm, 2.5μm, 5μm, 10μm) |
- | Temp RH | |||||
| CL-221-E | CL-221-WF | CO | ||||||||
| CL-222-E | CL-222-WF | CO2 | ||||||||
| CL-223-E | CL-223-WF | CO + CO2 | ||||||||
| CL-224-E | CL-224-WF | HCHO + TVOC | ||||||||
| CL-225-E | CL-225-WF | NH3 | ||||||||
| CL-226-E | CL-226-WF | H2S | ||||||||
| CL-227-E | CL-227-WF | HCHO | ||||||||
| CL-228-E | CL-228-WF | TVOC | ||||||||
| CL-229-E | CL-229-WF | CO + CO2 + HCHO + TVOC | ||||||||
|
|
|||||||||||||
|
DL-300 Series (CO/CO2/H2S/NH3/HCHO/TVOC/Temperature/Humidity)
|
|||||||||||||
| Series | Basic Type (RS-485 + Ethernet/PoE) |
Wi-Fi | Type of Sensor | IP Code | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fume Sensor | Temperature | Humidity | |||||||||||
DL-30x |
DL-301 | DL-301-WF | CO | Yes | Yes | IP30 | |||||||
| DL-302 | DL-302-WF | CO2 | |||||||||||
| DL-303 | DL-303-WF | CO + CO2 | |||||||||||
DL-304  |
DL-304-WF |
HCHO + TVOC | |||||||||||
| DL-305 |
DL-305-WF |
NH3 | |||||||||||
| DL-306 |
DL-306-WF |
H2S | |||||||||||
| DL-307 |
DL-307-WF | HCHO | |||||||||||
| DL-308 |
DL-308-WF |
TVOC | |||||||||||
|
|
|||||||
|

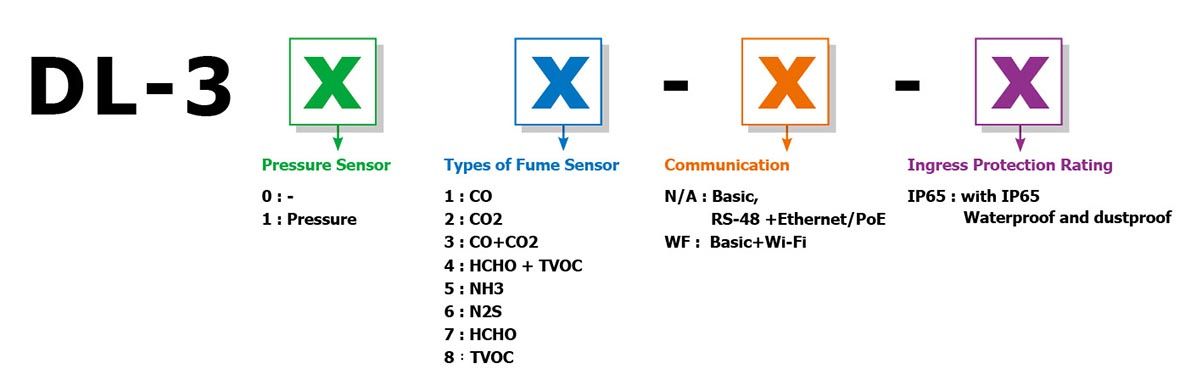

DL-300 Series (CO/CO2/H2S/NH3/HCHO/TVOC/Pressure/Temperature/Humidity)
|
|||||||
| Series | Basic Type (RS-485 + Ethernet/PoE) |
Wi-Fi | Type of Sensor | IP Code | |||
|---|---|---|---|---|---|---|---|
| Fume Sensor | Pressure | Temperature | Humidity | ||||
DL-30x-IP65 |
DL-301-IP65 | DL-301-WF-IP65 | CO | - | Yes | Yes | IP65 |
| DL-302-IP65 | DL-302-WF-IP65 | CO2 | |||||
| DL-303-IP65 | DL-303-WF-IP65 | CO + CO2 | |||||
| DL-304-IP65 | DL-304-WF-IP65 | HCHO + TVOC | |||||
| DL-305-IP43 | DL-305-WF-IP43 | NH3 | IP43 | ||||
| DL-306-IP65 | DL-306-WF-IP65 | H2S | IP65 | ||||
| DL-307-IP65 | DL-307-WF-IP65 | HCHO | |||||
| DL-308-IP65 | DL-308-WF-IP65 | TVOC | |||||
DL-31X-IP65 |
DL-311-IP65 | DL-311-WF-IP65 |
CO | Yes | |||
| DL-312-IP65 | DL-312-WF-IP65 |
CO2 | |||||
| DL-313-IP65 | DL-313-WF-IP65 |
CO + CO2 | |||||
| DL-314-IP65 |
DL-314-WF-IP65 |
HCHO + TVOC | |||||
| DL-315-IP43 |
DL-315WF-IP43 |
NH3 | IP43 | ||||
| DL-316-IP65 |
DL-316-WF-IP65 |
H2S | IP65 | ||||
| DL-317-IP65 |
DL-317-WF-IP65 |
HCHO | |||||
| DL-318-IP65 |
DL-318-WF-IP65 |
TVOC | |||||
|
|
|||||
|
|
|||||
| DL-102x Series | Type of Sensor | Communication | |||
|---|---|---|---|---|---|
| Basic | Wi-Fi | Particle | Gas Sensor | T & RH | |
| DL-1020 | DL-1020-WF  |
PM1 PM2.5 PM10 Particle (PM Sizes: 0.3μm, 0.5μm, 1μm, 2.5μm, 5μm, 10μm) |
- | Yes | Basic type: RS-485 + Ethernet/PoE WF type: Wi-Fi + RS-485 + Ethernet/PoE |
| DL-1021 | DL-1021-WF |
CO | |||
| DL-1022 | DL-1022-WF |
CO2 | |||
| DL-1023 | DL-1023-WF |
CO + CO2 | |||
| DL-1024 | DL-1024-WF |
HCHO + TVOC | |||
| DL-1025 | DL-1025-WF |
NH3 | |||
| DL-1026 | DL-1026-WF |
H2S | |||
| DL-1027 | DL-1027-WF |
HCHO | |||
| DL-1028 | DL-1028-WF |
TVOC | |||
|
|
|||||
|
|
|||||
| DL-103x Series | Type of Sensor | Communication | |||
|---|---|---|---|---|---|
| Basic | Wi-Fi | Particle | Gas Sensor | T & RH | |
| DL-1038 | DL-1038-WF | PM1 PM2.5 PM10 Particle (PM Sizes: 0.3μm, 0.5μm, 1μm, 2.5μm, 5μm, 10μm) + CO + CO2 |
TVOC | Yes | Basic type: RS-485 + Ethernet/PoE WF type: Wi-Fi + RS-485 + Ethernet/PoE |
|
|
|||||
|
|
|||||
| DL-105x Series | Type of Sensor | Communication | |||
|---|---|---|---|---|---|
| Basic | Wi-Fi | Particle | Gas Sensor | T & RH | |
| DL-1050 | DL-1050-WF |
O2 | - | Yes | Basic type: RS-485 + Ethernet/PoE WF type: Wi-Fi + RS-485 + Ethernet/PoE |
| DL-1051 | DL-1051-WF |
CO | |||
| DL-1052 | DL-1052-WF |
CO2 | |||
| DL-1053 | DL-1053-WF |
CO + CO2 | |||
| DL-1054 |
DL-1054-WF |
HCHO + TVOC | |||
| DL-1055 |
DL-1055-WF |
NH3 | |||
| DL-1056 |
DL-1056-WF |
H2S | |||
| DL-1057 |
DL-1057-WF |
HCHO | |||
| DL-1058 |
DL-1058-WF |
TVOC | |||
