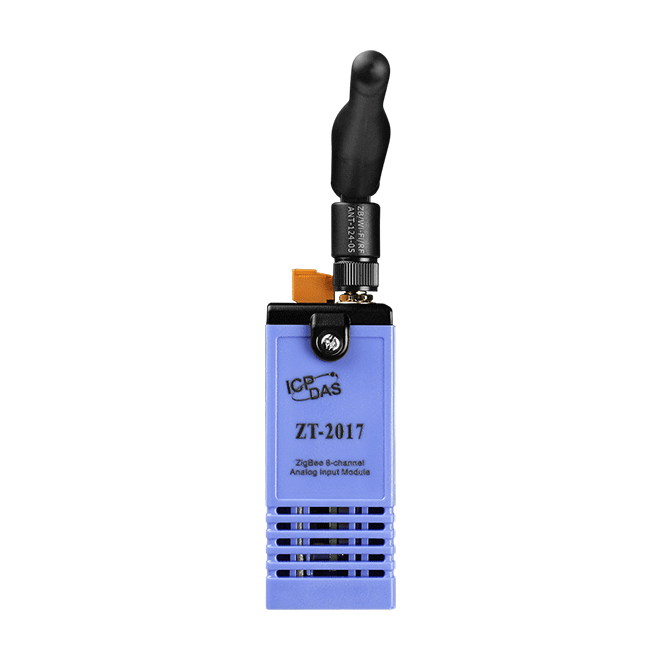

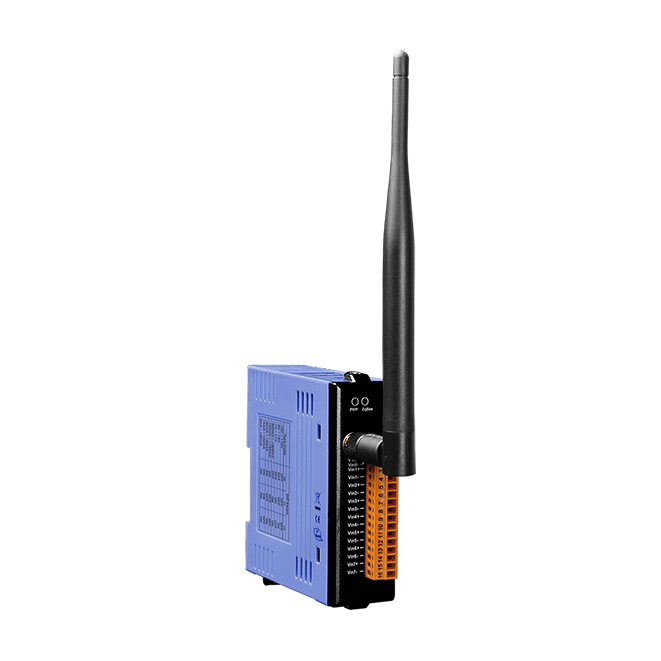

ZT-2017
ZigBee Wireless 8-ch Analog Input Module with High Voltage Protection (ZigBee Router) (Asia Only)
Features
- ISM 2.4 GHz Operating Frequency
- Fully Compliant with 2.4 G / ZigBee Specifications
- Wireless Transmission Range up to 700 m
- GUI Configuration Software (Windows Version)
- 8 Differential Analog Input Channels (mV, V)
- Individual Channel Configuration
- Overvoltage Protection up to 240 Vrms
- ±4 kV ESD Protections (Conact for each Terminal)
- DIN-Rail Mounting
Introduction

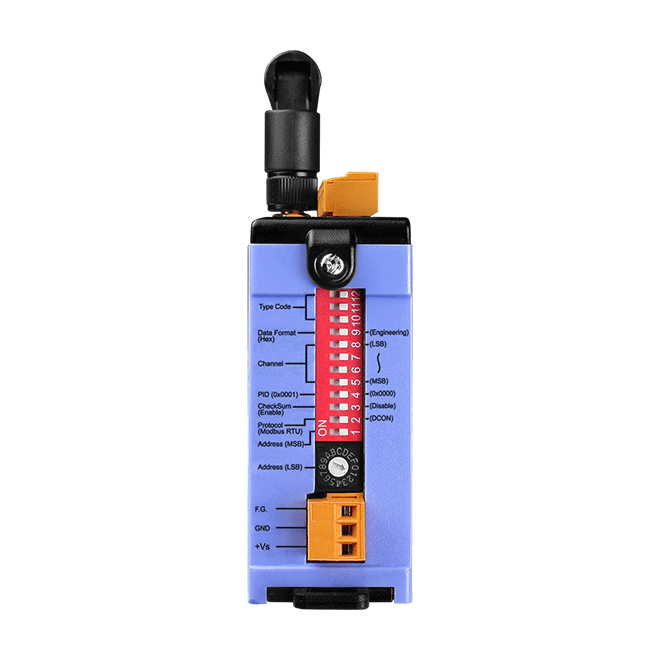

The ZT-2017 is a wireless 16-bit, 8-channel differential analog input ZigBee module that provides a programmable input range on all analog channels (±150 mV, ±500 mV, ±1 V, ±5 V or ±10 V). Each analog channel can be configured for an individual input range and has a high 240 Vrms overvoltage protection. Users can easily to configure the module address, protocol, checksum, ZT-PID, ZT-channel and type code settings using a combination of rotary and DIP switches.
Applications
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| CPU Module | |
|---|---|
| Watchdog Timer | Yes, Module (1.6 Seconds), Communication (Programmable) |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Power Line, Communication Line and each Channel, ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±3 kV for Power Line |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication |
| ZigBee | |
|---|---|
| Antenna | 2.4 GHz - 5 dBi Omni-directional Antenna |
| Certifications | FCC/FCC ID, CE (RED excluded) |
| Max. Slaves | 255 |
| Protocol | Supports DCON and Modbus RTU Protocols |
| Standard | ZigBee 2007 Pro |
| Transmission Power | 11 dBm (FCC Certificated) (Max. 19 dBm) |
| Transmission Distance (LoS) | 700 m (Typical) |
| Analog Input | |
|---|---|

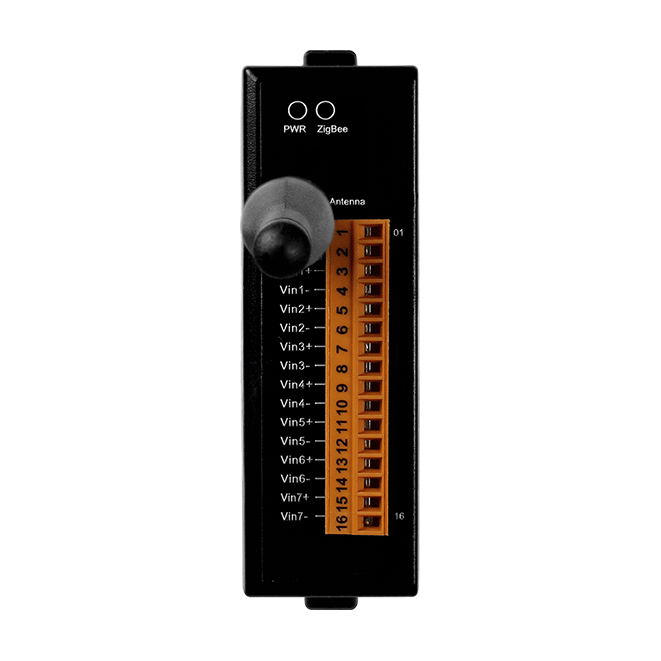

| Channels | 8 Differential |
| Type | ±10 V, ±5 V, ±1 V, ±500 mV, ±150 mV, ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA (Requires Optional External 125 Ω Resistor) |
| Resolution | 16-bit |
| Sampling Rate | 16-bit, 10 Samples/Sec. (Total) |
| Bandwidth | 15.7 Hz |
| Input Impedance | >2 MΩ |
| Common Mode Rejection | 86 dB |
| Normal Mode Rejection | 100 dB |
| Overvoltage Protection | 240 Vrms |
| Individual Channel Configuration | Yes |
| Intra-module Isolation | 3000 VDC |
| Analog Output | |
|---|---|
| Accuracy | ±0.1% of FSR |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | Max. 1.4 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 33 x 87 x 110 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 °C ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
