ZT-2005-C8

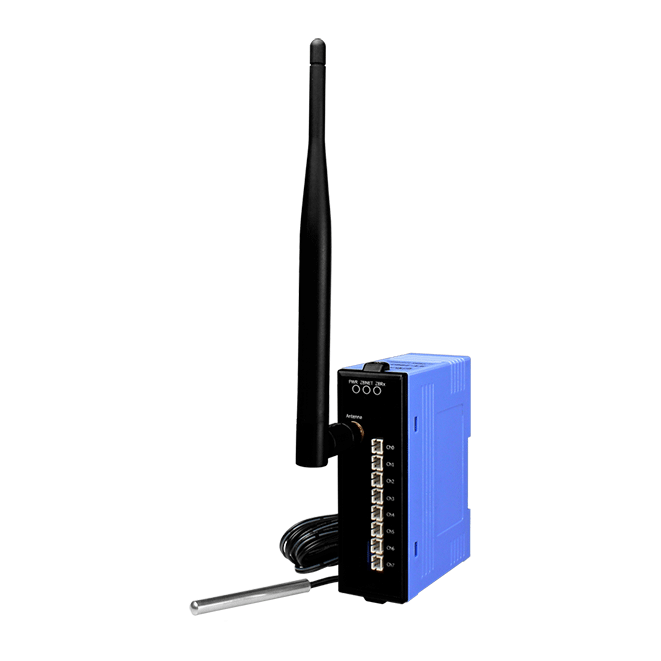

ZigBee Wireless 8-ch Thermistor Input Module (ZigBee Router)(Asia Only)
Features
- ISM 2.4 GHz Operating Frequency
- Fully Compliant with IEEE802.15.4/ZigBee Specifications (ZigBee Pro/ZigBee 2007)
- Wireless Transmission Range up to 700 meters (Line of Sight)
- Supports ZigBee Repeater Function
- Supports DCON and Modbus RTU protocols
- 8-Channel Thermistor Input
- Resolution: 12 bits
- Accuracy: ±1°C
- DIN-Rail Mountable
- Operating Temperatures, -25 °C ~ +75 °C
Introduction

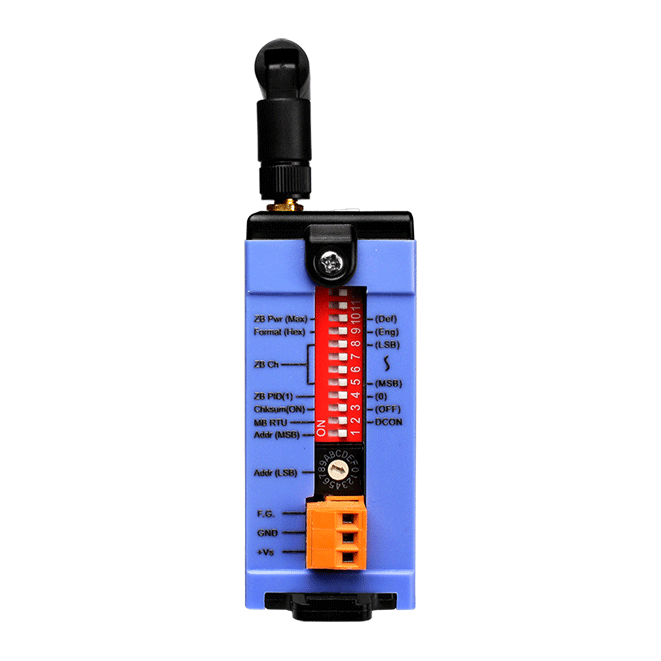

The ZT-2005-C8 is an 8-channel thermistor input module of ZigBee. It based on the IEEE802.15.4 standard that allows users to measuring temperature via a thermistor in a personal area ZigBee network. The typical transmission of ZT-2005-C8 is 700 meters (LOS, line of sight), with a transmission frequency range of between 2.405 GHz and 2.48 GHz, separated into 5 MHz sectors, providing 16 channels. Users can easily configure the module address, protocol, checksum, ZB-PID and ZB-channel settings using a combination of rotary and DIP switches. ZT-2005-C8 has 4 kV ESD protection and 1000 VDC intra-module isolation.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Isolation | |
|---|---|
| Intra-module Isolation | 1000 VDC |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Power Line, Communication Line and each Channel, ±8 kV Air for Random Point |
| Surge (IEC 61000-4-5) | ±3 kV for Power Line |
| LED Indicators | |
|---|---|
| Status | 1 x Communication 1 x RxD 1 x Power |
| ZigBee | |
|---|---|
| Antenna | 2.4 GHz - 5 dBi Omni directional |
| Certifications | CE/FCC |
| Encryption | AES-128 |
| Max. Slaves | 255 |
| Protocol | Supports DCON and Modbus RTU Protocols |
| Standard | ZigBee 2007 Pro |
| Transmission Power | 11 dBm (FCC Certificated) ( Max 19 dBm) |
| Transmission Distance (LoS) | 700 m (Typical) |
| Thermistor Input | |
|---|---|
| B Constant | R25/85=3435(K)±1% |
| Dissipation Factor | ≧3(mW/°C) |
| Measuring Temperature Range | -40 ~ 105°C |
| Pipe | φ6x60mm, stainless stell (SUS304) |
| Resistance | R25=10K(Ω)±1% |
| Thermal Time Constant | ≦15 (sec) |
| Wiring | 4.94m, UL2651 #24AWG*2C (TS) |
| Analog Input | |
|---|---|
| Channels | 8 |
| Type | Thermistor (Only CA-021) |
| Resolution | 12 bits |
| Accuracy | ±1°C |
| Sampling Rate | 10 Hz total |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 1 W(Max.) |
| Mechanical | |
|---|---|
| Dimensions (mm) | 33 x 87 x 110 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25°C ~ +75°C |
| Storage Temperature | -30°C ~ +80°C |
| Humidity | 10 ~ 90% RH (non-condensing) |
