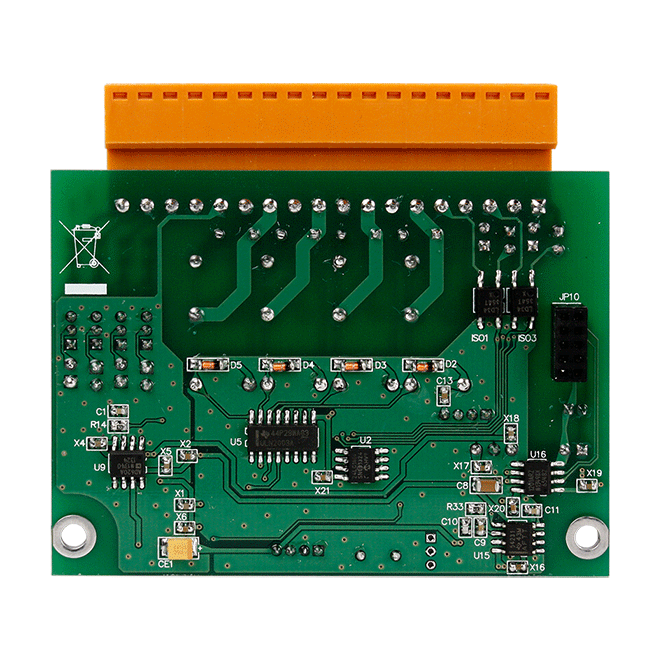

XV306
4-ch AI, 4-ch DI and 4-ch Power Relay Expansion Board
Features
- Multifunction (4 AI, 4 DI, 4 Relay)
- Individual Channel Configuration
- Jumper Selectable Voltage or Current Input/Output
- Digital Input Channels can be used as 32-bit Counters
- Open Wire Detection for Current Output
- Configurable Power-on Value Settings
- 120 VDC Overvoltage Protection for Analog Input
- 70 VDC Overvoltage Protection for Digital Input
Introduction
The XV306 is a multifunction expansion board that includes 4 Analog Input channels, 4 Digital Input channels and 4 Form A Relay Output channels. It provides a programmable input range on all Analog Input channels (+/-1 V, +/-2.5 V, +/-5 V, +/-10 V, +/-20 mA, 0 ~ +20 mA or +4 ~ +20 mA), and voltage and current outputs are jumper selectable. The Digital Input channels can be used as 32-bit counters. The XV306 also provides options for configuring power-on values for the Digital Output. 4 kV ESD protection and 2000 VDC intra-module isolation are also provided to enhance noise immunity capabilities in industrial environments.
Applications
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| Isolation | |
|---|---|
| Intra-module Isolation | 2000 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ±4 kV Contact For Each Terminal ±8 kV Air For Random Terminal |
| Analog Input | |
|---|---|
| Channels | 4 |
| Type | ±1 V, ±2.5 V, ±5 V, ±10 V, ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA (Jumper Selectable) |
| Resolution | 16-bit |
| Accuracy | Normal Mode: ±0.1 % Fast Mode: ±0.5 % |
| Sampling Rate | Normal Mode: 10 Hz Fast Mode: 200 Hz |
| Input Impedance | 20 MΩ |
| Overvoltage Protection | 120 VDC |
| Individual Channel Configuration | Yes |
| Digital Input/Counter | |
|---|---|
| Channels | 4 |
| Type | Wet Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | +3.5 ~ +50 VDC |
| OFF Voltage Level | +1 VDC Max. |
| Max. Counts | 32-bit (0 ~ 4, 294, 967, 285) |
| Frequency | 50 Hz |
| Min. Pulse Width | 10 ms |
| Input Impedance | 10 KΩ, 0.5 W |
| Overvoltage Protection | 70 VDC |
| Relay Output | |
|---|---|
| Channels | 4 |
| Type | Power Relay (Form A) |
| Contact Material | Silver Cadmium Alloy |
| Contact Rating | 6 A @ 35 VDC 6 A @ 240 VAC |
| Operate Time | 5 ms (typical) |
| Release Time | 1 ms (typical) |
| Electrical Endurance | 1 x 10^5 ops. |
| Mechanical Endurance | 30 x 10^6 ops. |
| Power on Value | Yes |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 |
| Baud Rate | 115200 bps |
| Data Format | N, 8, 1 |
| Protocol | Modbus/RTU |
| Power | |
|---|---|
| Consumption | 1.6 W Max. |
| Powered from Terminal Block | 5 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 59 mm x 82 mm x 13 mm (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
