PROFI-2510
Isolated PROFIBUS Repeater
Features
- Support for PROFIBUS DP protocol
- Detect transmission rate automatically(Max. 12Mbps)
- Network Isolation Protection
- 3000VDC isolation protection on PROFIBUS side
- 4KV ESD Protection (contact for any terminal)
Introduction

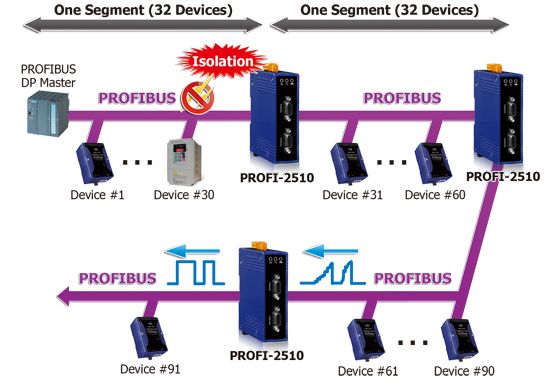

The PROFI-2510 is a PROFIBUS repeater used to establish a physical coupling of two or more segments of a PROFIBUS system. It supports transmission rate of 9.6Kbps to 12Mbps and detects the rate automatically. Users can extend the transmission of an existing network and increase the maximum number of bus nodes by using PROFI-2510. Anyway the PROFI-2510 can link easily and fast between two PROFIBUS segments.
Applications
- Industrial Automation
- Factory Automation
- Process Automation
- Etc…
Ordering Information
| PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
|---|---|---|---|
This combination include other products.
Similar Products
| LED Indicators | |
|---|---|
| Status | PWR LED, TxD LED, RxD LED |
| PROFIBUS | |
|---|---|
| Transceiver | ADI ADM2486 |
| Baud Rate | 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic |
| Power | |
|---|---|
| Consumption | 1 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 33.0 x 126.8 x 104.5 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75℃ |
| Storage Temperature | -30 ~ +85 ℃ |
| Humidity | 5 ~ 95% RH, Non-condensing |
