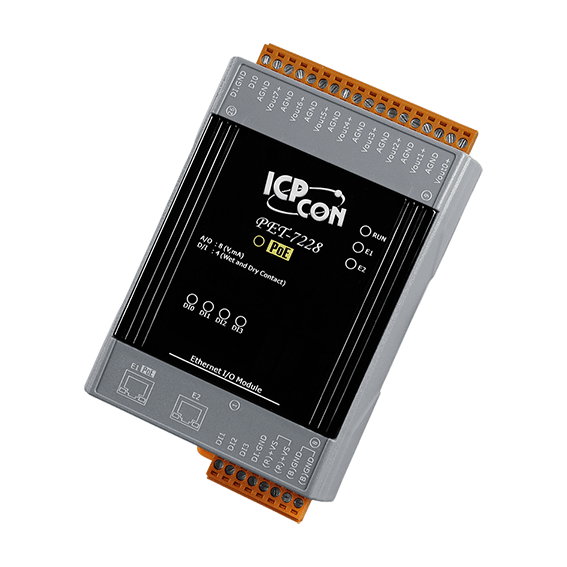

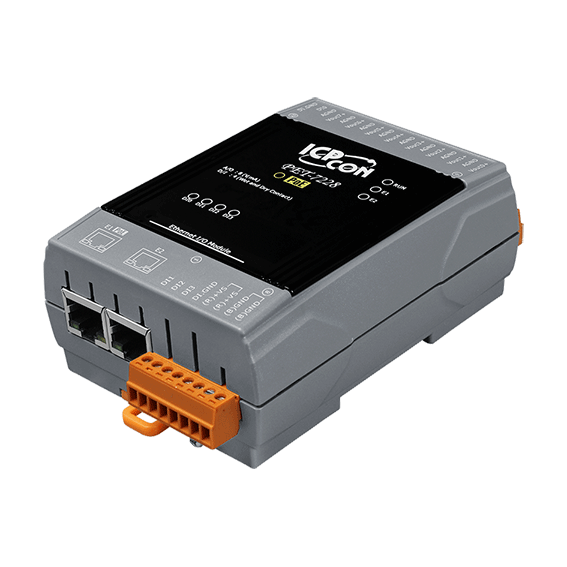

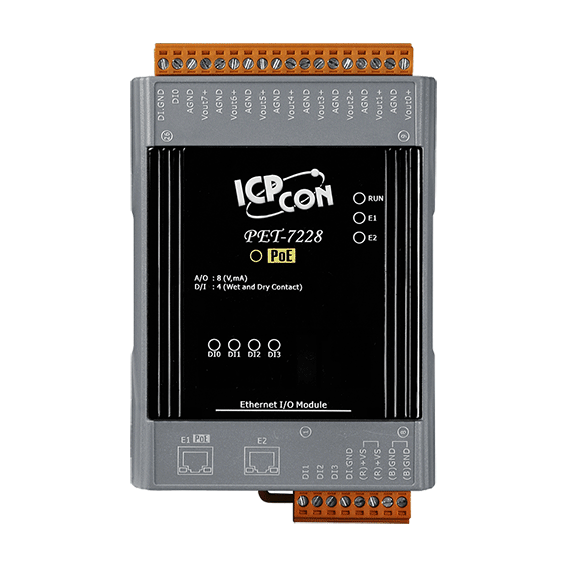

PET-7228
Introduction
The PET-7228 is a multifunction module with 8 channels analog output. It provides a variety of programmable analog output options (+/-5 V, +/-10 V, 0 ~ 20 mA and 4 ~ 20 mA), and each analog output can be programmed to accept either current or voltage as output depending upon the position of corresponding jumper.
Applications
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.
Ordering Information
PRODUCT SERIES | DESCRIPTION | QNT. | INQUIRY |
---|---|---|---|
This combination include other products.
Similar Products
Software | |
---|---|
Built-in Web Server | Yes |
CPU Module | |
---|---|
Watchdog Timer | Module, Communication (Programmable) |
Isolation | |
---|---|
2-way Isolation | I/O: 2500 VDC |
EMS Protection | |
---|---|
EFT (IEC 61000-4-4) | ±4 kV for Power Line |
ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal ±8 kV Air for Random Point |
LED Indicators | |
---|---|
Status | Run, Ethernet, I/O, PoE |
Analog Output | |
---|---|
Channels | 8 |
Type | Voltage Current |
Range | +0 to +5 VDC, ±5 VDC, +0 to +10 VDC, ±10 VDC 0 to 20 mA, 4 to 20 mA (Jumper Selectable) |
Resolution | 12-bit |
Accuracy | ±0.1% of FSR |
Open Wire Detection | For 4 to 20 mA only |
Voltage Output Capability | 10 V @ 10 mA |
Current Load Resistance | 500 Ω |
Individual Channel Configuration | Yes |
Power-on Value | Programmable |
Safe Value | Programmable |
Ethernet | |
---|---|
Ports | 2 x RJ-45, 10/100 Base-TX, Swtich Ports |
PoE | Yes |
LAN bypass | Yes |
Access Control | ID, Password and IP Filter |
Protocol | Modbus TCP, Modbus UDP |
Power | |
---|---|
Reverse Polarity Protection | Yes |
Consumption | 6.0 W (max.) |
Powered from PoE | IEEE 802.3af, Class1 |
Powered from Terminal Block | +12 to +48 VDC |
Mechanical | |
---|---|
Dimensions (mm) | 76 x 120 x 38 (W x L x H) |
Installation | DIN-Rail mounting |
Environment | |
---|---|
Operating Temperature | -25 ~ +75 °C |
Storage Temperature | -30 ~ +80 °C |
Humidity | 10 to 90% RH, Non-condensing |
